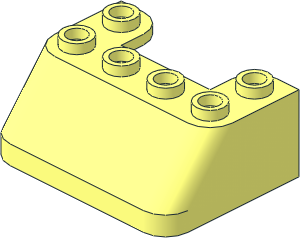

Windscreen 3 x 4 x 1.333 with 6 Studs on Top
File Header:
0 Windscreen 3 x 4 x 1.333 with 6 Studs on Top 0 Name: 4866.dat 0 Author: Takeshi Takahashi [RainbowDolphin] 0 !LDRAW_ORG Part UPDATE 2024-08 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2003-02-18 [pneaster] Fixed L3p errors, Added BFC 0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02 0 !HISTORY 2007-07-09 [PTadmin] Header formatted for Contributor Agreement 0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01 0 !HISTORY 2022-01-02 [RainbowDolphin] Replaced 1-4disc with 1-4chrd, eliminated T-junctions 0 !HISTORY 2024-08-25 [RainbowDolphin] Total rewrite for CC-BY-4, original by Lutz Uhlmann [El-Lutzo] 0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
1 16 0 28 -20 1 0 0 0 -1 0 0 0 1 stug3-1x3.dat 2 24 36 32 -14 -36 32 -14 2 24 -36 32 -14 -36 32 -20 2 24 -30 32 -26 30 32 -26 2 24 36 32 -20 36 32 -14 2 24 36 28 -14 -36 28 -14 2 24 -36 28 -14 -36 28 -20 2 24 -30 28 -26 30 28 -26 2 24 36 28 -20 36 28 -14 2 24 36 28 -14 36 32 -14 2 24 -36 28 -14 -36 32 -14 2 24 40 32 30 36 32 30 2 24 36 32 30 36 32 -10 2 24 36 32 -10 -36 32 -10 2 24 -36 32 -10 -36 32 30 2 24 -36 32 30 -40 32 30 2 24 -40 32 30 -40 32 -20 2 24 -30 32 -30 30 32 -30 2 24 40 32 -20 40 32 30 2 24 36 24 -10 -36 24 -10 2 24 -36 24 -10 -36 24 -20 2 24 -30 24 -26 30 24 -26 2 24 36 24 -20 36 24 -10 2 24 30 24 -30 -30 24 -30 2 24 30 4 -9.33 -30 4 -9.33 2 24 36 4 30 30 4 30 2 24 20 4 20 20 4 10 2 24 36 4 -3.33 36 4 30 2 24 -36 4 30 -30 4 30 2 24 -20 4 20 -20 4 10 2 24 -36 4 -3.33 -36 4 30 2 24 40 0 30 30 0 30 2 24 20 0 20 20 0 10 2 24 -20 0 10 -20 0 20 2 24 -30 0 30 -40 0 30 2 24 -40 0 30 -40 0 0 2 24 -30 0 -10 30 0 -10 2 24 40 0 0 40 0 30 2 24 36 24 -10 36 32 -10 2 24 -36 24 -10 -36 32 -10 2 24 36 4 30 36 32 30 2 24 -36 4 30 -36 32 30 2 24 40 0 30 40 32 30 2 24 -40 0 30 -40 32 30 1 16 30 0 0 10 0 0 0 1 0 0 0 -10 1-4edge.dat 1 16 -30 0 0 -10 0 0 0 1 0 0 0 -10 1-4edge.dat 1 16 0 2 10 20 0 0 0 0 2 0 -1 0 rect.dat 4 16 36 32 -14 36 28 -14 -36 28 -14 -36 32 -14 4 16 -36 32 -14 -36 28 -14 -36 28 -20 -36 32 -20 4 16 -30 32 -26 -30 28 -26 30 28 -26 30 32 -26 4 16 36 32 -20 36 28 -20 36 28 -14 36 32 -14 0 BFC INVERTNEXT 1 16 30 28 -20 6 0 0 0 4 0 0 0 -6 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -30 28 -20 -6 0 0 0 4 0 0 0 -6 1-4cylo.dat 1 16 30 24 -20 10 0 0 0 8 0 0 0 -10 1-4cylo.dat 1 16 -30 24 -20 -10 0 0 0 8 0 0 0 -10 1-4cylo.dat 3 16 36 24 -10 36 32 30 36 32 -10 3 16 -36 24 -10 -36 32 -10 -36 32 30 4 16 36 24 -10 36 32 -10 -36 32 -10 -36 24 -10 4 16 -30 32 -30 30 32 -30 30 24 -30 -30 24 -30 3 16 40 24 -20 40 32 -20 40 32 30 3 16 -40 24 -20 -40 32 30 -40 32 -20 0 BFC INVERTNEXT 1 16 30 4 -3.33 6 0 0 0 20 0 0 -16.67 -6 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -30 4 -3.33 -6 0 0 0 20 0 0 -16.67 -6 1-4cylo.dat 1 16 30 0 0 10 0 0 0 24 0 0 -20 -10 1-4cyli.dat 1 16 -30 0 0 -10 0 0 0 24 0 0 -20 -10 1-4cyli.dat 3 16 40 32 30 36 32 30 40 0 30 4 16 36 32 30 36 24 -10 36 4 -3.33 36 4 30 3 16 36 24 -10 36 24 -20 36 4 -3.33 4 16 30 24 -26 -30 24 -26 -30 4 -9.33 30 4 -9.33 3 16 -36 24 -20 -36 24 -10 -36 4 -3.33 4 16 -36 24 -10 -36 32 30 -36 4 30 -36 4 -3.33 3 16 -36 32 30 -40 32 30 -40 0 30 4 16 -40 32 30 -40 24 -20 -40 0 0 -40 0 30 4 16 -30 24 -30 30 24 -30 30 0 -10 -30 0 -10 4 16 40 24 -20 40 32 30 40 0 30 40 0 0 1 16 30 0 20 -10 0 0 0 4 0 0 0 10 1-4cylo.dat 1 16 -30 0 20 10 0 0 0 4 0 0 0 10 1-4cylo.dat 4 16 36 4 30 30 4 30 30 0 30 40 0 30 4 16 -30 0 30 -30 4 30 -36 4 30 -40 0 30 4 16 20 4 20 20 4 10 20 0 10 20 0 20 4 16 -20 0 10 -20 4 10 -20 4 20 -20 0 20 4 16 -36 32 -14 -36 32 -10 36 32 -10 36 32 -14 4 16 -30 32 -30 -30 32 -26 30 32 -26 30 32 -30 1 16 30 28 -20 6 0 0 0 -1 0 0 0 -6 1-4chrd.dat 1 16 -30 28 -20 -6 0 0 0 -1 0 0 0 -6 1-4chrd.dat 4 16 -36 28 -20 -36 28 -14 36 28 -14 36 28 -20 4 16 -30 28 -26 -36 28 -20 36 28 -20 30 28 -26 1 16 30 24 -20 6 0 0 0 1 0 0 0 -6 1-4chrd.dat 1 16 -30 24 -20 -6 0 0 0 1 0 0 0 -6 1-4chrd.dat 4 16 36 24 -10 -36 24 -10 -36 24 -20 36 24 -20 4 16 36 24 -20 -36 24 -20 -30 24 -26 30 24 -26 1 16 30 4 20 -10 0 0 0 -1 0 0 0 10 1-4chrd.dat 1 16 -30 4 20 10 0 0 0 -1 0 0 0 10 1-4chrd.dat 1 16 30 4 -3.33 6 0 0 0 -1 0 0 0 -6 1-4chrd.dat 1 16 -30 4 -3.33 -6 0 0 0 -1 0 0 0 -6 1-4chrd.dat 4 16 30 4 -9.33 30 4 30 36 4 30 36 4 -3.33 4 16 -36 4 30 -30 4 30 -30 4 -9.33 -36 4 -3.33 4 16 30 4 -9.33 20 4 10 20 4 20 30 4 30 4 16 -20 4 20 -20 4 10 -30 4 -9.33 -30 4 30 1 16 30 0 20 -10 0 0 0 1 0 0 0 10 1-4chrd.dat 1 16 -30 0 20 10 0 0 0 1 0 0 0 10 1-4chrd.dat 1 16 30 0 0 10 0 0 0 1 0 0 0 -10 1-4chrd.dat 1 16 -30 0 0 -10 0 0 0 1 0 0 0 -10 1-4chrd.dat 4 16 40 0 30 30 0 30 30 0 -10 40 0 0 4 16 -30 0 -10 -30 0 30 -40 0 30 -40 0 0 4 16 20 0 20 20 0 10 30 0 -10 30 0 30 4 16 -30 0 -10 -20 0 10 -20 0 20 -30 0 30 1 16 30 32 -20 6 0 0 0 -1 0 0 0 -6 1-4ndis.dat 1 16 30 32 -20 10 0 0 0 -1 0 0 0 -10 1-8chrd.dat 1 16 30 32 -20 0 0 10 0 -1 0 -10 0 0 1-8chrd.dat 1 16 -30 32 -20 0 0 -6 0 -1 0 -6 0 0 1-4ndis.dat 1 16 -30 32 -20 0 0 -10 0 -1 0 -10 0 0 1-8chrd.dat 1 16 -30 32 -20 -10 0 0 0 -1 0 0 0 -10 1-8chrd.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug2-1x2.dat 1 16 30 0 10 1 0 0 0 1 0 0 0 1 stug2-2x1.dat 1 16 -30 0 10 1 0 0 0 1 0 0 0 1 stug2-2x1.dat 4 16 30 4 -9.33 -30 4 -9.33 -20 4 10 20 4 10 4 16 20 0 10 -20 0 10 -30 0 -10 30 0 -10 3 16 36 4 30 40 0 30 36 32 30 3 16 -40 0 30 -36 4 30 -36 32 30 4 16 -40 32 -20 -40 32 30 -36 32 30 -36 32 -10 3 16 -36 32 -20 -40 32 -20 -36 32 -14 3 16 -36 32 -14 -40 32 -20 -36 32 -10 4 16 36 32 30 40 32 30 40 32 -20 36 32 -10 3 16 36 32 -10 40 32 -20 36 32 -14 3 16 36 32 -14 40 32 -20 36 32 -20 4 16 36 32 -26 36 32 -20 40 32 -20 37.071 32 -27.071 4 16 36 32 -26 37.071 32 -27.071 30 32 -30 30 32 -26 4 16 -36 32 -26 -30 32 -26 -30 32 -30 -37.071 32 -27.071 4 16 -36 32 -26 -37.071 32 -27.071 -40 32 -20 -36 32 -20
