Official File parts/49949.dat
Part Attributes:
File Header:

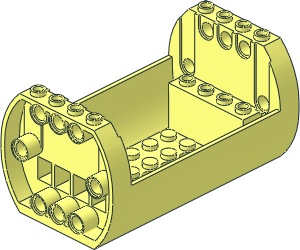

0 Cylinder 6 x 10 x 4.333 with Open Top Half and Eight Pin Holes on Ends
0 Name: 49949.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\49949s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\49949s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\49949s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\49949s01.dat
0 // Underside Centre
0 BFC INVERTNEXT
1 16 0 100 0 0 0 -37.5 0 4 0 -61 0 0 box4.dat
3 16 0 100 -48 37.5 100 -61 -37.5 100 -61
3 16 -8 100 0 -37.5 100 -61 -37.5 100 61
3 16 0 100 48 -37.5 100 61 37.5 100 61
3 16 8 100 0 37.5 100 61 37.5 100 -61
1 16 0 100 -40 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
1 16 0 100 20 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
1 16 0 100 0 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
1 16 0 100 -20 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
1 16 0 100 40 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
1 16 -20 100 0 0 0 -1 0 -1 0 -1 0 0 stug4-1x5.dat
1 16 20 100 0 0 0 -1 0 -1 0 -1 0 0 stug4-1x5.dat
1 16 0 100 -40 0 0 -1 0 -1 0 -1 0 0 stud4h.dat
1 16 0 100 -20 0 0 -1 0 -1 0 -1 0 0 stud4h.dat
1 16 0 100 0 0 0 -1 0 -1 0 -1 0 0 stud4h.dat
1 16 0 100 20 0 0 -1 0 -1 0 -1 0 0 stud4h.dat
1 16 0 100 40 0 0 -1 0 -1 0 -1 0 0 stud4h.dat
0 // Underside - Cavity at Ends
3 16 37.5 100 -96 -37.5 100 -96 0 100 -88
3 16 0 84 -72 -35.5 84 -64 35.5 84 -64
0 BFC INVERTNEXT
1 16 0 102 -64 0 0 -37.5 -2 0 0 0 -32 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 0 92 -81 0 0 -35.5 8 0 0 0 17 0 box3u5p.dat
4 16 35.5 100 -64 -35.5 100 -64 -37.5 104 -64 37.5 104 -64
1 16 0 104 -62.5 0 0 -37.5 0 -1 0 -1.5 0 0 rect1.dat
4 16 40 104 -100 -40 104 -100 -37.5 104 -96 37.5 104 -96
3 16 -35.5 84 64 0 84 72 35.5 84 64
3 16 37.5 100 96 0 100 88 -37.5 100 96
0 BFC INVERTNEXT
1 16 0 102 64 0 0 -37.5 -2 0 0 0 32 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 0 92 81 0 0 -35.5 8 0 0 0 -17 0 box3u5p.dat
4 16 -35.5 100 64 35.5 100 64 37.5 104 64 -37.5 104 64
1 16 0 104 62.5 0 0 37.5 0 -1 0 1.5 0 0 rect1.dat
4 16 -40 104 100 40 104 100 37.5 104 96 -37.5 104 96
4 16 -37.5 104 61 -37.5 104 -61 -40 104 -100 -40 104 100
4 16 37.5 104 61 40 104 100 40 104 -100 37.5 104 -61
1 16 0 104 0 40 0 0 0 1 0 0 0 100 recte4.dat
0 // Gaps at Ends - Outside
3 16 0 98 -100 -4.3296 100.4525 -100 4.3296 100.4525 -100
4 16 40 104 -100 4.3296 100.4525 -100 -4.3296 100.4525 -100 -40 104 -100
4 16 1.5 60 -84 -1.5 60 -84 -1.5 80 -84 1.5 80 -84
3 16 -1.5 80 -84 0 81 -84 1.5 80 -84
3 16 -1.5 60 -84 1.5 60 -84 0 19 -84
3 16 -40 0 -100 0 2 -100 40 0 -100
0 BFC INVERTNEXT
1 16 0 10 -82 -6 0 0 0 0 -6 0 -16 0 4-4cyli.dat
1 16 0 90 -100 1 0 0 0 0 -1 0 1 0 peghole.dat
0 BFC INVERTNEXT
1 16 0 90 -82 -6 0 0 0 0 -6 0 -16 0 4-4cyli.dat
1 16 0 10 -100 1 0 0 0 0 -1 0 1 0 peghole.dat
3 16 0 98 100 4.3296 100.4525 100 -4.3296 100.4525 100
4 16 -40 104 100 -4.3296 100.4525 100 4.3296 100.4525 100 40 104 100
4 16 -1.5 60 84 1.5 60 84 1.5 80 84 -1.5 80 84
3 16 1.5 80 84 0 81 84 -1.5 80 84
3 16 1.5 60 84 -1.5 60 84 0 19 84
3 16 40 0 100 0 2 100 -40 0 100
1 16 0 90 100 -1 0 0 0 0 -1 0 -1 0 peghole.dat
0 BFC INVERTNEXT
1 16 0 90 82 6 0 0 0 0 -6 0 16 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 10 82 -6 0 0 0 0 -6 0 16 0 4-4cyli.dat
1 16 0 10 100 1 0 0 0 0 -1 0 -1 0 peghole.dat
0 // Inside - Centre Bottom
4 16 -41.0648 96 -80 -40 96 -60 -40 96 60 -41.0648 96 80
4 16 40 96 60 40 96 -60 41.0648 96 -80 41.0648 96 80
3 16 6 96 0 40 96 -60 40 96 60
3 16 -6 96 0 -40 96 60 -40 96 -60
3 16 0 96 -46 -40 96 -60 40 96 -60
3 16 0 96 46 40 96 60 -40 96 60
1 16 0 96 -40 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
1 16 0 96 20 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
1 16 0 96 -20 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
1 16 0 96 0 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
1 16 0 96 40 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
1 16 0 96 50 0 0 -1 0 1 0 1 0 0 stug-4x1.dat
1 16 0 96 0 0 0 -1 0 1 0 1 0 0 stug-4x4.dat
1 16 0 96 -50 0 0 -1 0 1 0 1 0 0 stug-4x1.dat
0 // Inside at Ends
1 16 0 76 -60 40 0 0 0 0 20 0 -1 0 rect.dat
4 16 -34.856734 56 -78 34.856734 56 -78 40 56 -60 -40 56 -60
1 16 0 56 -79 -34.856734 0 0 0 1 0 0 0 -1 rect3.dat
3 16 0 4 -82 -8 0 -82 8 0 -82
3 16 0 18 -80 32 50 -80 -32 50 -80
4 16 -34.856734 56 -80 -34.3432 55.6568 -80 34.3432 55.6568 -80 34.856734 56 -80
4 16 32.6088 53.0616 -80 34.3432 55.6568 -80 -34.3432 55.6568 -80 -32.6088 53.0616 -80
4 16 32.6088 53.0616 -80 -32.6088 53.0616 -80 -32 50 -80 32 50 -80
2 24 -8 0 -82 8 0 -82
1 16 0 56 -70 0 0 -1 0 1 0 1 0 0 stug2-4x1.dat
4 16 8 0 -82 -8 0 -82 -40 0 -100 40 0 -100
2 24 40 0 -100 -40 0 -100
1 16 0 0 -90 0 0 -1 0 1 0 1 0 0 stug2-4x1.dat
4 16 34.856734 56 78 -34.856734 56 78 -40 56 60 40 56 60
1 16 0 56 79 34.856734 0 0 0 1 0 0 0 1 rect3.dat
1 16 0 76 60 -40 0 0 0 0 20 0 1 0 rect.dat
4 16 34.856734 56 80 34.3432 55.6568 80 -34.3432 55.6568 80 -34.856734 56 80
3 16 0 4 82 8 0 82 -8 0 82
3 16 0 18 80 -32 50 80 32 50 80
4 16 -32.6088 53.0616 80 -34.3432 55.6568 80 34.3432 55.6568 80 32.6088 53.0616 80
4 16 -32.6088 53.0616 80 32.6088 53.0616 80 32 50 80 -32 50 80
2 24 -8 0 82 8 0 82
1 16 0 56 70 0 0 -1 0 1 0 1 0 0 stug2-4x1.dat
4 16 -8 0 82 8 0 82 40 0 100 -40 0 100
2 24 40 0 100 -40 0 100
1 16 0 0 90 0 0 -1 0 1 0 1 0 0 stug2-4x1.dat
0 // Curved Surfaces
1 16 42.0079965 94.9415944 0 -.9431475 0 0 1.0584056 1 0 0 0 -80 rect1.dat
0 BFC INVERTNEXT
1 16 -7.16 56 80 63.16 0 0 0 0 62.226 0 -160 0 48\5-48cylo.dat
1 16 58 52 0 0 0 -2 0 -4 0 -80 0 0 box2-7.dat
1 16 60 52 0 0 -1 0 -4 0 0 0 0 80 rect1.dat
5 24 56 56 80 56 56 -80 55.456824 64.120493 -80 56 48 -80
1 16 -8.284 56 80 68.284 0 0 0 0 67.883 0 -160 0 48\1-8cyli.dat
1 16 -42.0079965 94.9415944 0 .9431475 0 0 1.0584056 1 0 0 0 -80 rect1.dat
0 BFC INVERTNEXT
1 16 7.16 56 80 -63.16 0 0 0 0 62.226 0 -160 0 48\5-48cylo.dat
1 16 -58 52 0 0 0 2 0 -4 0 -80 0 0 box2-7.dat
1 16 -60 52 0 0 1 0 -4 0 0 0 0 80 rect1.dat
5 24 -56 56 80 -56 56 -80 -55.456824 64.120493 -80 -56 48 -80
1 16 8.284 56 80 -68.284 0 0 0 0 67.883 0 -160 0 48\1-8cyli.dat
