Official File parts/50018c.dat
Part Attributes:
File Header:

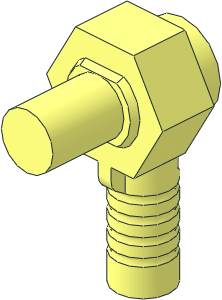

0 Minifig Tool Hexagonal with Hollow Stud with Perpendicular Bar and Ribbed Handle
0 Name: 50018c.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2022-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !KEYWORDS hexagonal, Minifig Accessory Pack #11, tool
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
Show contents
0 // Bottom Bar
1 16 0 -17.5 -18 -4 0 0 0 0 -4 0 11 0 4-4cylc.dat
4 16 3.5355 -21.0355 -7 -3.5355 -21.0355 -7 -3.5355 -13.9645 -7 3.5355 -13.9645 -7
4 16 3.5355 -13.9645 -7 -3.5355 -13.9645 -7 -2.8405 -13.5 -7 2.8405 -13.5 -7
4 16 -2.8405 -21.5 -7 -3.5355 -21.0355 -7 3.5355 -21.0355 -7 2.8405 -21.5 -7
2 24 2.8405 -21.5 -7 3.5355 -21.0355 -7
2 24 2.8405 -21.5 -7 -2.8405 -21.5 -7
2 24 -2.8405 -21.5 -7 -3.5355 -21.0355 -7
2 24 -2.8405 -13.5 -7 -3.5355 -13.9645 -7
2 24 -2.8405 -13.5 -7 2.8405 -13.5 -7
2 24 2.8405 -13.5 -7 3.5355 -13.9645 -7
1 16 0 -17.5 -6 -.35355 0 -.35355 .35355 0 -.35355 0 -1 0 1-4con10.dat
1 16 0 -17.5 -6 .35355 0 .35355 -.35355 0 .35355 0 -1 0 1-4con10.dat
1 16 0 -17.5 -6 3.88909 0 3.88909 -3.88909 0 3.88909 0 1 0 1-4edge.dat
1 16 0 -17.5 -7 3.53553 0 3.53553 -3.53553 0 3.53553 0 1 0 1-4chrd.dat
1 16 0 -17.5 -7 -3.53553 0 -3.53553 3.53553 0 -3.53553 0 1 0 1-4chrd.dat
1 16 0 -17.5 -6 -3.88909 0 -3.88909 3.88909 0 -3.88909 0 1 0 1-4edge.dat
1 16 0 -17.5 -7 3.53553 0 3.53553 -3.53553 0 3.53553 0 1 0 1-4edge.dat
1 16 0 -17.5 -7 -3.53553 0 -3.53553 3.53553 0 -3.53553 0 1 0 1-4edge.dat
4 16 2.8405 -21.5 -7 2.9749 -22 -6 -2.9749 -22 -6 -2.8405 -21.5 -7
4 16 -2.9749 -22 -6 -3.8891 -21.3891 -6 -3.5355 -21.0355 -7 -2.8405 -21.5 -7
4 16 2.9749 -22 -6 2.8405 -21.5 -7 3.5355 -21.0355 -7 3.8891 -21.3891 -6
4 16 -2.8405 -13.5 -7 -2.9749 -13 -6 2.9749 -13 -6 2.8405 -13.5 -7
4 16 2.9749 -13 -6 3.8891 -13.6109 -6 3.5355 -13.9645 -7 2.8405 -13.5 -7
4 16 -2.9749 -13 -6 -2.8405 -13.5 -7 -3.5355 -13.9645 -7 -3.8891 -13.6109 -6
2 24 -2.9749 -22 -6 -2.8405 -21.5 -7
2 24 2.9749 -22 -6 2.8405 -21.5 -7
2 24 2.9749 -22 -6 3.8891 -21.3891 -6
2 24 -2.9749 -22 -6 2.9749 -22 -6
2 24 -2.9749 -22 -6 -3.8891 -21.3891 -6
2 24 2.9749 -13 -6 2.8405 -13.5 -7
2 24 -2.9749 -13 -6 -2.8405 -13.5 -7
2 24 -2.9749 -13 -6 -3.8891 -13.6109 -6
2 24 2.9749 -13 -6 -2.9749 -13 -6
2 24 2.9749 -13 -6 3.8891 -13.6109 -6
0 // Hexagonal Part
4 16 -9 -17.5 -6 9 -17.5 -6 4.5 -25.294 -6 -4.5 -25.294 -6
4 16 -1 -9.706 -6 1 -9.706 -6 9 -17.5 -6 -9 -17.5 -6
3 16 -4.5 -9.706 -6 -1 -9.706 -6 -9 -17.5 -6
3 16 1 -9.706 -6 4.5 -9.706 -6 9 -17.5 -6
1 16 -6.75 -13.603 -2 2.25 1 0 3.897 0 0 0 0 -4 rect.dat
1 16 -6.75 -21.397 -2 -2.25 1 0 3.897 0 0 0 0 -4 rect2p.dat
1 16 0 -25.294 -2 0 0 4.5 0 1 0 -4 0 0 rect.dat
1 16 6.75 -21.397 -2 -2.25 -1 0 -3.897 0 0 0 0 -4 rect2p.dat
1 16 6.75 -13.603 -2 2.25 -1 0 -3.897 0 0 0 0 -4 rect.dat
3 16 4.5 -9.706 2 3.382 -9.706 2 9 -17.5 2
3 16 -3.382 -9.706 2 -4.5 -9.706 2 -9 -17.5 2
4 16 -4.2426 -21.7426 2 -8.4853 -17.5 2 -9 -17.5 2 -4.5 -25.294 2
4 16 4.2426 -21.7426 2 -4.2426 -21.7426 2 -4.5 -25.294 2 4.5 -25.294 2
4 16 4.2426 -21.7426 2 4.5 -25.294 2 9 -17.5 2 8.4853 -17.5 2
4 16 8.4853 -17.5 2 9 -17.5 2 3.382 -9.706 2 0 -9.0147 2
4 16 -8.4853 -17.5 2 0 -9.0147 2 -3.382 -9.706 2 -9 -17.5 2
1 16 0 -17.5 2 4.24264 0 4.24264 -4.24264 0 4.24264 0 -1 0 3-4ndis.dat
1 16 0 -17.5 2 -1 0 0 0 0 -1 0 -1 0 stud2a.dat
1 16 0 -17.5 2 -6 0 0 0 0 -6 0 -1 0 4-4edge.dat
1 16 0 -17.5 2 -1 0 0 0 0 -1 0 -1 0 4-4ring3.dat
1 16 0 -17.5 2 -4 0 0 0 0 -4 0 1 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 -17.5 -2 -3 0 0 0 0 -3 0 4 0 4-4cylc.dat
0 // Handle
4 16 1 -9.706 -3.8011 3.382 -9.706 2 4.5 -9.706 2 4.5 -9.706 -6
4 16 -4.5 -9.706 2 -3.382 -9.706 2 -1 -9.706 -3.8011 -4.5 -9.706 -6
3 16 1 -9.706 -6 1 -9.706 -3.8011 4.5 -9.706 -6
3 16 -1 -9.706 -3.8011 -1 -9.706 -6 -4.5 -9.706 -6
2 24 -1 -9.706 -6 -4.5 -9.706 -6
2 24 1 -9.706 -6 4.5 -9.706 -6
2 24 -3.382 -9.706 2 -4.5 -9.706 2
2 24 4.5 -9.706 2 3.382 -9.706 2
0 // Handle Bottom Part
1 16 -1 -7.9 -4 0 2 0 0 0 2 -2 0 0 1-8cylo.dat
1 16 0 -8.803 -6 0 0 1 .903 0 0 0 1 0 rect2p.dat
4 16 -1 -6.4858 -5.4142 -1 -5.5 -3.8011 0 -5.6216 -4.0001 1 -6.4858 -5.4142
3 16 0 -5.6216 -4.0001 1 -5.5 -3.8011 1 -6.4858 -5.4142
2 24 -1 -6.4858 -5.4142 -1 -5.5 -3.8011
2 24 0 -5.6216 -4.0001 1 -5.5 -3.8011
2 24 0 -5.6216 -4.0001 -1 -5.5 -3.8011
2 24 1 -6.4858 -5.4142 1 -5.5 -3.8011
5 24 -1 -6.4858 -5.4142 1 -6.4858 -5.4142 -1 -7.1346 -5.8478 -1 -5.5 -3.8011
4 16 -1 -9.706 -6 -1 -9.706 -3.8011 -1 -5.5 -3.8011 -1 -7.9 -6
4 16 1 -9.706 -3.8011 1 -9.706 -6 1 -7.9 -6 1 -5.5 -3.8011
3 16 -1 -6.4858 -5.4142 -1 -7.9 -6 -1 -5.5 -3.8011
3 16 1 -7.9 -6 1 -6.4858 -5.4142 1 -5.5 -3.8011
1 16 -1 -7.9 -4 0 1 0 0 0 2 -2 0 0 1-8chrd.dat
1 16 1 -7.9 -4 0 -1 0 0 0 2 -2 0 0 1-8chrd.dat
2 24 1 -9.706 -3.8011 1 -5.5 -3.8011
2 24 -1 -5.5 -3.8011 -1 -9.706 -3.8011
2 24 1 -9.706 -3.8011 1 -9.706 -6
2 24 -1 -9.706 -6 -1 -9.706 -3.8011
0 // Handle Top Part
3 16 0 -9.0147 2 3.392 -7.3579 2 -3.392 -7.3579 2
3 16 3.382 -9.706 2 3.392 -7.3579 2 0 -9.0147 2
3 16 -3.382 -9.706 2 0 -9.0147 2 -3.392 -7.3579 2
1 16 0 -8.5319 2 -3.392 0 0 0 0 1.17405 0 -1 0 recte3.dat
3 16 3.6956 -9.706 1.5308 3.6954 -5.5 1.5307 3.392 -7.3579 2
3 16 3.392 -7.3579 2 3.382 -9.706 2 3.6956 -9.706 1.5308
4 16 2.8284 -5.5 2.8284 2.8284 -6.5884 2.8284 3.392 -7.3579 2 3.6954 -5.5 1.5307
3 16 -3.6955 -5.5 1.5307 -3.6956 -9.706 1.5308 -3.392 -7.3579 2
3 16 -3.382 -9.706 2 -3.392 -7.3579 2 -3.6956 -9.706 1.5308
4 16 -3.392 -7.3579 2 -2.8284 -6.5884 2.8284 -2.8284 -5.5 2.8284 -3.6955 -5.5 1.5307
2 24 2.8284 -6.5884 2.8284 3.392 -7.3579 2
2 24 -2.8284 -6.5884 2.8284 -3.392 -7.3579 2
3 16 0 -5.5 4 -2.8284 -6.5884 2.8284 2.8284 -6.5884 2.8284
4 16 2.8284 -6.5884 2.8284 -2.8284 -6.5884 2.8284 -3.392 -7.3579 2 3.392 -7.3579 2
1 16 0 -5.5 0 0 0 -4 0 -3.716 0 4 0 0 1-8cyls.dat
1 16 0 -5.5 0 0 0 4 0 -3.716 0 4 0 0 1-8cyls.dat
1 16 0 -9.216 0 0 0 -4 3.716 1 0 4 0 0 1-8edge.dat
1 16 0 -9.216 0 0 0 4 3.716 1 0 4 0 0 1-8edge.dat
1 16 0 -9.216 0 0 0 -4 3.716 1 0 4 0 0 1-8chrd.dat
1 16 0 -9.216 0 0 0 4 3.716 1 0 4 0 0 1-8chrd.dat
5 24 3.6956 -5.5 1.5308 3.6956 -9.706 1.5308 4.0001 -9.706 0 3.392 -9.7059 2
5 24 -3.6955 -5.497 1.5307 -3.6955 -9.706 1.5307 -4.0001 -9.706 0 -3.382 -9.706 2
1 16 0 -9.706 0 -3.69548 0 -1.53072 0 1 0 1.53072 0 -3.69548 5-8edge.dat
2 24 -3.382 -9.706 2 -3.6955 -9.706 1.5307
2 24 3.6956 -9.706 1.5308 3.382 -9.706 2
1 16 0 -9.706 0 -3.69548 0 -1.53072 0 4.209 0 1.53072 0 -3.69548 5-8cyli.dat
5 24 3.6956 -9.706 1.5308 3.392 -7.3579 2 3.6954 -5.5 1.5307 3.382 -9.706 2
5 24 3.6954 -5.5 1.5307 3.392 -7.3579 2 2.8284 -5.5 2.8284 3.6956 -9.706 1.5308
5 24 -3.392 -7.3579 2 -3.6956 -9.706 1.5308 -3.6955 -5.5 1.5307 -3.382 -9.706 2
5 24 -3.392 -7.3579 2 -3.6955 -5.5 1.5307 -3.6956 -9.706 1.5308 -2.8284 -5.5 2.8284
1 16 0 -5.5 0 -3.69548 0 -1.53072 0 1 0 1.53072 0 -3.69548 4-4edge.dat
1 16 0 7.5 0 0 0 1 1 0 0 0 -1 0 s\50018as01.dat
