Official File parts/50898.dat
Part Attributes:
File Header:

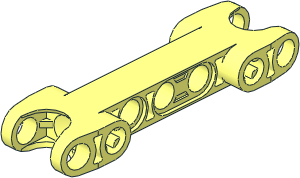

0 Constraction Connector 7 x 2 with Double Round Ball Sockets
0 Name: 50898.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Part UPDATE 2023-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
0 !HISTORY 2018-02-13 [cwdee] Update description
0 !HISTORY 2018-04-02 [MagFors] Used npeghol primitive
0 !HISTORY 2022-05-07 [PTadmin] Official Update 2022-03
0 !HISTORY 2022-07-13 [SwampKryakwa] Updated part to work with new npeghole primitives, improved detalisation of the beam segment, replaced part of npeghol6c's with singular npeghol7a's
0 !HISTORY 2023-03-05 [OrionP] Official Update 2023-01
Show contents
1 16 0 0 -40 1 0 0 0 1 0 0 0 1 s\50898s01.dat
1 16 0 0 40 -1 0 0 0 1 0 0 0 -1 s\50898s01.dat
1 16 -10 0 -10 0 4 0 1 0 0 0 0 -1 npeghol2.dat
1 16 -10 0 10 0 4 0 1 0 0 0 0 -1 npeghol2.dat
1 16 10 0 40 0 -4 0 -1 0 0 0 0 -1 npeghol6c.dat
1 16 10 0 40 0 -4 0 1 0 0 0 0 -1 npeghol6c.dat
1 16 10 0 30 0 -4 0 1 0 0 0 0 -1 npeghol7a.dat
1 16 10 0 -40 0 -4 0 -1 0 0 0 0 1 npeghol6c.dat
1 16 10 0 -40 0 -4 0 1 0 0 0 0 1 npeghol6c.dat
1 16 10 0 -30 0 -4 0 1 0 0 0 0 1 npeghol7a.dat
1 16 -10 0 40 0 4 0 1 0 0 0 0 -1 npeghol6c.dat
1 16 -10 0 40 0 4 0 -1 0 0 0 0 -1 npeghol6c.dat
1 16 -10 0 30 0 4 0 -1 0 0 0 0 -1 npeghol7a.dat
1 16 -10 0 -40 0 4 0 1 0 0 0 0 1 npeghol6c.dat
1 16 -10 0 -40 0 4 0 -1 0 0 0 0 1 npeghol6c.dat
1 16 -10 0 -30 0 4 0 -1 0 0 0 0 1 npeghol7a.dat
1 16 -10 0 -20 0 1 0 1 0 0 0 0 -1 peghole.dat
1 16 10 0 -20 0 -1 0 1 0 0 0 0 1 peghole.dat
1 16 -10 0 0 0 1 0 1 0 0 0 0 -1 peghole.dat
0 BFC INVERTNEXT
1 16 -8 0 -20 0 16 0 6 0 0 0 0 -6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -8 0 0 0 16 0 6 0 0 0 0 -6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -8 0 20 0 16 0 6 0 0 0 0 -6 4-4cyli.dat
1 16 -10 0 20 0 1 0 1 0 0 0 0 -1 peghole.dat
1 16 -10 0 20 0 1 0 1 0 0 0 0 -1 4-4ring8.dat
1 16 -10 0 0 0 1 0 1 0 0 0 0 -1 4-4ring8.dat
1 16 -10 0 -20 0 1 0 1 0 0 0 0 -1 4-4ring8.dat
1 16 10 0 -20 0 -1 0 1 0 0 0 0 1 4-4ring8.dat
1 16 8 0 0 0 -1 0 2 0 0 0 0 2 4-4ring3.dat
1 16 8 0 0 0 -1 0 3.061 0 7.391 7.391 0 -3.061 1-16cylo.dat
1 16 7 0 0 0 -1 0 3.061 0 7.391 7.391 0 -3.061 1-16tang.dat
1 16 8 0 0 0 -1 0 -3.061 0 -7.391 7.391 0 -3.061 1-16cylo.dat
1 16 7 0 0 0 -1 0 -3.061 0 -7.391 7.391 0 -3.061 1-16tang.dat
4 16 7 -4.531 6.782 7 -4.531 13.218 7 -5.657 14.343 7 -5.657 5.657
4 16 7 -5.657 5.657 7 -5.657 14.343 8 -5.657 14.343 8 -5.657 5.657
2 24 7 -5.657 5.657 8 -5.657 5.657
2 24 8 -5.657 5.657 8 -5.657 14.343
2 24 8 -5.657 14.343 7 -5.657 14.343
2 24 7 -5.657 5.657 7 -5.657 14.343
2 24 7 -3.061 7.391 7 -3.061 12.609
2 24 7 -3.061 12.609 8 -3.0616 12.6088
2 24 8 -3.0616 12.6088 8 -3.0616 7.3912
2 24 8 -3.0616 7.3912 7 -3.061 7.391
1 16 8 0 0 0 -1 0 0 0 8 8 0 0 1-16tang.dat
1 16 8 0 0 0 -1 0 0 0 -8 8 0 0 1-16tang.dat
1 16 8 0 0 0 -1 0 -8 0 0 0 0 8 1-8tang.dat
1 16 8 0 0 0 -1 0 8 0 0 0 0 8 1-8tang.dat
1 16 10 0 20 0 -1 0 1 0 0 0 0 1 2-4ring8.dat
1 16 10 0 0 0 -1 0 -1 0 0 0 0 -1 2-4ring8.dat
1 16 8 0 20 0 -1 0 2 0 0 0 0 2 4-4ring3.dat
1 16 8 0 20 0 -1 0 3.061 0 7.391 -7.391 0 3.061 1-16cylo.dat
1 16 7 0 20 0 -1 0 3.061 0 7.391 -7.391 0 3.061 1-16tang.dat
1 16 8 0 20 0 -1 0 -3.061 0 -7.391 -7.391 0 3.061 1-16cylo.dat
1 16 7 0 20 0 -1 0 -3.061 0 -7.391 -7.391 0 3.061 1-16tang.dat
4 16 7 4.531 13.218 7 4.531 6.782 7 5.657 5.657 7 5.657 14.343
4 16 7 5.657 14.343 7 5.657 5.657 8 5.657 5.657 8 5.657 14.343
2 24 7 5.657 5.657 8 5.657 5.657
2 24 8 5.657 5.657 8 5.657 14.343
2 24 8 5.657 14.343 7 5.657 14.343
2 24 7 5.657 5.657 7 5.657 14.343
2 24 7 3.061 7.391 7 3.061 12.609
2 24 7 3.061 12.609 8 3.0616 12.6088
2 24 8 3.0616 12.6088 8 3.0616 7.3912
2 24 8 3.0616 7.3912 7 3.061 7.391
1 16 8 0 20 0 -1 0 0 0 8 -8 0 0 1-16tang.dat
1 16 8 0 20 0 -1 0 0 0 -8 -8 0 0 1-16tang.dat
1 16 8 0 20 0 -1 0 -8 0 0 0 0 -8 1-8tang.dat
1 16 8 0 20 0 -1 0 8 0 0 0 0 -8 1-8tang.dat
1 16 8 0 20 0 -1 0 6 0 0 0 0 6 4-4edge.dat
1 16 8 0 0 0 -1 0 6 0 0 0 0 6 4-4edge.dat
1 16 8 0 20 0 -1 0 8 0 0 0 0 8 2-4edge.dat
4 16 10 -8 20 10 -9 20 10 -9 0 10 -8 0
4 16 10 9 20 10 8 20 10 8 0 10 9 0
1 16 9 8 10 0 0 1 0 1 0 -10 0 0 rect2p.dat
1 16 9 -8 10 0 0 1 0 -1 0 10 0 0 rect2p.dat
1 16 8 0 0 0 -1 0 -8 0 0 0 0 -8 2-4edge.dat
1 16 10 0 0 0 -1 0 -8 0 0 0 0 -8 2-4edge.dat
1 16 10 0 20 0 1 0 -8 0 0 0 0 8 2-4edge.dat
0 BFC INVERTNEXT
1 16 10 0 20 0 -2 0 -8 0 0 0 0 8 2-4cyli.dat
0 BFC INVERTNEXT
1 16 10 0 0 0 -2 0 8 0 0 0 0 -8 2-4cyli.dat
1 16 10 0 -10 0 -4 0 1 0 0 0 0 1 npeghol2.dat
1 16 0 9 0 0 0 10 0 -1 0 40 0 0 rect2p.dat
1 16 0 -9 0 0 0 -10 0 1 0 40 0 0 rect2p.dat
4 16 8 -3.0616 12.6088 8 -3.0616 7.3912 8 -1.5912 8 8 -1.5912 12
4 16 8 0 12 8 -1.5912 12 8 -1.5912 8 8 0 8
4 16 8 0 12 8 0 8 8 1.5912 8 8 1.5912 12
4 16 8 1.5912 12 8 1.5912 8 8 3.0616 7.3912 8 3.0616 12.6088
4 16 8 -8 18.4088 8 -8 1.5912 8 -7.3912 3.0616 8 -7.3912 16.9384
4 16 8 -6.7824 15.468 8 -7.3912 16.9384 8 -7.3912 3.0616 8 -6.7824 4.532
4 16 8 -6.7824 15.468 8 -6.7824 4.532 8 -5.6568 5.6568 8 -5.6568 14.3432
4 16 8 6.7824 15.468 8 5.6568 14.3432 8 5.6568 5.6568 8 6.7824 4.532
4 16 8 6.7824 15.468 8 6.7824 4.532 8 7.3912 3.0616 8 7.3912 16.9384
4 16 8 7.3912 3.0616 8 8 1.5912 8 8 18.4088 8 7.3912 16.9384
4 16 7 -4.5310699 13.2178329 7 -4.5310699 6.7821671 7 -3.061 7.391 7 -3.061 12.609
4 16 7 3.061 12.609 7 3.061 7.391 7 4.531 6.782 7 4.531 13.218
4 16 8 3.061 7.391 7 3.061 7.391 7 3.061 12.609 8 3.061 12.609
4 16 7 -3.061 12.609 7 -3.061 7.391 8 -3.0616 7.3912 8 -3.0616 12.6088
