Unofficial File parts/87580p02.dat
Part Attributes: Base Part: 87580.dat
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

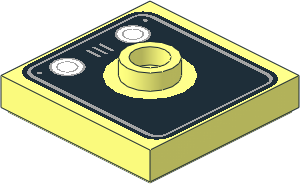

Plate 2 x 2 with Groove with 1 Centre Stud with with Two White Circles (Lights) and Grille on Black Square with Rounded Corners Pattern
File Header:
0 Plate 2 x 2 with Groove with 1 Centre Stud with with Two White Circles (Lights) and Grille on Black Square with Rounded Corners Pattern 0 Name: 87580p02.dat 0 Author: Bertrand Lequy [Berth] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS Bricklink 87580pb004, Rebrickable 87580pr0004, Set 40560
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3068bs01.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 stud2.dat 0 // Center 1 16 0 0 0 9 0 0 0 1 0 0 0 9 4-4disc.dat 1 0 0 0 0 9 0 0 0 1 0 0 0 9 4-4ndis.dat 0 // Bottom left rings 1 15 -13.4 0 -8.8 1.8 0 0 0 1 0 0 0 1.8 4-4disc.dat 1 0 -13.4 0 -8.8 3.5 0 0 0 1 0 0 0 3.5 4-4ndis.dat 1 71 -13.4 0 -8.8 .36 0 0 0 1 0 0 0 .36 4-4ring5.dat 4 15 -11.872664 0 -10.327336 -11.872664 0 -10.96 -11.2787 0 -10.9213 -11.24 0 -10.327336 3 15 -10.4 0 -8.8 -11.24 0 -8.8 -11.24 0 -10.327336 3 15 -10.4 0 -8.8 -11.24 0 -10.327336 -11.2787 0 -10.9213 3 15 -13.4 0 -10.96 -13.4 0 -11.8 -11.872664 0 -10.96 3 15 -11.872664 0 -10.96 -13.4 0 -11.8 -11.2787 0 -10.9213 1 15 -13.4 0 -8.8 2.16 0 0 0 1 0 0 0 -2.16 1-8tndis.dat 1 15 -13.4 0 -8.8 0 0 2.16 0 1 0 -2.16 0 0 1-8tndis.dat 1 15 -13.4 0 -8.8 3 0 0 0 1 0 0 0 -3 1-8chrd.dat 1 15 -13.4 0 -8.8 0 0 3 0 1 0 -3 0 0 1-8chrd.dat 1 15 -13.4 0 -8.8 -2.16 0 0 0 1 0 0 0 2.16 1-8tndis.dat 1 15 -13.4 0 -8.8 0 0 -2.16 0 1 0 2.16 0 0 1-8tndis.dat 1 15 -13.4 0 -8.8 -3 0 0 0 1 0 0 0 3 1-8chrd.dat 1 15 -13.4 0 -8.8 0 0 -3 0 1 0 3 0 0 1-8chrd.dat 4 15 -15.5213 0 -6.6787 -15.56 0 -7.272664 -14.927336 0 -7.272664 -14.927336 0 -6.64 3 15 -15.5213 0 -6.6787 -14.927336 0 -6.64 -13.4 0 -5.8 3 15 -13.4 0 -5.8 -14.927336 0 -6.64 -13.4 0 -6.64 3 15 -16.4 0 -8.8 -15.56 0 -8.8 -15.56 0 -7.272664 3 15 -16.4 0 -8.8 -15.56 0 -7.272664 -15.5213 0 -6.6787 1 15 -13.4 0 -8.8 -2.16 0 0 0 1 0 0 0 -2.16 1-8tndis.dat 1 15 -13.4 0 -8.8 0 0 -2.16 0 1 0 -2.16 0 0 1-8tndis.dat 1 15 -13.4 0 -8.8 -3 0 0 0 1 0 0 0 -3 1-8chrd.dat 1 15 -13.4 0 -8.8 0 0 -3 0 1 0 -3 0 0 1-8chrd.dat 3 15 -15.56 0 -8.8 -16.4 0 -8.8 -15.56 0 -10.327336 3 15 -15.56 0 -10.327336 -16.4 0 -8.8 -15.5213 0 -10.9213 3 15 -13.4 0 -11.8 -13.4 0 -10.96 -14.927336 0 -10.96 3 15 -13.4 0 -11.8 -14.927336 0 -10.96 -15.5213 0 -10.9213 4 15 -15.56 0 -10.327336 -15.5213 0 -10.9213 -14.927336 0 -10.96 -14.927336 0 -10.327336 1 15 -13.4 0 -8.8 2.16 0 0 0 1 0 0 0 2.16 1-8tndis.dat 1 15 -13.4 0 -8.8 0 0 2.16 0 1 0 2.16 0 0 1-8tndis.dat 1 15 -13.4 0 -8.8 3 0 0 0 1 0 0 0 3 1-8chrd.dat 1 15 -13.4 0 -8.8 0 0 3 0 1 0 3 0 0 1-8chrd.dat 3 15 -11.24 0 -8.8 -10.4 0 -8.8 -11.24 0 -7.272664 3 15 -11.24 0 -7.272664 -10.4 0 -8.8 -11.2787 0 -6.6787 4 15 -11.24 0 -7.272664 -11.2787 0 -6.6787 -11.872664 0 -6.64 -11.872664 0 -7.272664 3 15 -13.4 0 -5.8 -13.4 0 -6.64 -11.872664 0 -6.64 3 15 -13.4 0 -5.8 -11.872664 0 -6.64 -11.2787 0 -6.6787 1 71 -13.4 0 -8.8 .5 0 0 0 1 0 0 0 .5 4-4ring6.dat 0 // Top left rings 1 15 -13.4 0 8.8 1.8 0 0 0 1 0 0 0 1.8 4-4disc.dat 1 0 -13.4 0 8.8 3.5 0 0 0 1 0 0 0 3.5 4-4ndis.dat 1 71 -13.4 0 8.8 .36 0 0 0 1 0 0 0 .36 4-4ring5.dat 4 15 -11.872664 0 7.272664 -11.872664 0 6.64 -11.2787 0 6.6787 -11.24 0 7.272664 3 15 -10.4 0 8.8 -11.24 0 8.8 -11.24 0 7.272664 3 15 -10.4 0 8.8 -11.24 0 7.272664 -11.2787 0 6.6787 3 15 -13.4 0 6.64 -13.4 0 5.8 -11.872664 0 6.64 3 15 -11.872664 0 6.64 -13.4 0 5.8 -11.2787 0 6.6787 1 15 -13.4 0 8.8 2.16 0 0 0 1 0 0 0 -2.16 1-8tndis.dat 1 15 -13.4 0 8.8 0 0 2.16 0 1 0 -2.16 0 0 1-8tndis.dat 1 15 -13.4 0 8.8 3 0 0 0 1 0 0 0 -3 1-8chrd.dat 1 15 -13.4 0 8.8 0 0 3 0 1 0 -3 0 0 1-8chrd.dat 1 15 -13.4 0 8.8 -2.16 0 0 0 1 0 0 0 2.16 1-8tndis.dat 1 15 -13.4 0 8.8 0 0 -2.16 0 1 0 2.16 0 0 1-8tndis.dat 1 15 -13.4 0 8.8 -3 0 0 0 1 0 0 0 3 1-8chrd.dat 1 15 -13.4 0 8.8 0 0 -3 0 1 0 3 0 0 1-8chrd.dat 4 15 -15.5213 0 10.9213 -15.56 0 10.327336 -14.927336 0 10.327336 -14.927336 0 10.96 3 15 -15.5213 0 10.9213 -14.927336 0 10.96 -13.4 0 11.8 3 15 -13.4 0 11.8 -14.927336 0 10.96 -13.4 0 10.96 3 15 -16.4 0 8.8 -15.56 0 8.8 -15.56 0 10.327336 3 15 -16.4 0 8.8 -15.56 0 10.327336 -15.5213 0 10.9213 1 15 -13.4 0 8.8 -2.16 0 0 0 1 0 0 0 -2.16 1-8tndis.dat 1 15 -13.4 0 8.8 0 0 -2.16 0 1 0 -2.16 0 0 1-8tndis.dat 1 15 -13.4 0 8.8 -3 0 0 0 1 0 0 0 -3 1-8chrd.dat 1 15 -13.4 0 8.8 0 0 -3 0 1 0 -3 0 0 1-8chrd.dat 3 15 -15.56 0 8.8 -16.4 0 8.8 -15.56 0 7.272664 3 15 -15.56 0 7.272664 -16.4 0 8.8 -15.5213 0 6.6787 3 15 -13.4 0 5.8 -13.4 0 6.64 -14.927336 0 6.64 3 15 -13.4 0 5.8 -14.927336 0 6.64 -15.5213 0 6.6787 4 15 -15.56 0 7.272664 -15.5213 0 6.6787 -14.927336 0 6.64 -14.927336 0 7.272664 1 15 -13.4 0 8.8 2.16 0 0 0 1 0 0 0 2.16 1-8tndis.dat 1 15 -13.4 0 8.8 0 0 2.16 0 1 0 2.16 0 0 1-8tndis.dat 1 15 -13.4 0 8.8 3 0 0 0 1 0 0 0 3 1-8chrd.dat 1 15 -13.4 0 8.8 0 0 3 0 1 0 3 0 0 1-8chrd.dat 3 15 -11.24 0 8.8 -10.4 0 8.8 -11.24 0 10.327336 3 15 -11.24 0 10.327336 -10.4 0 8.8 -11.2787 0 10.9213 4 15 -11.24 0 10.327336 -11.2787 0 10.9213 -11.872664 0 10.96 -11.872664 0 10.327336 3 15 -13.4 0 11.8 -13.4 0 10.96 -11.872664 0 10.96 3 15 -13.4 0 11.8 -11.872664 0 10.96 -11.2787 0 10.9213 1 71 -13.4 0 8.8 .5 0 0 0 1 0 0 0 .5 4-4ring6.dat 0 // grille and dots 1 71 -15.1 0 1.7 0 0 -0.3 0 1 0 -0.3 0 0 2-4disc.dat 1 0 -11.8 0 1.7 0 0 0.3 0 1 0 -0.3 0 0 2-4ndis.dat 1 0 -15.1 0 1.7 0 0 -0.3 0 1 0 -0.3 0 0 2-4ndis.dat 1 71 -11.8 0 0 0 0 0.3 0 1 0 -0.3 0 0 2-4disc.dat 1 71 -11.8 0 -1.7 0 0 0.3 0 1 0 -0.3 0 0 2-4disc.dat 1 0 -11.8 0 0 0 0 0.3 0 1 0 -0.3 0 0 2-4ndis.dat 1 71 -15.1 0 0 0 0 -0.3 0 1 0 -0.3 0 0 2-4disc.dat 1 0 -15.1 0 0 0 0 -0.3 0 1 0 -0.3 0 0 2-4ndis.dat 1 71 -11.8 0 1.7 0 0 0.3 0 1 0 -0.3 0 0 2-4disc.dat 1 0 -11.8 0 -1.7 0 0 .3 0 1 0 -.3 0 0 2-4ndis.dat 1 0 -15.1 0 -1.7 0 0 -0.3 0 1 0 -0.3 0 0 2-4ndis.dat 1 71 -15.1 0 -1.7 0 0 -0.3 0 1 0 -0.3 0 0 2-4disc.dat 4 71 -15.1 0 0.3 -15.1 0 -0.3 -11.8 0 -0.3 -11.8 0 0.3 4 71 -11.8 0 1.4 -11.8 0 2 -15.1 0 2 -15.1 0 1.4 4 71 -11.8 0 -2 -11.8 0 -1.4 -15.1 0 -1.4 -15.1 0 -2 1 71 -15.45 0 -14.15 0.5 0 0 0 1 0 0 0 0.5 4-4disc.dat 1 0 -15.45 0 -14.15 0.5 0 0 0 1 0 0 0 0.5 4-4ndis.dat 1 0 -15.45 0 14.15 0.5 0 0 0 1 0 0 0 0.5 4-4ndis.dat 1 71 -15.45 0 14.15 0.5 0 0 0 1 0 0 0 0.5 4-4disc.dat 0 // top left corner 1 16 -15.3 0 13.5 -4 0 0 0 1 0 0 0 4 1-4ndis.dat 1 0 -15.3 0 13.5 -1 0 0 0 1 0 0 0 1 1-4ring3.dat 1 71 -15.3 0 13.5 -3 0 0 0 1 0 0 0 3 1-4ering.dat 1 71 -15.3 0 13.5 -3 0 0 0 1 0 0 0 3 1-8chrd.dat 1 71 -15.3 0 13.5 0 0 -3 0 1 0 3 0 0 1-8chrd.dat 1 71 -15.3 0 13.5 -2.4 0 0 0 1 0 0 0 2.1 1-8tang.dat 1 0 -15.3 0 13.5 -2.4 0 0 0 1 0 0 0 2.1 1-4chrd.dat 1 71 -15.3 0 13.5 0 0 -2.4 0 1 0 2.1 0 0 1-8tndis.dat 4 71 -15.3 0 16.5 -17.4213 0 15.6213 -16.99704 0 15.6 -15.3 0 15.6 4 71 -17.33472 0 14.68965 -16.99704 0 14.98491 -16.99704 0 15.6 -17.4213 0 15.6213 4 71 -18.3 0 13.5 -17.51736 0 14.30367 -17.33472 0 14.68965 -17.4213 0 15.6213 3 71 -18.3 0 13.5 -17.7 0 13.5 -17.7 0 13.91769 3 71 -18.3 0 13.5 -17.7 0 13.91769 -17.51736 0 14.30367 0 // top right corner 1 0 15.3 0 13.5 1 0 0 0 1 0 0 0 1 1-4ring3.dat 1 16 15.3 0 13.5 4 0 0 0 1 0 0 0 4 1-4ndis.dat 1 71 15.3 0 13.5 3 0 0 0 1 0 0 0 3 1-4ering.dat 1 71 15.3 0 13.5 3 0 0 0 1 0 0 0 3 1-8chrd.dat 1 71 15.3 0 13.5 0 0 3 0 1 0 3 0 0 1-8chrd.dat 1 71 15.3 0 13.5 2.4 0 0 0 1 0 0 0 2.1 1-8tang.dat 1 0 15.3 0 13.5 2.4 0 0 0 1 0 0 0 2.1 1-4chrd.dat 1 71 15.3 0 13.5 0 0 2.4 0 1 0 2.1 0 0 1-8tndis.dat 4 71 15.3 0 16.5 15.3 0 15.6 16.99704 0 15.6 17.4213 0 15.6213 4 71 17.33472 0 14.68965 17.4213 0 15.6213 16.99704 0 15.6 16.99704 0 14.98491 3 71 17.7 0 13.91769 17.7 0 13.5 18.3 0 13.5 3 71 17.51736 0 14.30367 17.7 0 13.91769 18.3 0 13.5 4 71 17.4213 0 15.6213 17.33472 0 14.68965 17.51736 0 14.30367 18.3 0 13.5 0 // bottom right corner 1 16 15.3 0 -13.5 4 0 0 0 1 0 0 0 -4 1-4ndis.dat 1 0 15.3 0 -13.5 1 0 0 0 1 0 0 0 -1 1-4ring3.dat 1 71 15.3 0 -13.5 3 0 0 0 1 0 0 0 -3 1-4ering.dat 1 71 15.3 0 -13.5 3 0 0 0 1 0 0 0 -3 1-8chrd.dat 1 71 15.3 0 -13.5 0 0 3 0 1 0 -3 0 0 1-8chrd.dat 1 71 15.3 0 -13.5 2.4 0 0 0 1 0 0 0 -2.1 1-8tang.dat 1 0 15.3 0 -13.5 2.4 0 0 0 1 0 0 0 -2.1 1-4chrd.dat 1 71 15.3 0 -13.5 0 0 2.4 0 1 0 -2.1 0 0 1-8tndis.dat 4 71 16.99704 0 -15.6 15.3 0 -15.6 15.3 0 -16.5 17.4213 0 -15.6213 4 71 17.51736 0 -14.30367 17.33472 0 -14.68965 17.4213 0 -15.6213 18.3 0 -13.5 4 71 17.33472 0 -14.68965 16.99704 0 -14.98491 16.99704 0 -15.6 17.4213 0 -15.6213 3 71 17.7 0 -13.5 17.7 0 -13.91769 18.3 0 -13.5 3 71 18.3 0 -13.5 17.7 0 -13.91769 17.51736 0 -14.30367 0 // bottom left corner 1 16 -15.3 0 -13.5 -4 0 0 0 1 0 0 0 -4 1-4ndis.dat 1 0 -15.3 0 -13.5 -1 0 0 0 1 0 0 0 -1 1-4ring3.dat 1 71 -15.3 0 -13.5 -3 0 0 0 1 0 0 0 -3 1-4ering.dat 1 71 -15.3 0 -13.5 -3 0 0 0 1 0 0 0 -3 1-8chrd.dat 1 71 -15.3 0 -13.5 0 0 -3 0 1 0 -3 0 0 1-8chrd.dat 1 71 -15.3 0 -13.5 -2.4 0 0 0 1 0 0 0 -2.1 1-8tang.dat 1 0 -15.3 0 -13.5 -2.4 0 0 0 1 0 0 0 -2.1 1-4chrd.dat 1 71 -15.3 0 -13.5 0 0 -2.4 0 1 0 -2.1 0 0 1-8tndis.dat 4 71 -16.99704 0 -15.6 -17.4213 0 -15.6213 -15.3 0 -16.5 -15.3 0 -15.6 4 71 -17.33472 0 -14.68965 -17.4213 0 -15.6213 -16.99704 0 -15.6 -16.99704 0 -14.98491 4 71 -17.4213 0 -15.6213 -17.33472 0 -14.68965 -17.51736 0 -14.30367 -18.3 0 -13.5 3 71 -18.3 0 -13.5 -17.7 0 -13.91769 -17.7 0 -13.5 3 71 -17.7 0 -13.91769 -18.3 0 -13.5 -17.51736 0 -14.30367 4 0 -16.9 0 5.3 -15.4 0 2 -15.1 0 2 -9.9 0 5.3 3 0 -9.9 0 5.3 -15.1 0 2 -11.8 0 2 3 0 -9.9 0 5.3 -11.8 0 2 -11.5 0 2 4 0 -15.1 0 1.4 -15.1 0 0.3 -11.8 0 0.3 -11.8 0 1.4 4 0 -11.8 0 1.4 -11.8 0 0.3 -11.5 0 0.3 -11.5 0 1.4 4 0 -15.1 0 1.4 -15.4 0 1.4 -15.4 0 0.3 -15.1 0 0.3 4 0 -15.4 0 -0.3 -15.4 0 -1.4 -15.1 0 -1.4 -15.1 0 -0.3 4 0 -15.1 0 -0.3 -15.1 0 -1.4 -11.8 0 -1.4 -11.8 0 -0.3 4 0 -11.8 0 -0.3 -11.8 0 -1.4 -11.5 0 -1.4 -11.5 0 -0.3 4 0 -9.9 0 -5.3 -11.5 0 -2 -11.8 0 -2 -16.9 0 -5.3 3 0 -11.8 0 -2 -15.1 0 -2 -16.9 0 -5.3 3 0 -15.1 0 -2 -15.4 0 -2 -16.9 0 -5.3 4 0 -9.9 0 12.3 -9 0 9 9 0 9 15.3 0 15.6 4 0 9 0 -9 -9 0 -9 -9.9 0 -12.3 17.7 0 -13.5 4 0 -9.9 0 -5.3 -9.9 0 -12.3 -9 0 -9 -9 0 9 3 0 -9 0 9 -9.9 0 5.3 -9.9 0 -5.3 3 0 -9.9 0 12.3 -9.9 0 5.3 -9 0 9 3 0 -9.9 0 5.3 -11.5 0 2 -11.5 0 1.4 3 0 -9.9 0 5.3 -11.5 0 1.4 -11.5 0 0.3 4 0 -9.9 0 5.3 -11.5 0 0.3 -11.5 0 -0.3 -9.9 0 -5.3 3 0 -11.5 0 -0.3 -11.5 0 -1.4 -9.9 0 -5.3 3 0 -11.5 0 -1.4 -11.5 0 -2 -9.9 0 -5.3 3 0 -16.9 0 5.3 -15.4 0 1.4 -15.4 0 2 3 0 -16.9 0 5.3 -15.4 0 0.3 -15.4 0 1.4 4 0 -15.4 0 -0.3 -15.4 0 0.3 -16.9 0 5.3 -16.9 0 -5.3 3 0 -15.4 0 -0.3 -16.9 0 -5.3 -15.4 0 -1.4 3 0 -15.4 0 -1.4 -16.9 0 -5.3 -15.4 0 -2 3 16 20 0 20 15.3 0 17.5 19.3 0 17.5 4 16 20 0 20 19.3 0 17.5 19.3 0 13.5 20 0 -20 3 16 19.3 0 13.5 19.3 0 -13.5 20 0 -20 3 16 19.3 0 -13.5 19.3 0 -17.5 20 0 -20 4 16 20 0 -20 19.3 0 -17.5 15.3 0 -17.5 -20 0 -20 3 16 15.3 0 -17.5 -15.3 0 -17.5 -20 0 -20 3 16 -15.3 0 -17.5 -19.3 0 -17.5 -20 0 -20 4 16 -20 0 -20 -19.3 0 -17.5 -19.3 0 -13.5 -20 0 20 3 16 -20 0 20 -19.3 0 -13.5 -19.3 0 13.5 3 16 -20 0 20 -19.3 0 13.5 -19.3 0 17.5 4 16 -20 0 20 -19.3 0 17.5 -15.3 0 17.5 20 0 20 3 16 20 0 20 -15.3 0 17.5 15.3 0 17.5 4 0 15.3 0 17.5 -15.3 0 17.5 -15.3 0 16.5 15.3 0 16.5 4 0 18.3 0 -13.5 19.3 0 -13.5 19.3 0 13.5 18.3 0 13.5 4 0 -15.3 0 -17.5 15.3 0 -17.5 15.3 0 -16.5 -15.3 0 -16.5 4 0 -19.3 0 13.5 -19.3 0 -13.5 -18.3 0 -13.5 -18.3 0 13.5 4 0 -15.3 0 15.6 -15.95 0 14.65 -14.95 0 14.65 15.3 0 15.6 3 0 -15.3 0 15.6 -17.7 0 13.5 -15.95 0 14.65 4 0 -15.95 0 13.65 -15.95 0 14.65 -17.7 0 13.5 -16.9 0 12.3 3 0 -17.7 0 -13.5 -15.3 0 -15.6 -15.95 0 -14.65 4 0 -17.7 0 -13.5 -15.95 0 -14.65 -15.95 0 -13.65 -16.9 0 -12.3 4 0 -14.95 0 -14.65 -15.95 0 -14.65 -15.3 0 -15.6 15.3 0 -15.6 4 0 -16.9 0 -12.3 -15.95 0 -13.65 -14.95 0 -13.65 -9.9 0 -12.3 4 0 -9.9 0 -12.3 -14.95 0 -13.65 -14.95 0 -14.65 17.7 0 -13.5 3 0 17.7 0 -13.5 -14.95 0 -14.65 15.3 0 -15.6 4 0 9 0 9 9 0 -9 17.7 0 -13.5 17.7 0 13.5 3 0 15.3 0 15.6 9 0 9 17.7 0 13.5 4 0 -9.9 0 12.3 15.3 0 15.6 -14.95 0 14.65 -14.95 0 13.65 4 0 -16.9 0 12.3 -9.9 0 12.3 -14.95 0 13.65 -15.95 0 13.65 4 0 -16.9 0 5.3 -16.9 0 12.3 -17.7 0 13.5 -17.7 0 -13.5 3 0 -16.9 0 5.3 -17.7 0 -13.5 -16.9 0 -5.3 3 0 -16.9 0 -5.3 -17.7 0 -13.5 -16.9 0 -12.3 4 71 15.3 0 16.5 -15.3 0 16.5 -15.3 0 15.6 15.3 0 15.6 4 71 18.3 0 13.5 17.7 0 13.5 17.7 0 -13.5 18.3 0 -13.5 4 71 -15.3 0 -16.5 15.3 0 -16.5 15.3 0 -15.6 -15.3 0 -15.6 4 71 -18.3 0 13.5 -18.3 0 -13.5 -17.7 0 -13.5 -17.7 0 13.5
Status:
Not releaseable Needs More Votes (CN) Needs More Votes (CN)
Current Votes:
User Vote
fwcain Certify
Official parents and subparts
Part Events:
Bertrand Lequy [Berth]
Part Author
initially submitted the part.
2024-05-13 16:08:58
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2024-06-02 12:50:18
That is a very clever print and use!

Use a s-4chrd instead of the 2-4disc, this avoids an TJ

Instead of this:
1 0 -15.3 0 13.5 -1 0 0 0 1 0 0 0 1 1-4ring3.dat
1 71 -15.3 0 13.5 -3 0 0 0 1 0 0 0 3 1-4ering.dat
4 71 -18.0717 0 14.6481 -18.3 0 13.5 -17.7 0 13.5 -17.51736 0 14.30367
4 71 -17.4213 0 15.6213 -18.0717 0 14.6481 -17.51736 0 14.30367 -16.99704 0 14.98491
4 71 -17.4213 0 15.6213 -16.99704 0 14.98491 -16.21848 0 15.44019 -16.4481 0 16.2717
4 71 -16.4481 0 16.2717 -16.21848 0 15.44019 -15.3 0 15.6 -15.3 0 16.5
4 0 -17.7 0 13.5 -15.3 0 15.6 -16.21848 0 15.44019 -17.51736 0 14.30367
3 0 -16.99704 0 14.98491 -17.51736 0 14.30367 -16.21848 0 15.44019

use:
1 0 -15.3 0 13.5 -1 0 0 0 1 0 0 0 1 1-4ring3.dat
1 71 -15.3 0 13.5 -3 0 0 0 1 0 0 0 3 1-8chrd.dat
1 71 -15.3 0 13.5 0 0 -3 0 1 0 3 0 0 1-8chrd.dat
1 71 -15.3 0 13.5 -2.4 0 0 0 1 0 0 0 2.1 1-8tang.dat
1 0 -15.3 0 13.5 -2.4 0 0 0 1 0 0 0 2.1 1-4chrd.dat
1 71 -15.3 0 13.5 0 0 -2.4 0 1 0 2.1 0 0 1-8tndis.dat
4 71 -15.3 0 16.5 -17.4213 0 15.6213 -16.99704 0 15.6 -15.3 0 15.6
4 71 -17.33472 0 14.68965 -16.99704 0 14.98491 -16.99704 0 15.6 -17.4213 0 15.6213
4 71 -18.3 0 13.5 -17.51736 0 14.30367 -17.33472 0 14.68965 -17.4213 0 15.6213
3 71 -18.3 0 13.5 -17.7 0 13.5 -17.7 0 13.91769
3 71 -18.3 0 13.5 -17.7 0 13.91769 -17.51736 0 14.30367

That will give a smooth inner edge as well
Bertrand Lequy [Berth]
Part Author
submitted a new version of the part.
2024-06-04 15:58:19
Done, thank you for the help.
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2024-06-07 13:12:31
I don't like the two sets of concentric ring prims.
Please don't use the obsoleted rin-primitives. They are now all replaced with proper ring-prims.
Bertrand Lequy [Berth]
Part Author
submitted a new version of the part.
2024-06-09 07:37:05
rin prim replaced

I used concentric ring prims because I didn't succeded to do it an other way.
Magnus Forsberg [MagFors]
Part Library Admin
edited the part header.
2024-06-09 08:54:21
Header Edits

description:
Plate 2 x 2 with Groove with 1 Centre Stud with with Two White Circles (Lights) and Grille on Black Square with Rounded Corners Pattern
to
Plate 2 x 2 with Groove with 1 Centre Stud with Two White Circles (Lights) and Grille on Black Square with Rounded Corners Pattern

Comment:
Removed one "with" in the description.
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2024-06-27 11:27:20
concerning the rings try this:

1 13 -13.4 0 -8.8 1.8 0 0 0 1 0 0 0 1.8 4-4disc.dat
1 1 -13.4 0 -8.8 0.36 0 0 0 1 0 0 0 0.36 4-4ring5.dat
1 13 -13.4 0 -8.8 2.16 0 0 0 1 0 0 0 2.16 1-8tndis.dat
1 13 -13.4 0 -8.8 0 0 2.16 0 1 0 2.16 0 0 1-8tndis.dat
1 13 -13.4 0 -8.8 3 0 0 0 1 0 0 0 3 1-8chrd.dat
1 13 -13.4 0 -8.8 0 0 3 0 1 0 3 0 0 1-8chrd.dat
3 13 -11.24 0 -8.8 -10.4 0 -8.8 -11.24 0 -7.272664
3 13 -11.24 0 -7.272664 -10.4 0 -8.8 -11.2787 0 -6.6787
4 13 -11.24 0 -7.272664 -11.2787 0 -6.6787 -11.872664 0 -6.64 -11.872664 0 -7.272664
3 13 -13.4 0 -5.8 -13.4 0 -6.64 -11.872664 0 -6.64
3 13 -13.4 0 -5.8 -11.872664 0 -6.64 -11.2787 0 -6.6787
1 71 -13.4 0 -8.8 0.5 0 0 0 1 0 0 0 0.5 4-4ring6.dat
Gerald Lasser [GeraldLasser]
Part Library Admin
posted a vote of Hold.
2024-06-27 11:27:53
my suggestion can be rounded to 4 or 5
Bertrand Lequy [Berth]
Part Author
submitted a new version of the part.
2024-06-30 07:07:05
modifications done as suggested
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2024-06-30 08:27:25
why is the grey stripe around differently thick? the black outer stripe has ring prims, but the grey one not...
Bertrand Lequy [Berth]
Part Author
made the following comment.
2024-06-30 16:12:14
because that's howthe print is designed : https://fr.bricker.info/images/sets/LEGO/40650_main.jpg
Franklin W. Cain [fwcain]
Part Reviewer
posted a vote of Certify.
2024-11-19 01:32:24
