Official File parts/u8040.dat
Part Attributes:
File Header:

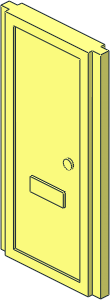

0 Mursten Door 1 x 2 x 4 with Handle (Front) and 8 Panes (Back)
0 Name: u8040.dat
0 Author: N. W. Perry [Plastikean]
0 !LDRAW_ORG Part UPDATE 2022-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CW
0 !CATEGORY Door
0 !KEYWORDS Automatic Binding Brick, BrickLink bdoor01, Lego Mursten
0 !KEYWORDS Rebrickable brickslot0001
0 !HISTORY 2012-12-28 [tchang] Original u8013 geometry
0 !HISTORY 2013-07-21 [tchang] Original u8014 geometry
0 !HISTORY 2021-04-15 [Plastikean] Merged u8013 and u8014 for 2-sided design
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
Show contents
1 16 0 0 0 -20 0 0 0 1 0 0 0 -4 rect2p.dat
1 16 -22 0 0 0 0 -2 0 1 0 2 0 0 rect3.dat
1 16 22 0 0 0 0 2 0 1 0 2 0 0 rect3.dat
1 16 0 96 0 20 0 0 0 -1 0 0 0 -4 rect2p.dat
1 16 22 96 0 0 0 2 0 -1 0 2 0 0 rect3.dat
1 16 -22 96 0 0 0 -2 0 -1 0 2 0 0 rect3.dat
1 16 -20 48 0 0 -4 0 48 0 0 0 0 2 box3u8p.dat
1 16 -20 48 -3 0 1 0 48 0 0 0 0 -1 rect3.dat
1 16 -20 48 3 0 1 0 -48 0 0 0 0 1 rect3.dat
1 16 20 48 0 0 4 0 48 0 0 0 0 -2 box3u8p.dat
1 16 20 48 3 0 -1 0 48 0 0 0 0 1 rect3.dat
1 16 20 48 -3 0 -1 0 -48 0 0 0 0 -1 rect3.dat
4 16 -20 0 -4 20 0 -4 16 4 -4 -16 4 -4
4 16 20 96 -4 -20 96 -4 -16 92 -4 16 92 -4
4 16 20 0 -4 20 96 -4 16 92 -4 16 4 -4
4 16 -20 96 -4 -20 0 -4 -16 4 -4 -16 92 -4
4 16 20 0 4 -20 0 4 -16 4 4 16 4 4
4 16 -20 96 4 20 96 4 16 92 4 -16 92 4
4 16 -20 0 4 -20 96 4 -16 92 4 -16 4 4
4 16 20 96 4 20 0 4 16 4 4 16 92 4
0 BFC INVERTNEXT
1 16 0 48 -4 16 0 0 0 0 -44 0 1 0 box5.dat
1 16 0 63 -3 8 0 0 0 0 3 0 -1 0 box5.dat
1 16 10 48 -3 2 0 0 0 0 2 0 -1 0 4-4cyli.dat
1 16 10 48 -4 -2 0 0 0 0 2 0 1 0 4-4disc.dat
1 16 10 48 -4 2 0 0 0 0 2 0 -1 0 4-4edge.dat
1 16 10 48 -3 2 0 0 0 0 2 0 -1 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 48 4 -16 0 0 0 0 -44 0 -1 0 box5.dat
1 16 7.5 15.75 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 -7.5 15.75 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 7.5 37.55 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 -7.5 37.55 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 7.5 59.05 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 -7.5 59.05 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 7.5 80.55 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
1 16 -7.5 80.55 3 6.5 0 0 0 0 -9.75 0 1 0 box5.dat
Status:
Official
This part has the following errors
- All parts must be BFC CERTIFY CCW
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © N. W. Perry
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
J.C. Tchang,
