Unofficial File parts/u8040.dat
Part Attributes:
File Header:

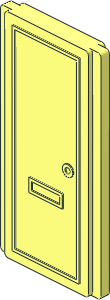

0 Mursten Door 1 x 2 x 4 with Handle (Front) and 8 Panes (Back)
0 Name: u8040.dat
0 Author: N. W. Perry [Plastikean]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Door
0 !KEYWORDS Automatic Binding Brick, BrickLink bdoor01, Lego Mursten
0 !KEYWORDS Rebrickable brickslot0001
0 !HISTORY 2012-12-28 [tchang] Original u8013 geometry
0 !HISTORY 2013-07-21 [tchang] Original u8014 geometry
0 !HISTORY 2021-04-15 [Plastikean] Merged u8013 and u8014 for 2-sided design
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
0 !HISTORY 2025-01-03 [Plastikean] Subfiled, rounded corners, revised embossed patterns
Show contents
1 16 0 48 -2 0 0 -20 46.5 0 0 0 -2 0 box3u10p.dat
1 16 0 48 2 0 0 -20 46.5 0 0 0 2 0 box3u10p.dat
1 16 -20 48 0 0 -4 0 46.5 0 0 0 0 2 box3u8p.dat
1 16 20 48 0 0 4 0 46.5 0 0 0 0 -2 box3u8p.dat
1 16 18.5 94.5 0 1 0 0 0 1 0 0 0 1 s\u8016s02.dat
1 16 -18.5 94.5 0 -1 0 0 0 1 0 0 0 1 s\u8016s02.dat
4 16 18.5 96 -4 20 94.5 -4 -20 94.5 -4 -18.5 96 -4
3 16 -18.5 96 4 18.5 96 4 18.5 96 2
4 16 18.5 96 -2 -18.5 96 2 -18.5 96 4 18.5 96 2
4 16 -18.5 96 2 18.5 96 -2 18.5 96 -4 -18.5 96 -2
3 16 -18.5 96 -2 18.5 96 -4 -18.5 96 -4
4 16 -20 94.5 4 20 94.5 4 18.5 96 4 -18.5 96 4
2 24 -18.5 96 -4 18.5 96 -4
2 24 -18.5 96 4 18.5 96 4
1 16 -18.5 1.5 0 -1 0 0 0 -1 0 0 0 1 s\u8016s02.dat
1 16 18.5 1.5 0 1 0 0 0 -1 0 0 0 1 s\u8016s02.dat
4 16 -20 1.5 -4 20 1.5 -4 18.5 0 -4 -18.5 0 -4
3 16 18.5 0 4 -18.5 0 4 18.5 0 2
4 16 -18.5 0 4 -18.5 0 2 18.5 0 -2 18.5 0 2
4 16 18.5 0 -4 18.5 0 -2 -18.5 0 2 -18.5 0 -2
3 16 18.5 0 -4 -18.5 0 -2 -18.5 0 -4
4 16 18.5 0 4 20 1.5 4 -20 1.5 4 -18.5 0 4
2 24 -18.5 0 -4 18.5 0 -4
2 24 -18.5 0 4 18.5 0 4
0 // Front side
1 16 0 48 -4 16 0 0 0 0 44 0 -.5 0 box4.dat
0 BFC INVERTNEXT
1 16 0 48 -4 14.75 0 0 0 0 42.75 0 -.5 0 box4.dat
4 16 -16 4 -4.5 -14.75 5.25 -4.5 14.75 5.25 -4.5 16 4 -4.5
4 16 16 4 -4.5 14.75 5.25 -4.5 14.75 90.75 -4.5 16 92 -4.5
4 16 14.75 90.75 -4.5 -14.75 90.75 -4.5 -16 92 -4.5 16 92 -4.5
4 16 -16 92 -4.5 -14.75 90.75 -4.5 -14.75 5.25 -4.5 -16 4 -4.5
1 16 0 63 -4 8 0 0 0 0 3 0 -.5 0 box4.dat
0 BFC INVERTNEXT
1 16 0 63 -4 6.75 0 0 0 0 1.75 0 -.5 0 box4.dat
4 16 -8 60 -4.5 -6.75 61.25 -4.5 6.75 61.25 -4.5 8 60 -4.5
4 16 8 60 -4.5 6.75 61.25 -4.5 6.75 64.75 -4.5 8 66 -4.5
4 16 8 66 -4.5 6.75 64.75 -4.5 -6.75 64.75 -4.5 -8 66 -4.5
4 16 -8 60 -4.5 -8 66 -4.5 -6.75 64.75 -4.5 -6.75 61.25 -4.5
1 16 10.5 50 -4 2.5 0 0 0 0 2.5 0 -.5 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 10.5 50 -4 1.25 0 0 0 0 1.25 0 -.5 0 4-4cylo.dat
1 16 10.5 50 -4.5 1.25 0 0 0 0 1.25 0 1 0 4-4ring1.dat
0 // Back side
1 16 0 48 4 16 0 0 0 0 44 0 .5 0 box4.dat
0 BFC INVERTNEXT
1 16 0 48 4 14.75 0 0 0 0 42.75 0 .5 0 box4.dat
4 16 16 4 4.5 14.75 5.25 4.5 -14.75 5.25 4.5 -16 4 4.5
4 16 -14.75 5.25 4.5 -14.75 90.75 4.5 -16 92 4.5 -16 4 4.5
4 16 -16 92 4.5 -14.75 90.75 4.5 14.75 90.75 4.5 16 92 4.5
4 16 16 92 4.5 14.75 90.75 4.5 14.75 5.25 4.5 16 4 4.5
1 16 7 16.59 4 1 0 0 0 1 0 0 0 1 s\u8040s01.dat
1 16 7 37.53 4 1 0 0 0 1 0 0 0 1 s\u8040s01.dat
1 16 7 58.47 4 1 0 0 0 1 0 0 0 1 s\u8040s01.dat
1 16 7 79.41 4 1 0 0 0 1 0 0 0 1 s\u8040s01.dat
1 16 -7 16.59 4 1 0 0 0 1 0 0 0 1 s\u8040s01.dat
1 16 -7 37.53 4 1 0 0 0 1 0 0 0 1 s\u8040s01.dat
1 16 -7 58.47 4 1 0 0 0 1 0 0 0 1 s\u8040s01.dat
1 16 -7 79.41 4 1 0 0 0 1 0 0 0 1 s\u8040s01.dat
Status:
Needs More Votes (CF)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| MagFors | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
Improves current part geometry. The pattern should be made as outlines rather than solid shapes.
2025-01-08 17:33:14
How sure are you of the handle size?
This use a lot less triangles:
1 16 10.6 50 -4 2.4 0 0 0 0 2.4 0 -.5 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 10.6 50 -4 1.2 0 0 0 0 1.2 0 -.5 0 4-4cylo.dat
1 16 10.6 50 -4.5 1.2 0 0 0 0 1.2 0 1 0 4-4ring1.dat
The very thin rings are only 4/100 of a mm.
This use a lot less triangles:
1 16 10.6 50 -4 2.4 0 0 0 0 2.4 0 -.5 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 10.6 50 -4 1.2 0 0 0 0 1.2 0 -.5 0 4-4cylo.dat
1 16 10.6 50 -4.5 1.2 0 0 0 0 1.2 0 1 0 4-4ring1.dat
The very thin rings are only 4/100 of a mm.
2025-01-09 02:23:19
I'm quite confident in the size; I consistently measure it at 5:6 to the height of the mail slot (this is Lego, after all). But I could be persuaded that the outline width is 1.25, which works with ring1.
Reduced prim usage and refined some dimensions
2025-01-09 21:45:10
