File Detail parts/75541c01-f1.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/75541c01-f1.dat

Part Attributes: Base Part: 75541-f1.dat

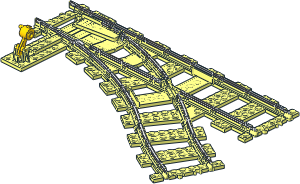

Train Track 9V Point Right Straight with Yellow Lever

File Header:

0 Train Track  9V Point Right Straight with Yellow Lever
0 Name: 75541c01-f1.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Shortcut UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-08-23 [MagFors] corrected position of lever
0 !HISTORY 2025-08-24 [MagFors] renumbered from 2859c03
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 75541-f1.dat
1 14 -250 -24 -170 1 0 0 0 .88064 .47378 0 -.47378 .88064 2866.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Steffen [Steffen]

initially submitted the part.

2012-09-08 21:35:02

Joshua Delahunty [dulcaoin]

made the following comment.

2012-09-09 20:50:07

2859c01 should not have 2866, which is a fully separate part in its own right.

Steffen [Steffen]

made the following comment.

2012-09-09 21:45:07

I think you are referring to your comment at 2859.dat,
where you suggested to use ...c01 for something different.
That's fine for me, then this assembly just needs a different
c0X number. But having the "point plus lever" assembly is
something good to have IMHO. checkout the existing 4.5V and 12V
train points. There we have parts files for all their constituents,
and also c0X assemblies which can be directly used by train track
layout software like e.g. BlueBrick.
We should do the same here.

Steffen [Steffen]

made the following comment.

2012-09-09 22:00:20

cf. http://ebid.s3.amazonaws.com/upload_big/3/8/4/1322915564-327-11.jpg

[PTadmin]

renamed the part.

2012-09-10 09:47:59

"parts/2859c01.dat" to "parts/2859c03.dat."

Franklin W. Cain [fwcain]

posted a vote of Certify.

2019-05-12 14:05:01

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2023-07-22 14:40:50

Javier Orquera [kuramapika1]

made the following comment.

2025-02-12 22:46:13

Part 2866 have a wrong translation/position.

Gerald Lasser [GeraldLasser]

posted a vote of Hold.

2025-08-21 10:21:19

Part 2866 is too high and intersects with 2864.

Part 2866 needs to be lowered by 2 LDU and rotated only by 28,28 deg to not intersect
1 14 -250 -24 -170 1 0 0 0 .88064 .47378 0 -.47378 .88064 2866.dat

It will still intersect with 2864, but that needs to be addressed in 2864

Magnus Forsberg [MagFors]

submitted a new version of the part.

2025-08-23 14:40:16

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2025-08-23 16:29:49

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-08-23 16:39:47

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2025-08-24 15:13:55

Magnus Forsberg [MagFors]

renamed the part.

2025-08-24 21:26:13

"parts/2859c03.dat" to "parts/75541c01-f1.dat"

Magnus Forsberg [MagFors]

edited the part header.

2025-08-24 21:27:49

Header Edits

history:
0 !HISTORY 2025-08-23 [MagFors] corrected position of lever
to
0 !HISTORY 2025-08-23 [MagFors] corrected position of lever 0 !HISTORY 2025-08-24 [MagFors] renumbered from 2859c03
description:
Train Track 9V Point Right Straight (Complete)
to
Train Track 9V Point Right Straight with Yellow Lever

Orion Pobursky [OrionP]

2025-08-31 02:18:23

Release 2025-08
