Official File parts/4350.dat
Part Attributes:
File Header:

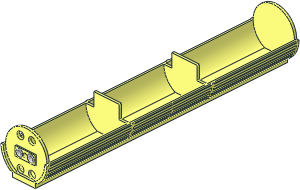

0 Electric 4.5V 3 C-Cell Battery Box Bottom (Needs Work)
0 Name: 4350.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 4.5V, Set 1032, Set 1034, set 1039, Set 740, Set 8050, Set 8054
0 !KEYWORDS Set 8055, Set 8700, Set 9605
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
Show contents
0 // Needs Work: inside electrics not modelled (battery connectors)
0 // Needs Work: misses the holes and nose for the connection to the top
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4350s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4350s01.dat
0 // Outside
0 BFC INVERTNEXT
1 16 0 0 0 0 0 16 0 -6 0 216 0 0 box5.dat
4 16 20 0 -220 -20 0 -220 -16 0 -216 16 0 -216
4 16 -20 0 220 20 0 220 16 0 216 -16 0 216
1 16 0 0 0 0 0 20 0 1 0 220 0 0 recte4.dat
3 16 20 0 220 -20 0 220 0 -4 220
3 16 -20 0 -220 20 0 -220 0 -4 -220
0 // Inside
1 16 0 -40 220 36 0 0 0 0 36 0 -1 0 48\4-4disc.dat
1 16 0 -40 220 36 0 0 0 0 -36 0 -4 0 48\2-4cylo.dat
1 16 0 -40 216 36 0 0 0 0 -36 0 1 0 48\2-4chrd.dat
4 16 -18 -8.824 216 18 -8.824 216 36 -40 216 -36 -40 216
4 16 18 -8.824 216 -18 -8.824 216 -16 -8 216 16 -8 216
1 16 0 -8 140 16 0 0 0 1 0 0 0 76 rect.dat
4 16 16 -8 64 -16 -8 64 -22 -40 64 22 -40 64
1 16 0 -40 62 22 0 0 0 -22 0 0 0 2 box5-2p.dat
4 16 22 -40 60 -22 -40 60 -16 -8 60 16 -8 60
1 16 0 -8 -6 16 0 0 0 1 0 0 0 66 rect.dat
4 16 16 -8 -72 -16 -8 -72 -22 -40 -72 22 -40 -72
1 16 0 -40 -74 22 0 0 0 -22 0 0 0 2 box5-2p.dat
4 16 22 -40 -76 -22 -40 -76 -16 -8 -76 16 -8 -76
1 16 0 -8 -144 16 0 0 0 1 0 0 0 68 rect.dat
1 16 0 -40 -216 36 0 0 0 0 -36 0 4 0 48\2-4cylo.dat
1 16 0 -8 -218 16 0 0 0 1 0 0 0 2 rect.dat
4 16 16 -8 -220 -16 -8 -220 -13.7772 -6.7396 -220 13.7772 -6.7396 -220
4 16 13.7772 -6.7396 -220 -13.7772 -6.7396 -220 -9.3168 -5.2276 -220 9.3168 -5.2276 -220
4 16 9.3168 -5.2276 -220 -9.3168 -5.2276 -220 -4.698 -4.3096 -220 4.698 -4.3096 -220
3 16 4.698 -4.3096 -220 -4.698 -4.3096 -220 0 -4 -220
0 // center hole
1 16 0 -38 -218 3.5 0 0 0 0 3.5 0 1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -38 -218 3.5 0 0 0 0 3.5 0 6 0 4-4cylo.dat
1 16 0 -38 -212 3.5 0 0 0 0 3.5 0 -1 0 4-4ndis.dat
0 // Filler inside
4 16 -4 -14 -212 4 -14 -212 4 -8 -212 -4 -8 -212
4 16 -4 -20 -212 4 -20 -212 4 -14 -212 -4 -14 -212
3 16 4 -20 -212 -4 -20 -212 0 -34.5 -212
3 16 4 -56 -212 0 -41.5 -212 -4 -56 -212
4 16 4 -56 -212 -4 -56 -212 -4 -62 -212 4 -62 -212
4 16 4 -62 -212 -4 -62 -212 -4 -68 -212 4 -68 -212
3 16 4 -68 -212 -4 -68 -212 0 -76 -212
0 // Filler outside
4 16 4 -8 -216 4 -14 -216 -4 -14 -216 -4 -8 -216
4 16 4 -14 -216 4 -20 -216 -4 -20 -216 -4 -14 -216
4 16 17.5 -30.5 -216 -17.5 -30.5 -216 -4 -20 -216 4 -20 -216
1 16 0 -38 -218 17.5 0 0 0 0 7.5 0 2 0 box4.dat
4 16 -17.5 -30.5 -218 17.5 -30.5 -218 4 -32 -218 -4 -32 -218
3 16 -4 -32 -218 4 -32 -218 0 -34.5 -218
3 16 0 -41.5 -218 4 -44 -218 -4 -44 -218
4 16 17.5 -45.5 -218 -17.5 -45.5 -218 -4 -44 -218 4 -44 -218
4 16 -17.5 -45.5 -216 17.5 -45.5 -216 4 -56 -216 -4 -56 -216
4 16 -4 -56 -216 4 -56 -216 4 -62 -216 -4 -62 -216
4 16 -4 -62 -216 4 -62 -216 4 -68 -216 -4 -68 -216
3 16 -4 -68 -216 4 -68 -216 0 -76 -216
0 // Antistuds
1 16 0 -6 -213 0 0 3.0616 0 5 0 3 0 0 box3u5p.dat
1 16 0 0 -200 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 -180 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 -160 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 -140 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 -120 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 -100 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 -6 -70 0 0 3.0616 0 5 0 20 0 0 box3u8p.dat
1 16 0 0 -40 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 -20 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 20 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 -6 70 0 0 3.0616 0 5 0 20 0 0 box3u8p.dat
1 16 0 0 100 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 120 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 140 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 160 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 180 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 -6 203 0 0 3.0616 0 5 0 -13 0 0 box3u5p.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
exact structure inside missing (do we need it?)
got the subpart links wrong
the lower switch connector holes were too high
new inner structure (still some details missing)
2024-03-30 15:24:07
* Nice part!!!
* Missing complementaries:
2 4 -18 -8.824 -76 -18 -8.824 -212 (example)
* T-junk
* "Needs Work" as the holes for the clips on the side and some of the inner structure is missing.
* Missing complementaries:
2 4 -18 -8.824 -76 -18 -8.824 -212 (example)
* T-junk
* "Needs Work" as the holes for the clips on the side and some of the inner structure is missing.
2024-04-24 16:10:00
the t-junk at the dividers? these are simplified and not as real, misses the whole electrical parts inside...
(as long there are no C-Cells in LDraw I dont think its necessary)
in the other battery boxes the metal connections are also missing.
(as long there are no C-Cells in LDraw I dont think its necessary)
in the other battery boxes the metal connections are also missing.
2024-04-24 16:37:12
* Mainly the ndis.
* I'm fine with the electric parts missing.
* The dividers miss an enforcment at the base. There are holes (presumably for clips) at the sides. The front with the holes is missing an enforcement at the top ...
https://img.bricklink.com/ItemImage/EXTN/20373.png
* I'm fine with the electric parts missing.
* The dividers miss an enforcment at the base. There are holes (presumably for clips) at the sides. The front with the holes is missing an enforcement at the top ...
https://img.bricklink.com/ItemImage/EXTN/20373.png
cut in half, created a new subfile
added "needs work" (misses some inside details)
2024-11-06 10:57:38
2024-11-06 13:33:51
2024-11-27 20:20:46
2024-12-01 00:36:14
Release 2024-10
