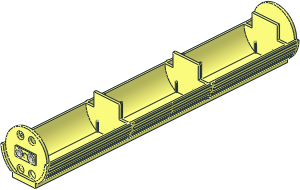

Electric 4.5V 3 C-Cell Battery Box Bottom (Needs Work)

File Header:

0 Electric 4.5V 3 C-Cell Battery Box Bottom (Needs Work)
0 Name: 4350.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Place batteries u9199.dat
0 !HELP 1 14 0 -40 -143 0 1 0 0 0 -1 -1 0 0 u9199.dat
0 !HELP 1 14 0 -40 -5 0 1 0 0 0 -1 -1 0 0 u9199.dat
0 !HELP 1 14 0 -40 133 0 1 0 0 0 -1 -1 0 0 u9199.dat

0 BFC CERTIFY CCW

0 !KEYWORDS 4.5V, Set 1032, Set 1034, set 1039, Set 740, Set 8050, Set 8054
0 !KEYWORDS Set 8055, Set 8700, Set 9605

0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
0 !HISTORY 2025-05-07 [Blechtaler] added third internal rib, added battery !HELP

Show contents

0 // Needs Work: inside electrics not modelled (battery connectors)
0 // Needs Work: misses the holes and nose for the connection to the top

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4350s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4350s01.dat

0 // Outside
0 BFC INVERTNEXT
1 16 0 0 0 0 0 16 0 -6 0 216 0 0 box5.dat
4 16 20 0 -220 -20 0 -220 -16 0 -216 16 0 -216
4 16 -20 0 220 20 0 220 16 0 216 -16 0 216
1 16 0 0 0 0 0 20 0 1 0 220 0 0 recte4.dat
3 16 20 0 220 -20 0 220 0 -4 220
3 16 -20 0 -220 20 0 -220 0 -4 -220

0 // Inside
1 16 0 -40 220 36 0 0 0 0 36 0 -1 0 48\4-4disc.dat
1 16 0 -40 220 36 0 0 0 0 -36 0 -4 0 48\2-4cylo.dat
1 16 0 -40 216 36 0 0 0 0 -36 0 1 0 48\2-4chrd.dat
4 16 -18 -8.824 216 18 -8.824 216 36 -40 216 -36 -40 216
4 16 18 -8.824 216 -18 -8.824 216 -16 -8 216 16 -8 216
1 16 0 -8 210 16 0 0 0 1 0 0 0 6 rect.dat
4 16 16 -8 204 -16 -8 204 -22 -40 204 22 -40 204
1 16 0 -40 202 22 0 0 0 -22 0 0 0 2 box5-2p.dat
4 16 22 -40 200 -22 -40 200 -16 -8 200 16 -8 200
1 16 0 -8 133 16 0 0 0 1 0 0 0 67 rect.dat
4 16 16 -8 66 -16 -8 66 -22 -40 66 22 -40 66
1 16 0 -40 64 22 0 0 0 -22 0 0 0 2 box5-2p.dat
4 16 22 -40 62 -22 -40 62 -16 -8 62 16 -8 62
1 16 0 -8 -5 16 0 0 0 1 0 0 0 67 rect.dat
4 16 16 -8 -72 -16 -8 -72 -22 -40 -72 22 -40 -72
1 16 0 -40 -74 22 0 0 0 -22 0 0 0 2 box5-2p.dat
4 16 22 -40 -76 -22 -40 -76 -16 -8 -76 16 -8 -76
1 16 0 -8 -144 16 0 0 0 1 0 0 0 68 rect.dat
1 16 0 -40 -216 36 0 0 0 0 -36 0 4 0 48\2-4cylo.dat
1 16 0 -8 -218 16 0 0 0 1 0 0 0 2 rect.dat
4 16 16 -8 -220 -16 -8 -220 -13.7772 -6.7396 -220 13.7772 -6.7396 -220
4 16 13.7772 -6.7396 -220 -13.7772 -6.7396 -220 -9.3168 -5.2276 -220 9.3168 -5.2276 -220
4 16 9.3168 -5.2276 -220 -9.3168 -5.2276 -220 -4.698 -4.3096 -220 4.698 -4.3096 -220
3 16 4.698 -4.3096 -220 -4.698 -4.3096 -220 0 -4 -220

0 // center hole
1 16 0 -38 -218 3.5 0 0 0 0 3.5 0 1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -38 -218 3.5 0 0 0 0 3.5 0 6 0 4-4cylo.dat
1 16 0 -38 -212 3.5 0 0 0 0 3.5 0 -1 0 4-4ndis.dat

0 // Filler inside
4 16 -4 -14 -212 4 -14 -212 4 -8 -212 -4 -8 -212
4 16 -4 -20 -212 4 -20 -212 4 -14 -212 -4 -14 -212
3 16 4 -20 -212 -4 -20 -212 0 -34.5 -212
3 16 4 -56 -212 0 -41.5 -212 -4 -56 -212
4 16 4 -56 -212 -4 -56 -212 -4 -62 -212 4 -62 -212
4 16 4 -62 -212 -4 -62 -212 -4 -68 -212 4 -68 -212
3 16 4 -68 -212 -4 -68 -212 0 -76 -212

0 // Filler outside
4 16 4 -8 -216 4 -14 -216 -4 -14 -216 -4 -8 -216
4 16 4 -14 -216 4 -20 -216 -4 -20 -216 -4 -14 -216
4 16 17.5 -30.5 -216 -17.5 -30.5 -216 -4 -20 -216 4 -20 -216
1 16 0 -38 -218 17.5 0 0 0 0 7.5 0 2 0 box4.dat
4 16 -17.5 -30.5 -218 17.5 -30.5 -218 4 -32 -218 -4 -32 -218
3 16 -4 -32 -218 4 -32 -218 0 -34.5 -218
3 16 0 -41.5 -218 4 -44 -218 -4 -44 -218
4 16 17.5 -45.5 -218 -17.5 -45.5 -218 -4 -44 -218 4 -44 -218
4 16 -17.5 -45.5 -216 17.5 -45.5 -216 4 -56 -216 -4 -56 -216
4 16 -4 -56 -216 4 -56 -216 4 -62 -216 -4 -62 -216
4 16 -4 -62 -216 4 -62 -216 4 -68 -216 -4 -68 -216
3 16 -4 -68 -216 4 -68 -216 0 -76 -216

0 // Antistuds
1 16 0 -6 -213 0 0 3.0616 0 5 0 3 0 0 box3u5p.dat
1 16 0 0 -200 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 -180 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 -160 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 -140 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 -120 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 -100 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 -6 -70 0 0 3.0616 0 5 0 20 0 0 box3u8p.dat
1 16 0 0 -40 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 -20 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 20 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 -6 70 0 0 3.0616 0 5 0 20 0 0 box3u8p.dat
1 16 0 0 100 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 120 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 140 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 160 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 0 180 1 0 0 0 1 0 0 0 1 s\4350s02.dat
1 16 0 -6 203 0 0 3.0616 0 5 0 -13 0 0 box3u5p.dat

Status:

Needs More Votes (F)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/4350s01.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Archived Part Events:

None

Rene Rechthaler [Blechtaler]

initially submitted the part.

2025-05-07 17:20:23

added the third internal rib

Rene Rechthaler [Blechtaler]

made the following comment.

2025-05-07 17:22:31

also added a !Help for the batteries (u9199), should I add a shortcut with them? (like the code pilot)
