Unofficial File parts/s/32004s01.dat
File Header:

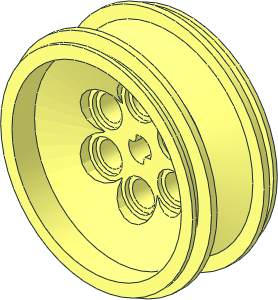

0 ~Wheel Rim 18 x 41 Model Team - Common Geometry
0 Name: s\32004s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2026-05-12 [MagFors] Reshaped
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32004s02.dat
1 16 0 0 0 .5 .866 0 -.866 .5 0 0 0 1 s\32004s02.dat
1 16 0 0 0 -.5 .866 0 -.866 -.5 0 0 0 1 s\32004s02.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\32004s02.dat
1 16 0 0 0 -.5 -.866 0 .866 -.5 0 0 0 1 s\32004s02.dat
1 16 0 0 0 .5 -.866 0 .866 .5 0 0 0 1 s\32004s02.dat
0 // Axlehole
1 16 0 0 20 0 0 1 1 0 0 0 -20 0 axl4hole.dat
1 16 0 0 20 0 0 1 1 0 0 0 -1 0 axl4hol2.dat
1 16 0 0 0 0 0 1 1 0 0 0 -1 0 axl4hol2.dat
0 // Conical Surface Closing
1 16 0 0 0 6 0 0 0 0 6 0 1 0 4-4ndis.dat
1 16 0 0 0 6 0 0 0 0 -6 0 1 0 1-16chrd.dat
1 16 0 0 0 0 0 -6 6 0 0 0 1 0 1-16chrd.dat
1 16 0 0 0 -6 0 0 0 0 6 0 1 0 1-16chrd.dat
1 16 0 0 0 0 0 6 -6 0 0 0 1 0 1-16chrd.dat
1 16 0 0 20 6 0 0 0 0 -6 0 -1 0 1-16chrd.dat
1 16 0 0 20 0 0 -6 6 0 0 0 -1 0 1-16chrd.dat
1 16 0 0 20 -6 0 0 0 0 6 0 -1 0 1-16chrd.dat
1 16 0 0 20 0 0 6 -6 0 0 0 -1 0 1-16chrd.dat
3 16 0 11 0 -6 6 0 -9.5268 5.5 0
3 16 0 6 0 -6 6 0 0 11 0
3 16 0 6 0 0 11 0 6 6 0
3 16 6 6 0 0 11 0 9.5263 5.5 0
3 16 6 0 0 6 6 0 9.5263 5.5 0
3 16 6 0 0 9.5263 5.5 0 9.5264 -5.5 0
3 16 6 0 0 9.5264 -5.5 0 6 -6 0
3 16 6 -6 0 9.5264 -5.5 0 0 -11 0
3 16 6 -6 0 0 -11 0 0 -6 0
3 16 0 -6 0 0 -11 0 -6 -6 0
3 16 -6 -6 0 0 -11 0 -9.5274 -5.5 0
3 16 -6 -6 0 -9.5274 -5.5 0 -6 0 0
3 16 -6 0 0 -9.5274 -5.5 0 -9.5268 5.5 0
3 16 -6 0 0 -9.5268 5.5 0 -6 6 0
0 // Flat Side Closing - Axlehole
1 16 0 0 20 2 0 0 0 0 -2 0 -1 0 3-8ring3.dat
1 16 0 0 20 -2 0 0 0 0 2 0 -1 0 3-8ring3.dat
1 16 0 0 20 6 0 0 0 0 6 0 -1 0 1-8tang.dat
1 16 0 0 20 -6 0 0 0 0 -6 0 -1 0 1-8tang.dat
4 16 6 0 20 8 0 20 7.3346 2.8028 20 6 1.1934 20
3 16 5.5434 2.2962 20 6 1.1934 20 7.3346 2.8028 20
4 16 4.2426 4.2426 20 5.0868 3.399 20 6.0947 4.9505 20 5.6568 5.6568 20
4 16 7.3346 2.8028 20 6.0947 4.9505 20 5.0868 3.399 20 5.5434 2.2962 20
4 16 -4.2427 -4.2428 20 -5.0868 -3.399 20 -6.0946 -4.9506 20 -5.6568 -5.6568 20
4 16 -5.0868 -3.399 20 -5.5433 -2.2962 20 -7.3346 -2.8029 20 -6.0946 -4.9506 20
4 16 -6 0 20 -8 0 20 -7.3346 -2.8029 20 -6 -1.1934 20
3 16 -5.5433 -2.2962 20 -6 -1.1934 20 -7.3346 -2.8029 20
1 16 0 0 9 8 0 0 0 0 -8 0 11 0 3-8cylo.dat
1 16 0 0 9 -8 0 0 0 0 8 0 11 0 3-8cylo.dat
1 16 7.6673 1.4014 14.5 -.3327 -1 0 1.4014 0 0 0 0 5.5 rect2p.dat
1 16 5.8758 5.3037 14.5 .219 -1 0 -.3532 0 0 0 0 -5.5 rect2p.dat
1 16 -5.8757 -5.3037 14.5 .2189 1 0 -.3531 0 0 0 0 5.5 rect2p.dat
1 16 -7.6673 -1.4015 14.5 -.3327 1 0 1.4015 0 0 0 0 -5.5 rect2p.dat
1 16 7.3196 5.6577 14.5 0 0 1.2249 0 -1 .7072 5.5 0 0 rect.dat
1 16 8.5595 3.51 14.5 -1.2249 0 0 -.7072 1 0 0 0 -5.5 rect.dat
1 16 -8.5595 -3.5101 14.5 0 0 -1.2249 0 -1 -.7072 5.5 0 0 rect.dat
1 16 -7.3195 -5.6578 14.5 1.2249 0 0 .7072 1 0 0 0 -5.5 rect.dat
1 16 0 10.5821 14.5 -1.2398 0 0 0 1 0 0 0 -5.5 rect2p.dat
1 16 9.1646 -5.2909 14.5 -.6199 0 0 -1.0737 -1 0 0 0 5.5 rect2p.dat
1 16 0 -10.5821 14.5 1.2398 0 0 0 -1 0 0 0 -5.5 rect2p.dat
1 16 -9.1646 5.2909 14.5 -.6199 0 0 -1.0737 1 0 0 0 -5.5 rect2p.dat
4 16 -7.3346 -2.8029 20 -9.7843 -4.2173 20 -8.5445 -6.365 20 -6.0946 -4.9506 20
4 16 8.5445 6.365 20 6.0947 4.9505 20 7.3346 2.8028 20 9.7841 4.2176 20
5 24 -8 0 20 -8 0 9 -7.3346 -2.803 20 -7.3912 3.0616 20
5 24 -5.6568 -5.6568 20 -5.6568 -5.6568 9 -3.0616 -7.3912 20 -6.0946 -4.9506 20
5 24 5.6568 5.6568 20 5.6568 5.6568 9 3.0616 7.3912 20 6.0947 4.9505 20
5 24 8 0 20 8 0 9 7.3912 -3.0616 20 7.3346 2.8028 20
5 24 -1.2395 -10.5821 20 -1.2395 -10.5821 9 -3.6354 -11.2233 20 1.24 -10.5821 20
5 24 1.24 -10.5821 20 1.24 -10.5821 9 -1.2395 -10.5821 20 3.6357 -11.2235 20
5 24 -9.7845 4.2172 20 -9.7844 4.2172 9 -11.5377 2.4631 20 -8.5446 6.3645 20
5 24 -8.5446 6.3645 20 -8.5446 6.3645 9 -7.9021 8.76 20 -9.7845 4.2172 20
5 24 -1.24 10.5821 20 -1.24 10.5821 9 -3.6357 11.2235 20 1.2395 10.5821 20
5 24 1.2395 10.5821 20 1.2395 10.5821 9 3.6354 11.2233 20 -1.24 10.5821 20
5 24 8.5446 -6.3645 9 8.5446 -6.3645 20 7.9021 -8.76 12 9.7845 -4.2172 9
5 24 9.7845 -4.2172 9 9.7844 -4.2172 20 8.5446 -6.3645 20 11.5377 -2.4631 20
0 // Circular Part
0 BFC INVERTNEXT
1 16 0 0 14 45 0 0 0 0 -45 0 8 0 48\4-4cylo.dat
1 16 0 0 22 5 0 0 0 0 -5 0 -1 0 48\4-4ring9.dat
1 16 0 0 22 1 0 0 0 0 -1 0 -1 0 48\4-4ring50.dat
1 16 0 0 20 51 0 0 0 0 -51 0 2 0 48\4-4cylo.dat
1 16 0 0 20 1 0 0 0 0 -1 0 1 0 48\4-4ring47.dat
1 16 0 0 20 3 0 0 0 0 -3 0 1 0 48\4-4ring16.dat
1 16 0 0 15 47 0 0 0 0 -47 0 5 0 48\4-4cylo.dat
1 16 0 0 15 1 0 0 0 0 -1 0 -1 0 48\4-4ring47.dat
1 16 0 0 15 6 0 0 0 0 -6 0 -1 0 48\4-4ring8.dat
1 16 0 0 12 54 0 0 0 0 -54 0 3 0 48\4-4cylo.dat
1 16 0 0 12 6 0 0 0 0 -6 0 1 0 48\4-4ring8.dat
1 16 0 0 12 48 0 0 0 0 -48 0 1 0 48\4-4edge.dat
1 16 0 0 5.4118 1 0 0 0 0 -1 0 -.4118 0 48\4-4con31.dat
1 16 0 0 12 16 0 0 0 0 -16 0 -6.5882 0 48\4-4con2.dat
1 16 0 0 -3 34 0 0 0 0 -34 0 3 0 48\4-4cylo.dat
1 16 0 0 3 31 0 0 0 0 -31 0 2 0 48\4-4cylo.dat
1 16 0 0 0 2 0 0 0 0 -2 0 2 0 48\4-4con16.dat
1 16 0 0 2 1 0 0 0 0 -1 0 1 0 48\4-4con31.dat
1 16 0 0 -13 48 0 0 0 0 -48 0 4 0 48\4-4cylo.dat
1 16 0 0 -3.8572 2 0 0 0 0 -2 0 .8571 0 48\4-4con17.dat
1 16 0 0 -7.7143 9 0 0 0 0 -9 0 3.8572 0 48\4-4con4.dat
1 16 0 0 -9 3 0 0 0 0 -3 0 1.2857 0 48\4-4con15.dat
1 16 0 0 -16 54 0 0 0 0 -54 0 3 0 48\4-4cylo.dat
1 16 0 0 -23 51 0 0 0 0 -51 0 2 0 48\4-4cylo.dat
1 16 0 0 -21 47 0 0 0 0 -47 0 5 0 48\4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -23 45 0 0 0 0 -45 0 12 0 48\4-4cylo.dat
1 16 0 0 -23 5 0 0 0 0 -5 0 1 0 48\4-4ring9.dat
1 16 0 0 -23 1 0 0 0 0 -1 0 1 0 48\4-4ring50.dat
1 16 0 0 -16 1 0 0 0 0 -1 0 1 0 48\4-4ring47.dat
1 16 0 0 -16 6 0 0 0 0 -6 0 1 0 48\4-4ring8.dat
1 16 0 0 -13 1 0 0 0 0 -1 0 -1 0 48\4-4ring47.dat
1 16 0 0 -13 6 0 0 0 0 -6 0 -1 0 48\4-4ring8.dat
1 16 0 0 -21 1 0 0 0 0 -1 0 -1 0 48\4-4ring47.dat
1 16 0 0 -21 3 0 0 0 0 -3 0 -1 0 48\4-4ring16.dat
5 24 16 27.7125 20 16 27.7125 9 12.2467 29.5661 20 19.4789 25.3866 20
5 24 15 25.9805 20 15 25.9805 9 11.4812 27.7182 20 18.2615 23.8 20
5 24 32 0 20 32 0 9 31.7283 4.1773 20 31.7248 -4.176 20
5 24 30 0 20 30 0 9 29.7452 3.9162 20 29.742 -3.915 20
5 24 16 -27.713 20 16 -27.713 9 19.4816 -25.3888 20 12.2459 -29.5626 20
5 24 15 -25.981 20 15 -25.981 9 18.264 -23.802 20 11.4805 -27.715 20
5 24 -16 -27.713 20 -16 -27.713 9 -19.4789 -25.3866 20 -12.2467 -29.5661 20
5 24 -15 -25.981 20 -15 -25.981 9 -18.2615 -23.8 20 -11.4812 -27.7182 20
5 24 -32 0 20 -32 0 9 -31.7248 4.176 20 -31.7283 -4.1773 20
5 24 -30 0 20 -30 0 9 -29.742 3.915 20 -29.7452 -3.9162 20
5 24 -16 27.712 20 -16 27.712 9 -12.2459 29.5626 20 -19.4816 25.3888 20
5 24 -15 25.98 20 -15 25.98 9 -18.264 23.802 20 -11.4805 27.715 20
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| Holly-Wood | Certify |
Official parents and subparts
Part Events:
2021-03-15 21:30:02
2021-03-16 09:20:02
I don't understand usage of axlehol7.dat. It make the hole needlessly complex, would better use cyli+quads...
2021-04-17 16:00:01
I find a cross section of this part very strange.
Is it correct that this is a flat surface? Only based on few images, but I think it is a conical surface.
1 12 0 0 12 45 0 0 0 0 45 0 -1 0 4-4disc.dat
And I think the tip of the spokes are to narrow.
0 !LPE DISTANCE 5 6.97854 -44.39611 12 -6.97904 -44.39754 12
https://www.steinpalast.eu/media/image/5f/3c/a2/15355.jpg
http://media.peeron.com/pics/inv/custpics/32004a.1119203367.jpg
Is it correct that this is a flat surface? Only based on few images, but I think it is a conical surface.
1 12 0 0 12 45 0 0 0 0 45 0 -1 0 4-4disc.dat
And I think the tip of the spokes are to narrow.
0 !LPE DISTANCE 5 6.97854 -44.39611 12 -6.97904 -44.39754 12
https://www.steinpalast.eu/media/image/5f/3c/a2/15355.jpg
http://media.peeron.com/pics/inv/custpics/32004a.1119203367.jpg
2021-04-19 20:55:02
I don't have this part.
I did the second version based on the forum request.
I took the existing part, which was very detailed, and based on them I re-did them keeping the existing geometry.
NWPerry got them?
I did the second version based on the forum request.
I took the existing part, which was very detailed, and based on them I re-did them keeping the existing geometry.
NWPerry got them?
2021-04-19 21:20:01
A cross section of the very similar rim 32020 makes more sense.
2021-04-20 05:15:01
I don't have the part either, I'm afraid. When I attempted this part I didn't have the good idea to subfile both the existing and the new part, and I didn't notice the conical profile either. Although now that it's been pointed out, I agree it makes sense.
2021-04-20 10:00:01
I have got the 32020, agreed the two share pretty much the same geometry. Unfortunately their origin is not the same, that a pity.
I will add the conical surface to the other side as well. Actually it is pretty logical that this surface must be conical, as the amount of ABS would be too much for a proper cooling, leaving sunken marks.
this gets on my to do list...
I will add the conical surface to the other side as well. Actually it is pretty logical that this surface must be conical, as the amount of ABS would be too much for a proper cooling, leaving sunken marks.
this gets on my to do list...
2021-04-20 10:05:01
it feels like opening a can of wormss when you touch and rework an existing part :-)
2021-04-20 14:05:01
I can't help but feel partly responsible. :-)
Update ring primitives via script. This will not reset the vote status of the part.
Reading through the comment I got the feeling that this needs a make-over so I'm gonna hold it.
2024-11-07 15:37:12
do we need the venting hole?
i only have the B version (from the 5563) and i cant match that geometry to my part (the small bridges to the center are diagonal, and the axlehole is flipped)
i only have the B version (from the 5563) and i cant match that geometry to my part (the small bridges to the center are diagonal, and the axlehole is flipped)
2025-05-02 22:01:23
would a quarter subpart help in avoiding rotating artifacts?
Added a conical inside. Had to reshape the spokes.
checked my real part, found some errors (checked RB pic for T1, but I have T2)
-axlehole is mirrored (the two teeth are the other way)
-rear support from axlehole to pinhole is diagonal
-axlehole is mirrored (the two teeth are the other way)
-rear support from axlehole to pinhole is diagonal
2026-05-13 20:26:31
replaced axlehole prims
2026-05-26 10:19:25
* Rotated rects (FMEO)
2026-06-09 13:48:47
