Official File parts/s/71682s02.dat
File Header:

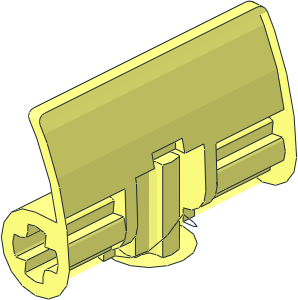

0 ~Technic Panel Curved 3 x 2 x 1 without top and front
0 Name: s\71682s02.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Subpart UPDATE 2023-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05
Show contents
0 // Axlehole 1
1 16 0 0 -30 0 0 1 1 0 0 0 18 0 axl3hole.dat
1 16 0 0 -30 3 0 0 0 0 3 0 1 0 3-4ring2.dat
1 16 0 0 -30 6 0 0 0 0 -6 0 1 0 1-4ndis.dat
1 16 0 0 -30 6 0 0 0 0 -6 0 1 0 4-4ering.dat
1 16 0 0 -12 0 0 -3 3 0 0 0 -1 0 2-4ring2.dat
1 16 0 0 -12 0 0 -6 -6 0 0 0 -1 0 2-4ering.dat
1 16 0 0 -12 0 0 6 6 0 0 0 -1 0 1-4ering.dat
4 16 8.336 -8.558 -30 6 -6 -30 6 0 -30 9 0 -30
4 16 0 -9 -30 0 -6 -30 6 -6 -30 5.6648 -9 -30
3 16 5.6648 -9 -30 6 -6 -30 8.336 -8.558 -30
1 16 0 0 -30 9 0 0 0 0 9 0 1 0 3-4edge.dat
1 16 0 0 -12 0 0 -9 9 0 0 0 1 0 2-4edge.dat
1 16 0 0 -30 0 0 -9 -9 0 0 0 18 0 2-4cyli.dat
1 16 0 0 0 9 0 0 0 1 9 0 0 -9 1-4edge.dat
1 16 2.8324 -9 -21 0 0 2.8324 0 1 0 -9 0 0 rect3.dat
4 16 2.296 -5.543 -12 0 -6 -12 0 -9 -12 5.6648 -9 -12
3 16 2.791 -5.213 -12 2.296 -5.543 -12 5.6648 -9 -12
3 16 4.243 -4.243 -12 2.791 -5.213 -12 5.6648 -9 -12
3 16 4.243 -4.243 -12 5.6648 -9 -12 5.213 -2.791 -12
3 16 5.213 -2.791 -12 5.6648 -9 -12 5.543 -2.296 -12
3 16 5.543 -2.296 -12 5.6648 -9 -12 6 0 -12
0 BFC INVERTNEXT
1 16 0 0 -12 6 0 0 0 0 6 0 3 0 1-4cylo.dat
1 16 5.8324 -4.5 -10.5 -.1676 0 0 -4.5 -1 0 0 0 1.5 rect2p.dat
1 16 0 7.5 -10.5 0 1 0 0 0 1.5 1.5 0 0 rect.dat
1 16 0 0 -9 6 0 0 0 0 6 0 1 0 1-4chrd.dat
4 16 0 -10 -9 0 6 -9 6 0 -9 5.6648 -9 -9
3 16 5.436874 -10 -9 0 -10 -9 5.6648 -9 -9
2 24 5.436874 -10 -9 5.6648 -9 -9
2 24 5.436874 -10 -9 0 -10 -9
5 24 5.6648 -9 -12 5.6648 -9 -9 3.848 -16.971 -30 6 0 -9
0 // Axlehole 2
1 16 0 0 30 0 0 1 1 0 0 0 -18 0 axl3hole.dat
1 16 0 0 30 3 0 0 0 0 3 0 -1 0 3-4ring2.dat
1 16 0 0 30 6 0 0 0 0 -6 0 -1 0 1-4ndis.dat
1 16 0 0 30 6 0 0 0 0 -6 0 -1 0 4-4ering.dat
1 16 0 0 12 0 0 -3 3 0 0 0 1 0 2-4ring2.dat
1 16 0 0 12 0 0 -6 -6 0 0 0 1 0 2-4ering.dat
1 16 0 0 12 0 0 6 6 0 0 0 1 0 1-4ering.dat
4 16 6 0 30 6 -6 30 8.336 -8.558 30 9 0 30
4 16 6 -6 30 0 -6 30 0 -9 30 5.6648 -9 30
3 16 6 -6 30 5.6648 -9 30 8.336 -8.558 30
1 16 0 0 30 9 0 0 0 0 9 0 -1 0 3-4edge.dat
1 16 0 0 12 0 0 -9 9 0 0 0 -1 0 2-4edge.dat
1 16 0 0 30 0 0 -9 -9 0 0 0 -18 0 2-4cyli.dat
1 16 0 0 0 9 0 0 0 1 9 0 0 9 1-4edge.dat
1 16 2.8324 -9 21 0 0 2.8324 0 1 0 9 0 0 rect3.dat
4 16 0 -9 12 0 -6 12 2.296 -5.543 12 5.6648 -9 12
3 16 2.296 -5.543 12 2.791 -5.213 12 5.6648 -9 12
3 16 2.791 -5.213 12 4.243 -4.243 12 5.6648 -9 12
3 16 5.6648 -9 12 4.243 -4.243 12 5.213 -2.791 12
3 16 5.6648 -9 12 5.213 -2.791 12 5.543 -2.296 12
3 16 5.6648 -9 12 5.543 -2.296 12 6 0 12
0 BFC INVERTNEXT
1 16 0 0 12 6 0 0 0 0 6 0 -3 0 1-4cylo.dat
1 16 5.8324 -4.5 10.5 -.1676 0 0 -4.5 -1 0 0 0 -1.5 rect2p.dat
1 16 0 7.5 10.5 0 1 0 0 0 1.5 -1.5 0 0 rect.dat
1 16 0 0 9 6 0 0 0 0 6 0 -1 0 1-4chrd.dat
4 16 6 0 9 0 6 9 0 -10 9 5.6648 -9 9
3 16 0 -10 9 5.436874 -10 9 5.6648 -9 9
2 24 5.436874 -10 9 5.6648 -9 9
2 24 5.436874 -10 9 0 -10 9
5 24 5.6648 -9 12 5.6648 -9 9 3.848 -16.971 30 6 0 9
0 // Centre Axlehole
1 16 0 10 0 -3 0 0 0 -1 0 0 0 -3 4-4ring2.dat
1 16 0 10 0 -6 0 0 0 -1 0 0 0 -6 4-4ering.dat
1 16 0 -10 0 0 0 -3 0 1 0 3 0 0 2-4ring2.dat
1 16 0 -10 0 0 0 -6 0 1 0 6 0 0 2-4ering.dat
1 16 0 10 0 -1 0 0 0 -20 0 0 0 1 axl3hole.dat
1 16 0 10 0 0 0 -9 0 -1 0 9 0 0 2-4cyli.dat
1 16 0 10 0 -9 0 0 0 -1 0 0 0 -9 4-4edge.dat
1 16 0 9 0 0 0 -9 0 -19 0 9 0 0 2-4cyli.dat
1 16 0 -10 0 0 0 -9 0 -1 0 9 0 0 2-4edge.dat
4 16 4 -10 -2 3 -10 -2.3333 3 -10 2.5536 5.213 -10 2.791
4 16 4 -10 -2 5.213 -10 2.791 5.543 -10 2.296 5.602 -10 -2
3 16 5.602 -10 -2 5.543 -10 2.296 6 -10 0
1 16 4.5 -11.5 -4 -1.5 0 0 0 0 -1.5 0 8 0 1-4cylo.dat
1 16 4.5 -11.5 -4 -1.5 0 0 0 0 -1.5 0 1 0 1-4chrd.dat
1 16 4.5 -11.5 4 -1.5 0 0 0 0 -1.5 0 -1 0 1-4chrd.dat
2 24 3 -10 -4 5.4369 -10 -4
2 24 3 -10 4 5.4369 -10 4
1 16 4.62655 -13 0 0 0 .12655 0 1 0 -4 0 0 rect3.dat
1 16 3 -10.75 0 0 1 0 0 0 .75 4 0 0 rect3.dat
2 24 4.7531 -13 -4 5.4369 -10 -4
2 24 5.4369 -10 4 4.7531 -13 4
4 16 5.4369 -10 4 3 -10 4 3 -11.5 4 4.5 -13 4
3 16 4.5 -13 4 4.7531 -13 4 5.4369 -10 4
3 16 4.7531 -13 -4 4.5 -13 -4 5.4369 -10 -4
4 16 5.4369 -10 -4 4.5 -13 -4 3 -11.5 -4 3 -10 -4
4 16 0 -10 -6 0 -10 -9 5.436874 -10 -9 2 -10 -5.602
3 16 2.296 -10 -5.543 2 -10 -5.602 5.436874 -10 -9
3 16 2.296 -10 -5.543 5.436874 -10 -9 4.243 -10 -4.243
4 16 4.4052 -10 -4 4.243 -10 -4.243 5.436874 -10 -9 5.4369 -10 -4
2 24 5.4369 -10 -4 5.436874 -10 -9
4 16 5.436874 -10 9 0 -10 9 0 -10 6 2 -10 5.602
3 16 2 -10 5.602 2.296 -10 5.543 5.436874 -10 9
3 16 5.436874 -10 9 2.296 -10 5.543 4.243 -10 4.243
4 16 5.436874 -10 9 4.243 -10 4.243 4.4053 -10 4 5.4369 -10 4
2 24 5.4369 -10 4 5.436874 -10 9
0 // Curved Pane
4 16 4.7531 -13 -4 3.848 -16.971 -30 3.848 -16.971 30 4.7531 -13 4
4 16 5.4369 -10 -4 5.436874 -10 -9 3.848 -16.971 -30 4.7531 -13 -4
3 16 5.436874 -10 -9 5.6648 -9 -9 5.6648 -9 -12
4 16 3.848 -16.971 -30 5.436874 -10 -9 5.6648 -9 -12 5.6648 -9 -30
4 16 3.848 -16.971 30 5.436874 -10 9 5.4369 -10 4 4.7531 -13 4
4 16 3.848 -16.971 30 5.6648 -9 30 5.6648 -9 12 5.436874 -10 9
3 16 5.6648 -9 9 5.436874 -10 9 5.6648 -9 12
2 24 3.848 -16.971 30 5.6648 -9 30
2 24 3.848 -16.971 -30 5.6648 -9 -30
5 24 3.848 -16.971 -30 4.7531 -13 -4 5.4369 -10 -4 3.848 -16.971 30
5 24 3.848 -16.971 -30 5.436874 -10 -9 4.7531 -13 -4 5.6648 -9 -12
5 24 5.6648 -9 -12 5.436874 -10 -9 5.6648 -9 -9 3.848 -16.971 -30
5 24 3.848 -16.971 30 4.7531 -13 4 5.4369 -10 4 3.848 -16.971 -30
5 24 3.848 -16.971 30 5.436874 -10 9 5.6648 -9 9 4.7531 -13 4
5 24 5.436874 -10 9 5.6648 -9 12 5.6648 -9 9 3.848 -16.971 30
1 16 2.1015 -21.0335 0 1.7465 0 0 4.0625 -1 0 0 0 -30 rect2p.dat
1 16 -.641 -26.7235 0 -.996 0 0 -1.6275 -1 0 0 0 30 rect2p.dat
4 16 .355 -25.096 -30 3.848 -16.971 -30 6.365 -16.971 -30 3.121 -25.096 -30
4 16 -1.637 -28.351 -30 .355 -25.096 -30 3.121 -25.096 -30 1.228 -28.351 -30
4 16 6.365 -16.971 -30 3.848 -16.971 -30 5.6648 -9 -30 8.336 -8.558 -30
4 16 6.365 -16.971 30 3.848 -16.971 30 .355 -25.096 30 3.121 -25.096 30
4 16 3.121 -25.096 30 .355 -25.096 30 -1.637 -28.351 30 1.228 -28.351 30
4 16 5.6648 -9 30 3.848 -16.971 30 6.365 -16.971 30 8.336 -8.558 30
2 24 1.228 -28.351 -30 3.121 -25.096 -30
2 24 3.121 -25.096 -30 6.365 -16.971 -30
2 24 6.365 -16.971 -30 8.336 -8.558 -30
2 24 8.336 -8.558 -30 9 0 -30
2 24 1.228 -28.351 30 3.121 -25.096 30
2 24 3.121 -25.096 30 6.365 -16.971 30
2 24 6.365 -16.971 30 8.336 -8.558 30
2 24 8.336 -8.558 30 9 0 30
5 24 3.848 -16.971 30 3.848 -16.971 -30 5.6648 -9 -30 .355 -25.096 -30
5 24 .355 -25.096 30 .355 -25.096 -30 3.848 -16.971 -30 -1.637 -28.351 -30
5 24 8.336 -8.558 30 8.336 -8.558 -30 9 0 -30 6.365 -16.971 -30
5 24 6.365 -16.971 -30 6.365 -16.971 30 8.336 -8.558 30 3.121 -25.096 30
5 24 3.121 -25.096 30 3.121 -25.096 -30 6.365 -16.971 -30 1.228 -28.351 -30
5 24 9 0 -30 9 0 30 8.3151 3.4443 30 8.336 -8.558 30
0 // Curved End
1 16 1.228 -28.351 -28.022 0 -2.865 -.779 0 0 -1.339 -1.978 0 0 1-4cylo.dat
1 16 1.228 -28.351 -28.022 0 -1 -.779 0 0 -1.339 -1.978 0 0 1-4chrd.dat
1 16 -1.637 -28.351 -28.022 0 1 -.779 0 0 -1.339 -1.978 0 0 1-4chrd.dat
1 16 1.228 -28.351 28.022 0 -2.865 -.779 0 0 -1.339 1.978 0 0 1-4cylo.dat
1 16 1.228 -28.351 28.022 0 -1 -.779 0 0 -1.339 1.978 0 0 1-4chrd.dat
1 16 -1.637 -28.351 28.022 0 1 -.779 0 0 -1.339 1.978 0 0 1-4chrd.dat
4 16 1.228 -28.351 30 .449 -29.69 28.022 .449 -29.69 -28.022 1.228 -28.351 -30
1 16 -.9835 -29.69 0 0 0 -1.4325 0 1 0 28.022 0 0 rect2p.dat
4 16 -2.416 -29.69 -28.022 -2.416 -29.69 28.022 -1.637 -28.351 30 -1.637 -28.351 -30
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-01-10 20:35:02
2023-01-10 22:10:02
With this orientation it can't be "top and front"
btw
They should use capital letters "Top and Front" and I would like to see "Surface" added to the description.
btw
They should use capital letters "Top and Front" and I would like to see "Surface" added to the description.
2023-09-14 14:57:01
2023-10-27 02:14:57
2023-10-31 03:34:39
Release 2023-05
