File Detail parts/s/71682s02.dat

Unofficial File parts/s/71682s02.dat

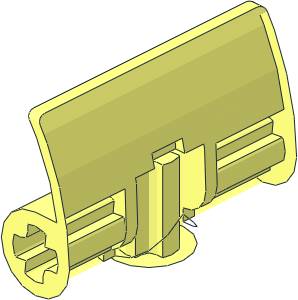

~Technic Panel Curved 3 x 2 x 1 without Top and Front

File Header:

0 ~Technic Panel Curved  3 x  2 x  1 without Top and Front
0 Name: s\71682s02.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05
0 !HISTORY 2025-02-26 [GeraldLasser] Subfiled

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\71682s03.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\71682s03.dat

0 // Centre Axlehole
1 16 0 10 0 -3 0 0 0 -1 0 0 0 -3 4-4ring2.dat
1 16 0 10 0 -6 0 0 0 -1 0 0 0 -6 4-4ering.dat
1 16 0 -10 0 0 0 -3 0 1 0 3 0 0 2-4ring2.dat
1 16 0 -10 0 0 0 -6 0 1 0 6 0 0 2-4ering.dat
1 16 0 10 0 -1 0 0 0 -20 0 0 0 1 axl3hole.dat
1 16 0 -10 0 0 0 -9 0 -1 0 -9 0 0 2-4edge.dat
1 16 0 -10 0 0 0 -9 0 2 0 -9 0 0 2-4cyli.dat

2 24 5.436874 -10 -9 5.6648 -9 -9
2 24 5.436874 -10 -9 0 -10 -9
4 16 5.436874 -10 -9 0 -10 -9 0 -8 -9 5.6648 -9 -9
4 16 5.4369 -10 -4 5.436874 -10 -9 3.848 -16.971 -30 4.7531 -13 -4
4 16 3.848 -16.971 -30 5.436874 -10 -9 5.6648 -9 -9 5.6648 -9 -12
4 16 6 0 -9 6 0 -12 5.6648 -9 -12 5.6648 -9 -9
4 16 0 -8 -9 0 6 -9 6 0 -9 5.6648 -9 -9
4 16 5.6648 -9 12 6 0 12 6 0 9 5.6648 -9 9
4 16 6 0 9 0 6 9 0 -8 9 5.6648 -9 9
2 24 6 0 9 5.6648 -9 9
2 24 5.6648 -9 -9 6 0 -9
5 24 5.6648 -9 12 5.6648 -9 9 6 0 12 5.436874 -10 9
5 24 5.6648 -9 -12 5.6648 -9 -9 3.848 -16.971 -30 6 0 -9

2 24 5.6648 -9 9 5.436874 -10 9
2 24 0 -10 9 5.436874 -10 9
4 16 0 -8 9 0 -10 9 5.436874 -10 9 5.6648 -9 9
4 16 3.848 -16.971 30 5.436874 -10 9 5.4369 -10 4 4.7531 -13 4
4 16 5.6648 -9 9 5.436874 -10 9 3.848 -16.971 30 5.6648 -9 12

4 16 4 -10 -2 3 -10 -2.3333 3 -10 2.5536 5.213 -10 2.791
4 16 4 -10 -2 5.213 -10 2.791 5.543 -10 2.296 5.602 -10 -2
3 16 5.602 -10 -2 5.543 -10 2.296 6 -10 0
1 16 4.5 -11.5 -4 -1.5 0 0 0 0 -1.5 0 8 0 1-4cylo.dat
1 16 4.5 -11.5 -4 -1.5 0 0 0 0 -1.5 0 1 0 1-4chrd.dat
1 16 4.5 -11.5 4 -1.5 0 0 0 0 -1.5 0 -1 0 1-4chrd.dat
2 24 3 -10 -4 5.4369 -10 -4
2 24 3 -10 4 5.4369 -10 4
1 16 4.62655 -13 0 0 0 .12655 0 1 0 -4 0 0 rect3.dat
1 16 3 -10.75 0 0 1 0 0 0 .75 4 0 0 rect3.dat
2 24 4.7531 -13 -4 5.4369 -10 -4
2 24 5.4369 -10 4 4.7531 -13 4
4 16 5.4369 -10 4 3 -10 4 3 -11.5 4 4.5 -13 4
3 16 4.5 -13 4 4.7531 -13 4 5.4369 -10 4
3 16 4.7531 -13 -4 4.5 -13 -4 5.4369 -10 -4
4 16 5.4369 -10 -4 4.5 -13 -4 3 -11.5 -4 3 -10 -4

4 16 0 -10 -6 0 -10 -9 5.436874 -10 -9 2 -10 -5.602
3 16 2.296 -10 -5.543 2 -10 -5.602 5.436874 -10 -9
3 16 2.296 -10 -5.543 5.436874 -10 -9 4.243 -10 -4.243
4 16 4.4052 -10 -4 4.243 -10 -4.243 5.436874 -10 -9 5.4369 -10 -4
2 24 5.4369 -10 -4 5.436874 -10 -9
4 16 5.436874 -10 9 0 -10 9 0 -10 6 2 -10 5.602
3 16 2 -10 5.602 2.296 -10 5.543 5.436874 -10 9
3 16 5.436874 -10 9 2.296 -10 5.543 4.243 -10 4.243
4 16 5.436874 -10 9 4.243 -10 4.243 4.4053 -10 4 5.4369 -10 4
2 24 5.4369 -10 4 5.436874 -10 9

0 // Curved Pane
4 16 4.7531 -13 -4 3.848 -16.971 -30 3.848 -16.971 30 4.7531 -13 4
1 16 2.1015 -21.0335 0 1.7465 0 0 4.0625 -1 0 0 0 -30 rect2p.dat
1 16 -.641 -26.7235 0 -.996 0 0 -1.6275 -1 0 0 0 30 rect2p.dat

5 24 3.848 -16.971 30 3.848 -16.971 -30 5.6648 -9 -30 .355 -25.096 -30
5 24 .355 -25.096 30 .355 -25.096 -30 3.848 -16.971 -30 -1.637 -28.351 -30
5 24 8.336 -8.558 30 8.336 -8.558 -30 9 0 -30 6.365 -16.971 -30
5 24 6.365 -16.971 -30 6.365 -16.971 30 8.336 -8.558 30 3.121 -25.096 30
5 24 3.121 -25.096 30 3.121 -25.096 -30 6.365 -16.971 -30 1.228 -28.351 -30
5 24 9 0 -30 9 0 30 8.3151 3.4443 30 8.336 -8.558 30

0 // Curved End
4 16 1.228 -28.351 30 .449 -29.69 28.022 .449 -29.69 -28.022 1.228 -28.351 -30
1 16 -.9835 -29.69 0 0 0 -1.4325 0 1 0 28.022 0 0 rect2p.dat
4 16 -2.416 -29.69 -28.022 -2.416 -29.69 28.022 -1.637 -28.351 30 -1.637 -28.351 -30
5 24 -1.637 -28.351 30 -1.637 -28.351 -30 .355 -25.096 30 -2.416 -29.69 -28.022

Status:

Needs More Votes (F)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/71682s03.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Archived Part Events:

None

Gerald Lasser [GeraldLasser]

initially submitted the part.

2025-02-26 22:49:28

prepare for 7101

Magnus Forsberg [MagFors]

edited the part header.

2025-02-27 16:43:39

Header Edits

description:
~Technic Panel Curved 3 x 2 x 1 without top and front
to
~Technic Panel Curved 3 x 2 x 1 without Top and Front

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2025-03-02 16:14:51

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2025-03-02 16:19:31

Massimo Maso [Sirio]

posted a vote of Certify.

2025-07-12 21:24:14

Massimo Maso [Sirio]

posted a vote of Hold.

2025-07-21 17:43:06

Looking back at it, I found these points of improvement.

You can remove the points:
5.6648 -8 -9
5.6648 -8 9
removing the line completely:
1 16 0 -10 0 0 0 -9 0 2 0 -9 0 0 2-4cyli.dat
by connecting the vertices to:
5.6648 -9 -9
5.6648 -9 9
and redoing the rest of the necessary connections.
In this way it also removes two conditional lines that have no sense of existence.

Missing conditional lines
5 24 5.6648 -9 12 5.6648 -9 9 ...
5 24 5.6648 -9 -9 5.6648 -9 -12 ...

Edger also points out:
5 24 -1.637 -28.351 -30 -1.637 -28.351 30 .355 -25.096 30 -2.416 -29.69 -28.022
but it is due to approximations. So you can do anything.

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2025-07-21 20:32:42

added condlines

cannot remove
1 16 0 -10 0 0 0 -9 0 2 0 -9 0 0 2-4cyli.dat
as the necessary changes in s03 would impact compatibility with 7101s02

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2025-07-22 21:34:53

bit of reorganisation
