Unofficial File parts/s/32333s01.dat
File Header:

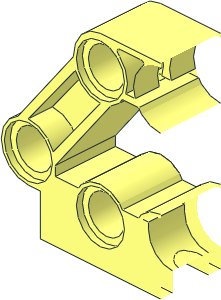

0 ~Technic Brick 5 x 3 x 1 with 8 Pegholes and 2 Studs - Half
0 Name: s\32333s01.dat
0 Author: Vincent Messenet [Cheenzo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\32333s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32333s02.dat
1 16 -20 50 10 0 0 -9 -9 0 0 0 -20 0 1-8cylo.dat
1 16 -20 50 10 0 0 9 -9 0 0 0 -20 0 1-8cylo.dat
4 16 -26.36396 43.63604 10 -27.27682 45.00212 10 -27.27682 45.00212 -10 -26.36396 43.63604 -10
4 16 -12.72319 45 -10 -12.72319 45 10 -13.6361 43.6361 10 -13.6361 43.6361 -10
5 24 -26.36396 43.63604 10 -26.36396 43.63604 -10 -27.27682 45.00212 -10 -23.4443 41.6849 -10
5 24 -13.6361 43.6361 10 -13.6361 43.6361 -10 -12.72319 45 -10 -16.555824848 41.684849864 -10
1 16 -44 42 10 0 0 -9 9 0 0 0 -20 0 7-16cylo.dat
0 BFC INVERTNEXT
1 16 -20 50 8 -6 0 0 0 0 -6 0 -16 0 4-4cyli.dat
1 16 -20 50 -6 -8 0 0 0 0 8 0 12 0 2-4cylo.dat
1 16 0 50 -6 -8 0 0 0 0 8 0 12 0 1-4cylo.dat
1 16 -20 56.8 0 1 0 0 0 -1.8 0 0 0 1 stud3a.dat
0 BFC INVERTNEXT
1 16 -10 48 0 0 0 -2 0 2 0 6 0 0 box4o4a.dat
1 16 -10 45 0 -2.72319 0 0 0 1 0 0 0 -10 rect.dat
4 16 -12 48 6 -8 48 6 -8 48 -6 -12 48 -6
0 BFC INVERTNEXT
1 16 -32 55.999 0 0 -4 0 0 0 -8 6 0 0 box2-5.dat
1 16 -28 49 0 0 1 0 -1 0 0 0 0 6 rect2p.dat
4 16 -40 64 -10 -40 64 10 -36 64 6 -36 64 -6
1 16 -40 57.5 0 0 1 0 0 0 6.5 10 0 0 rect.dat
1 16 -35 43.5 0 0 -1 0 0 0 -1.5 10 0 0 rect.dat
1 16 -31.13841 45.00106 0 0 0 3.86159 0 1 .00106 -10 0 0 rect3.dat
1 16 -25.775 30.16 0 0 0 9.225 0 -1 -11.84 10 0 0 rect3.dat
0 BFC INVERTNEXT
1 16 -44 42 8 -6 0 0 0 0 -6 0 -16 0 4-4cyli.dat
1 16 -44 42 10 0 0 -9 -9 0 0 0 -20 0 2-4cyli.dat
1 16 -42 51 0 2 0 0 0 -1 0 0 0 -10 rect2p.dat
1 16 -38.22215 21.84245 0 0 0 -9.22215 0 1 11.84245 10 0 0 rect.dat
0 BFC INVERTNEXT
1 16 -20 10 8 -6 0 0 0 0 -6 0 -16 0 4-4cyli.dat
1 16 -10 0 0 10 0 0 0 1 0 0 0 10 rect2p.dat
1 16 -20 10 10 -9 0 0 0 0 -10 0 -20 0 1-4cyli.dat
1 16 -10 15 0 0 0 -2.72 0 -1 0 -10 0 0 rect.dat
1 16 0 50 10 0 0 -9 -9 0 0 0 -20 0 1-8cylo.dat
4 16 -6.364 43.636 10 -7.27681 45 10 -7.27681 45 -10 -6.364 43.636 -10
5 24 -6.364 43.636 10 -6.364 43.636 -10 -7.27681 45 -10 -3.4443 41.6849 -10
1 16 0 10 10 0 0 -9 9 0 0 0 -20 0 1-8cylo.dat
4 16 -6.3639 16.3639 -10 -7.28 15 -10 -7.28 15 10 -6.3639 16.3639 10
5 24 -6.3639 16.3639 10 -6.3639 16.3639 -10 -7.28 15 -10 -3.4443 18.3151 -10
1 16 -20 10 10 6.36396 0 -6.36396 6.36396 0 6.36396 0 -20 0 1-16cyli.dat
4 16 -12.72 15 -10 -13.63604 16.36396 -10 -13.64 16.36 10 -12.72 15 10
5 24 -13.64 16.36 10 -13.6361 16.3639 -10 -12.72 15 -10 -16.555824848 18.315150136 -10
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2023-03-06 08:07:10
2023-03-08 08:17:54
2023-03-19 21:40:53
Adapted to s02
Maybe replace some of the cyli primitives, to get rid of the hidden surfaces.
bleeding cyliat bottom, see main file for adice to get rid of it
1 16 -20 50 10 -8.30974 0 3.44201 -3.44201 0 -8.30974 0 -20 0 3-8cyli.dat
This one at the outside can easily be reduced from 2-4 to 7-16 to avoid a bleed
1 16 -44 42 10 0 0 -9 -9 0 0 0 -20 0 2-4cyli.dat
(remove those in s02
1 16 -44 42 10 -9 0 0 0 0 9 0 -1 0 1-4edge.dat
1 16 -44 42 10 -9 0 0 0 0 -9 0 -1 0 3-16edge.dat
)
-> replace with
1 16 -44 42 10 0 0 -9 9 0 0 0 -20 0 7-16cylo.dat
this bleeds :
1 16 -44 42 10 9 0 0 0 0 -9 0 -20 0 1-4cyli.dat
1 16 -20 10 10 0 0 9 -9 0 0 0 -20 0 3-4cyli.dat
fix in s02 , add the missing surface here
1 16 -20 50 10 -8.30974 0 3.44201 -3.44201 0 -8.30974 0 -20 0 3-8cyli.dat
This one at the outside can easily be reduced from 2-4 to 7-16 to avoid a bleed
1 16 -44 42 10 0 0 -9 -9 0 0 0 -20 0 2-4cyli.dat
(remove those in s02
1 16 -44 42 10 -9 0 0 0 0 9 0 -1 0 1-4edge.dat
1 16 -44 42 10 -9 0 0 0 0 -9 0 -1 0 3-16edge.dat
)
-> replace with
1 16 -44 42 10 0 0 -9 9 0 0 0 -20 0 7-16cylo.dat
this bleeds :
1 16 -44 42 10 9 0 0 0 0 -9 0 -20 0 1-4cyli.dat
1 16 -20 10 10 0 0 9 -9 0 0 0 -20 0 3-4cyli.dat
fix in s02 , add the missing surface here
Fixed bleeding issues
