Unofficial File parts/40145.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

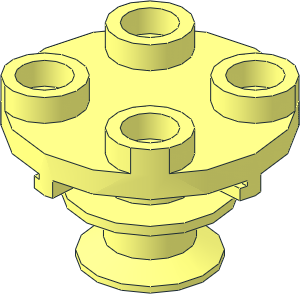

0 Plate 2 x 2 Round with Rotation Stem
0 Name: 40145.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Position Tire at 0 19 0 0 -1 0 0 0 1 -1 0 0
0 BFC CERTIFY CCW
0 !CATEGORY Plate
0 !HISTORY 2021-04-28 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2023-05-22 [ejboer] File preparation for LDraw Parts TrackerShow file code:
1 16 10 0 10 1 0 0 0 1 0 0 0 1 stud6.dat
1 16 -10 0 -10 -1 0 0 0 1 0 0 0 -1 stud6.dat
1 16 10 0 -10 0 0 1 0 1 0 -1 0 0 stud6.dat
1 16 -10 0 10 0 0 -1 0 1 0 1 0 0 stud6.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\40145s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\40145s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\40145s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\40145s01.dat
1 16 0 3.75 0 6.25 0 0 0 8.75 0 0 0 6.25 4-4cylo.dat
1 16 0 12.5 0 6.25 0 0 0 1 0 0 0 6.25 4-4ndis.dat
1 16 0 12.5 0 8.48528 0 8.48528 0 1 0 -8.48528 0 8.48528 1-4chrd.dat
1 16 0 12.5 0 -8.48528 0 -8.48528 0 1 0 8.48528 0 -8.48528 1-4chrd.dat
1 16 0 12.5 0 -8.48528 0 8.48528 0 1 0 -8.48528 0 -8.48528 1-4chrd.dat
1 16 0 12.5 0 8.48528 0 -8.48528 0 1 0 8.48528 0 8.48528 1-4chrd.dat
4 16 6.25 12.5 6.25 8.4852 12.5 8.4852 -8.48528 12.5 8.48528 0 12.5 6.25
3 16 0 12.5 6.25 -8.48528 12.5 8.48528 -6.25 12.5 6.25
4 16 -8.48528 12.5 -8.48528 -6.25 12.5 0 -6.25 12.5 6.25 -8.48528 12.5 8.48528
3 16 -6.25 12.5 0 -8.48528 12.5 -8.48528 -6.25 12.5 -6.25
4 16 -6.25 12.5 -6.25 -8.48528 12.5 -8.48528 8.4852 12.5 -8.4852 0 12.5 -6.25
3 16 0 12.5 -6.25 8.4852 12.5 -8.4852 6.25 12.5 -6.25
4 16 8.4852 12.5 8.4852 6.25 12.5 0 6.25 12.5 -6.25 8.4852 12.5 -8.4852
3 16 6.25 12.5 0 8.4852 12.5 8.4852 6.25 12.5 6.25
0 BFC INVERTNEXT
1 16 0 3.75 0 4 0 0 0 20.25 0 0 0 4 4-4cylo.dat
1 16 0 12.5 0 12 0 0 0 1.5 0 0 0 12 4-4cylo.dat
1 16 0 14 0 2 0 0 0 -1 0 0 0 2 4-4ring5.dat
1 16 0 14 0 10 0 0 0 1 0 0 0 10 4-4cylo.dat
1 16 0 15 0 -.625 0 0 0 .33333 0 0 0 .625 4-4con15.dat
1 16 0 15.333 0 -3.125 0 0 0 1.66667 0 0 0 3.125 4-4con2.dat
1 16 0 17 0 6.25 0 0 0 4 0 0 0 6.25 4-4cylo.dat
1 16 0 23 0 -.625 0 0 0 -.33333 0 0 0 -.625 4-4con15.dat
1 16 0 22.667 0 -3.125 0 0 0 -1.66667 0 0 0 -3.125 4-4con2.dat
1 16 0 23 0 10 0 0 0 1 0 0 0 10 4-4cylo.dat
1 16 0 24 0 4 0 0 0 -1 0 0 0 4 4-4ring1.dat
1 16 0 24 0 2 0 0 0 -1 0 0 0 2 4-4ring4.datStatus
Awaiting Admin Review (CCN)
Current Votes:
Willy Tschager [Holly-Wood]
Takeshi Takahashi [RainbowDolphin]
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Evert-Jan Boer [ejboer]
initially submitted the part.
2023-05-22 10:43:16
Gerald Lasser [GeraldLasser]
posted a vote of Hold
2023-06-02 20:05:22
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2023-06-04 10:31:16
Several changes. Looked at parts like 2655 and 4032a for the bleeding, seems to happen in other parts as well. Decided to inline the prims to avoid this issue.
Magnus Forsberg [MagFors]
posted a vote of Hold
2023-06-11 21:17:35
Missing edge lines:
2 5 6.012 6.5 1.195 6.25 6.5 0
2 5 6.25 6.5 0 5.774 6.5 -2.392
2 5 -5.774 6.5 2.392 -6.25 6.5 0
2 5 -6.25 6.5 0 -6.012 6.5 -1.195
2 5 6.012 6.5 1.195 6.25 6.5 0
2 5 6.25 6.5 0 5.774 6.5 -2.392
2 5 -5.774 6.5 2.392 -6.25 6.5 0
2 5 -6.25 6.5 0 -6.012 6.5 -1.195
Javier Orquera [kuramapika1]
made the following comment.
2023-06-12 17:44:00
Is this part missing the "Lego" logo inside the studs?
Rene Rechthaler [Blechtaler]
made the following comment.
2023-06-12 17:54:37
yes the logo is missing, but it would have to be added manually because the studs are rotated...
Magnus Forsberg [MagFors]
posted a vote of Hold
2023-06-12 20:06:51
I made a stud primitive, with logo info, but for the solid 2x2-studs, stug15-2x2.
That file contain logo info, if a user wants to activate it.
How many round 2x2-parts with hollow studs could benefit from a similar prim?
That file contain logo info, if a user wants to activate it.
How many round 2x2-parts with hollow studs could benefit from a similar prim?
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2023-06-18 19:17:07
modified subpart, removed some double lines
Willy Tschager [Holly-Wood]
posted a vote of Certify
2025-08-25 11:22:43
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2025-08-25 11:46:03
1 256 0 19 0 0 -1 0 0 0 1 -1 0 0 59895.dat
this disc might bleed through
1 16 0 0 0 20 0 0 0 1 0 0 0 20 4-4disc.dat
there should be no edge line where these surfaces meet the large cyli
4 16 -1.273 3.75 -19.747 -1.273 4.6 -19.747 0 6.5 -20 0 3.75 -20
4 16 1.273 6.5 -19.747 1.273 3.75 -19.747 0 3.75 -20 0 6.5 -20
This cyli is slightly too large, it intersects with a side grove of the tyre (should be R= 12)
1 16 0 12.5 0 12.25 0 0 0 1.5 0 0 0 12.25 4-4cylo.dat
To fill this area
1 16 0 12.5 0 .25 0 0 0 1 0 0 0 .25 4-4rin25.dat
1 16 0 12.5 0 .5 0 0 0 1 0 0 0 .5 4-4rin13.dat
1 16 0 12.5 0 3.5 0 0 0 1 0 0 0 3.5 4-4ring2.dat
1 16 0 12.5 0 1.75 0 0 0 1 0 0 0 1.75 4-4ring6.dat
usa a NDIS/CHRD combo this will use less surfaces
