Unofficial File parts/u9608c04.dat
Part Attributes:
Base Part: u9608.dat
External Sites:
View on BrickLink
File Header:

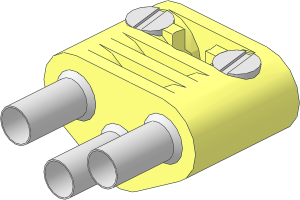

0 Electric Plug Triple with Hollow Pin (Type 1) with Cable End (Complete)
0 Name: u9608c04.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink x466ac200, Peeron x466a, Set 708-1
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9608c01.dat
1 375 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9609s01.dat
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfilesparts/u9608c01.dat (Needs 2 More Votes)
parts/s/u9609s01.dat (Needs 2 More Votes)
parts/u9608.dat (Needs 2 More Votes)
parts/u9238.dat (Awaiting Admin Review)
parts/u9609.dat (Needs 2 More Votes)
parts/s/u9608s01.dat (Needs 2 More Votes)
parts/s/u9238s01.dat (Awaiting Admin Review)
parts/s/u9608s03.dat (Awaiting Admin Review)
parts/s/u9608s02.dat (Needs 2 More Votes)
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2023-09-15 15:28:56
got the position wrong
I don't mind the compact design using a very short cable, but I would prefer at least one loop of the cable, indicating it being longer IRL.
Shouldn't the length be in the description, instead of added as Help info?
Why doesn't the structure of this cable follow the other examples we already have?
You need to make a set of plugs, including a cable end, and then use those in this complete part.
The short cable stub is allways a Part, while the Cable End is a subpart. Both should use thier own unique partnumber.
Shouldn't the length be in the description, instead of added as Help info?
Why doesn't the structure of this cable follow the other examples we already have?
You need to make a set of plugs, including a cable end, and then use those in this complete part.
The short cable stub is allways a Part, while the Cable End is a subpart. Both should use thier own unique partnumber.
I suggest that you aim to make this file fit with the existing ones.
Showing long cables is always a compromise.
To illustrate the shortcut usage for users as simple as possible, usually a shortened version is contained in the library, please see this example:
0 Electric Plugs Review Summary
0 Name: Electric.ldr
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Unofficial_Model
1 7 20 12 0 1 0 0 0 1 0 0 0 1 765c03.dat
1 1 -230 12 0 1 0 0 0 1 0 0 0 1 u9228c04.dat
1 7 -180 12 0 1 0 0 0 1 0 0 0 1 u9228c04.dat
1 7 120 12 0 1 0 0 0 1 0 0 0 1 70423c02.dat
1 7 170 12 0 1 0 0 0 1 0 0 0 1 70423c02.dat
1 7 -30 12 0 1 0 0 0 1 0 0 0 1 2775c03.dat
1 7 -80 12 0 1 0 0 0 1 0 0 0 1 766bc03.dat
1 7 70 12 0 1 0 0 0 1 0 0 0 1 70423c02.dat
1 7 -130 12 0 1 0 0 0 1 0 0 0 1 766bc03.dat
1 1 -397 12 0 1 0 0 0 1 0 0 0 1 567c03.dat
1 4 -357 12 0 1 0 0 0 1 0 0 0 1 567c03.dat
1 4 -277 12 0 1 0 0 0 1 0 0 0 1 592c03.dat
1 4 -180 0 225 -1 0 0 0 1 0 0 0 -1 265ac01.dat
1 14 -130 0 225 -1 0 0 0 1 0 0 0 -1 265ac01.dat
1 14 70 0 225 -1 0 0 0 1 0 0 0 -1 265bc01.dat
1 15 -80 0 225 -1 0 0 0 1 0 0 0 -1 266ac01.dat
1 15 120 0 225 -1 0 0 0 1 0 0 0 -1 266bc01.dat
1 0 170 0 225 -1 0 0 0 1 0 0 0 -1 266bc02.dat
1 1 -317 12 0 1 0 0 0 1 0 0 0 1 592c03.dat
1 1 -557 12 0 1 0 0 0 1 0 0 0 1 567c06.dat
1 4 -517 12 0 1 0 0 0 1 0 0 0 1 567c06.dat
1 4 -437 12 0 1 0 0 0 1 0 0 0 1 592c06.dat
1 1 -477 12 0 1 0 0 0 1 0 0 0 1 592c06.dat
1 5 170 4 -186 1 0 0 0 1 0 0 0 1 2757.dat
1 47 223 12 0 1 0 0 0 1 0 0 0 1 933c02.dat
Additionally, coiled shortcuts can be added which will be more useful for instructions generation
where a visually appealing, coiled up cable can be more wanted.
Showing long cables is always a compromise.
To illustrate the shortcut usage for users as simple as possible, usually a shortened version is contained in the library, please see this example:
0 Electric Plugs Review Summary
0 Name: Electric.ldr
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Unofficial_Model
1 7 20 12 0 1 0 0 0 1 0 0 0 1 765c03.dat
1 1 -230 12 0 1 0 0 0 1 0 0 0 1 u9228c04.dat
1 7 -180 12 0 1 0 0 0 1 0 0 0 1 u9228c04.dat
1 7 120 12 0 1 0 0 0 1 0 0 0 1 70423c02.dat
1 7 170 12 0 1 0 0 0 1 0 0 0 1 70423c02.dat
1 7 -30 12 0 1 0 0 0 1 0 0 0 1 2775c03.dat
1 7 -80 12 0 1 0 0 0 1 0 0 0 1 766bc03.dat
1 7 70 12 0 1 0 0 0 1 0 0 0 1 70423c02.dat
1 7 -130 12 0 1 0 0 0 1 0 0 0 1 766bc03.dat
1 1 -397 12 0 1 0 0 0 1 0 0 0 1 567c03.dat
1 4 -357 12 0 1 0 0 0 1 0 0 0 1 567c03.dat
1 4 -277 12 0 1 0 0 0 1 0 0 0 1 592c03.dat
1 4 -180 0 225 -1 0 0 0 1 0 0 0 -1 265ac01.dat
1 14 -130 0 225 -1 0 0 0 1 0 0 0 -1 265ac01.dat
1 14 70 0 225 -1 0 0 0 1 0 0 0 -1 265bc01.dat
1 15 -80 0 225 -1 0 0 0 1 0 0 0 -1 266ac01.dat
1 15 120 0 225 -1 0 0 0 1 0 0 0 -1 266bc01.dat
1 0 170 0 225 -1 0 0 0 1 0 0 0 -1 266bc02.dat
1 1 -317 12 0 1 0 0 0 1 0 0 0 1 592c03.dat
1 1 -557 12 0 1 0 0 0 1 0 0 0 1 567c06.dat
1 4 -517 12 0 1 0 0 0 1 0 0 0 1 567c06.dat
1 4 -437 12 0 1 0 0 0 1 0 0 0 1 592c06.dat
1 1 -477 12 0 1 0 0 0 1 0 0 0 1 592c06.dat
1 5 170 4 -186 1 0 0 0 1 0 0 0 1 2757.dat
1 47 223 12 0 1 0 0 0 1 0 0 0 1 933c02.dat
Additionally, coiled shortcuts can be added which will be more useful for instructions generation
where a visually appealing, coiled up cable can be more wanted.
2023-09-18 10:15:14
would this be better? Length and position as the other cables...
1 1 0 0 -184 1 0 0 0 1 0 0 0 1 u9608c01.dat
1 1 0 0 184 -1 0 0 0 1 0 0 0 -1 u9608c03.dat
1 16 0 0 -184 -1 0 0 0 1 0 0 0 1 s\u9608c04s02.dat
1 16 0 0 -154 0 0 -1 1 0 0 0 308 0 s\u9608c04s01.dat
1 16 0 0 184 -1 0 0 0 1 0 0 0 -1 s\u9608c04s02.dat
may still need renumbering...
and u9608c06 is the coiled version, is this ok or should it use a bigger radius?
1 1 0 0 -184 1 0 0 0 1 0 0 0 1 u9608c01.dat
1 1 0 0 184 -1 0 0 0 1 0 0 0 -1 u9608c03.dat
1 16 0 0 -184 -1 0 0 0 1 0 0 0 1 s\u9608c04s02.dat
1 16 0 0 -154 0 0 -1 1 0 0 0 308 0 s\u9608c04s01.dat
1 16 0 0 184 -1 0 0 0 1 0 0 0 -1 s\u9608c04s02.dat
may still need renumbering...
and u9608c06 is the coiled version, is this ok or should it use a bigger radius?
2023-10-05 23:05:07
swapped cable/plug coloring
2024-05-31 15:27:21
