Unofficial File parts/u9608c05.dat
Part Attributes:
Base Part: u9608.dat
External Sites:
View on BrickLink
File Header:

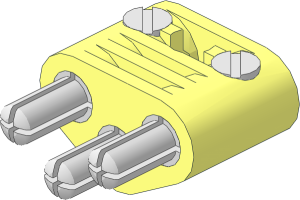

0 Electric Plug Triple with Cross-Cut Pin (Type 2) and Cable End (Complete)
0 Name: u9608c05.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink x466ac200, Peeron x466a, Set 708-1
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9608c02.dat
1 375 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9609s01.dat
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2023-09-15 15:28:56
got the position wrong
I don't mind the compact design using a very short cable, but I would prefer at least one loop of the cable, indicating it being longer IRL.
Shouldn't the length be in the description, instead of added as Help info?
Why doesn't the structure of this cable follow the other examples we already have?
You need to make a set of plugs, including a cable end, and then use those in this complete part.
The short cable stub is allways a Part, while the Cable End is a subpart. Both should use thier own unique partnumber.
Shouldn't the length be in the description, instead of added as Help info?
Why doesn't the structure of this cable follow the other examples we already have?
You need to make a set of plugs, including a cable end, and then use those in this complete part.
The short cable stub is allways a Part, while the Cable End is a subpart. Both should use thier own unique partnumber.
2023-10-05 23:05:06
swapped cable/plug coloring
2024-05-31 15:20:40
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
