Unofficial File parts/u9224b.dat
Part Attributes:
File Header:

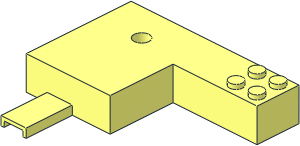

0 ~Train Track 12V Tapered Point Left Housing
0 Name: u9224b.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Train
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2023-10-01 [Blechtaler] with cable slot and adapted to the reworked u9226
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9224bs01.dat
1 16 40 0 10 1 0 0 0 1 0 0 0 1 stug-2x2.dat
Status:
Awaiting Admin Review (CCN)
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Current Votes:
| User | Vote |
|---|---|
| Holly-Wood | Certify |
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
Rene Rechthaler [Blechtaler]
initially submitted the part.
2023-10-05 23:00:16
Steffen [Steffen]
made the following comment.
2024-02-24 12:14:13
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2024-05-31 15:23:51
Rene Rechthaler [Blechtaler]
made the following comment.
2024-11-15 14:46:05
its not completely the same, the original version was flatter (but I checked the real part and corrected it)
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-27 13:49:39
should this one get renamed to u9224a because the dimensions changed?
Magnus Forsberg [MagFors]
made the following comment.
2024-12-27 14:09:03
Yes.
I think this needs a new number, not u9224a, or b.
Looks like you have moved the studs. The height is different. Right?
I think this needs a new number, not u9224a, or b.
Looks like you have moved the studs. The height is different. Right?
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-27 14:37:49
no, the studs are the same...
the height got changed from 24 to 30LDU (in the subfile)
should the origin then also get moved to the center of the studs?
(i have these parts, but no numbers visible...)
Electric and manual switches have the same top, just different internals.
(no need for a different number, u9224a is ok)
(should I then take ownership for the s01, changed pretty much everything there)
the height got changed from 24 to 30LDU (in the subfile)
should the origin then also get moved to the center of the studs?
(i have these parts, but no numbers visible...)
Electric and manual switches have the same top, just different internals.
(no need for a different number, u9224a is ok)
(should I then take ownership for the s01, changed pretty much everything there)
Magnus Forsberg [MagFors]
made the following comment.
2024-12-27 15:16:13
Ok, the stug is still on the same vertical level, but how will the change in height affect the assemblies using this part?
Magnus Forsberg [MagFors]
made the following comment.
2024-12-27 15:19:25
... how will it affect the _official_ assemblies using this part?
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-27 15:42:06
i will have to redo all other official assemblies anyways because of u9226 (split in a+b)
all these reworked assemblies also need a reworked s\864s01.dat
all these reworked assemblies also need a reworked s\864s01.dat
Orion Pobursky [OrionP]
renamed the part.
2025-04-24 16:30:07
Willy Tschager [Holly-Wood]
posted a vote of Certify
2025-09-30 08:25:20
Creative Commons Attribution License information
This part is copyright ©
Steffen
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Rene Rechthaler
however, I suggest to simplify the !HISTORY line to just
"added cable slot"
