File Detail parts/4757.dat

Unofficial File parts/4757.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

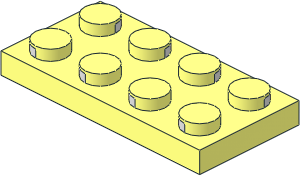

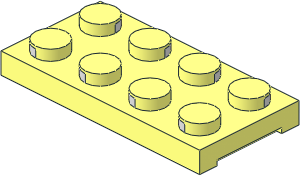

0 Electric Plate  2 x  4 with Contacts
0 Name: 4757.dat
0 Author: Remco Braak [remco1974]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 4757c01

0 !HISTORY 1997-09-29 [PTadmin] Official Update 1997-15
0 !HISTORY 1999-02-01 [PTadmin] Official Update 1999-01
0 !HISTORY 2007-07-08 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2017-09-02 [MagFors] bfc'd, changed colour on contacts
0 !HISTORY 2018-01-30 [PTadmin] Official Update 2018-01
0 !HISTORY 2024-02-06 [Steffen] used stugs

Show contents

1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stug4-1x3.dat
1 16 -36 6 0 0 -1 0 2 0 0 0 0 16 rect.dat
1 16 36 6 0 0 1 0 2 0 0 0 0 16 rect.dat

4 16 27 4 -4 27 4 4 36 4 8 36 4 -8
4 16 27 4 4 27 4 -4 18 4 -8 18 4 8
4 16 18 4 8 18 4 -8 9 4 -4 9 4 4
4 16 9 4 4 9 4 -4 0 4 -8 0 4 8
4 16 -36 4 -8 -36 4 8 -27 4 4 -27 4 -4
4 16 -18 4 8 -18 4 -8 -27 4 -4 -27 4 4
4 16 -9 4 4 -9 4 -4 -18 4 -8 -18 4 8
4 16 0 4 8 0 4 -8 -9 4 -4 -9 4 4

2 24 36 4 -8 27 4 -4
2 24 27 4 -4 18 4 -8
2 24 18 4 -8 9 4 -4
2 24 9 4 -4 0 4 -8
2 24 -36 4 -8 -27 4 -4
2 24 -27 4 -4 -18 4 -8
2 24 -18 4 -8 -9 4 -4
2 24 -9 4 -4 0 4 -8
2 24 36 4 8 27 4 4
2 24 27 4 4 18 4 8
2 24 18 4 8 9 4 4
2 24 9 4 4 0 4 8
2 24 -36 4 8 -27 4 4
2 24 -27 4 4 -18 4 8
2 24 -18 4 8 -9 4 4
2 24 -9 4 4 0 4 8

1 16 36 5.95 5 0 -1 0 0 0 1.95 1.5 0 0 recte3.dat
1 16 35.5 4 5 -0.5 0 0 0 3.9 0 0 0 1.5 box3u6.dat
1 16 33.5 4 5 1.5 0 1.5 0 3.9 0 -1.5 0 1.5 tri3a4.dat
1 16 36 5.95 -5 0 -1 0 0 0 1.95 1.5 0 0 recte3.dat
1 16 35.5 4 -5 -0.5 0 0 0 3.9 0 0 0 1.5 box3u6.dat
1 16 33.5 4 -5 1.5 0 1.5 0 3.9 0 -1.5 0 1.5 tri3a4.dat

1 16 -36 5.95 -5 0 1 0 0 0 1.95 -1.5 0 0 recte3.dat
1 16 -35.5 4 -5 0.5 0 0 0 3.9 0 0 0 -1.5 box3u6.dat
1 16 -33.5 4 -5 -1.5 0 -1.5 0 3.9 0 1.5 0 -1.5 tri3a4.dat
1 16 -36 5.95 5 0 1 0 0 0 1.95 -1.5 0 0 recte3.dat
1 16 -35.5 4 5 0.5 0 0 0 3.9 0 0 0 -1.5 box3u6.dat
1 16 -33.5 4 5 -1.5 0 -1.5 0 3.9 0 1.5 0 -1.5 tri3a4.dat

4 16 40 8 20 36 8 16 -36 8 16 -40 8 20
4 16 -40 8 -20 -36 8 -16 36 8 -16 40 8 -20
4 16 40 8 -20 36 8 -16 36 8 16 40 8 20
4 16 -40 8 20 -36 8 16 -36 8 -16 -40 8 -20
1 16 0 8 0 40 0 0 0 -8 0 0 0 20 box5.dat

1 16 -20 0 0 1 0 0 0 1 0 0 0 1 stugel-2x2.dat
1 16 20 0 0 1 0 0 0 1 0 0 0 1 stugel-2x2.dat

1 494 0 6 -16 36 0 0 0 0 2 0 -1 0 rect.dat
4 494 -36 4 -16 -36 4 -8 -27 4 -4 -27 4 -16
4 494 -27 4 -16 -27 4 -4 -18 4 -8 -18 4 -16
4 494 -18 4 -16 -18 4 -8 -9 4 -4 -9 4 -16
4 494 -9 4 -16 -9 4 -4 0 4 -8 0 4 -16
4 494 27 4 -16 27 4 -4 36 4 -8 36 4 -16
4 494 18 4 -16 18 4 -8 27 4 -4 27 4 -16
4 494 9 4 -16 9 4 -4 18 4 -8 18 4 -16
4 494 0 4 -16 0 4 -8 9 4 -4 9 4 -16

1 494 0 6 16 36 0 0 0 0 2 0 1 0 rect.dat
4 494 -27 4 16 -27 4 4 -36 4 8 -36 4 16
4 494 -18 4 16 -18 4 8 -27 4 4 -27 4 16
4 494 -9 4 16 -9 4 4 -18 4 8 -18 4 16
4 494 0 4 16 0 4 8 -9 4 4 -9 4 16
4 494 36 4 16 36 4 8 27 4 4 27 4 16
4 494 27 4 16 27 4 4 18 4 8 18 4 16
4 494 18 4 16 18 4 8 9 4 4 9 4 16
4 494 9 4 16 9 4 4 0 4 8 0 4 16

Status:

Needs More Votes (F)

This part has the following errors

All parts are required to be CC BY 4.0

Current Votes:

None

Official parents and subparts

Part Events:

Archived Part Events:

None

Steffen [Steffen]

initially submitted the part.

2024-02-07 04:42:34

Magnus Forsberg [MagFors]

made the following comment.

2024-02-26 15:59:01

Need to be re-created to get rid of 2.0 license author.
