Unofficial File parts/2894.dat
View official version of part
Part Attributes:

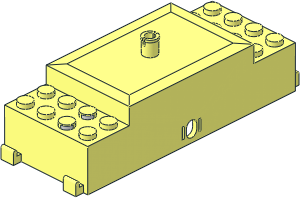

~Electric Train Motor  9V Top Cover
File Header:
0 ~Electric Train Motor 9V Top Cover 0 Name: 2894.dat 0 Author: Donald Sutter [technog] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03 0 !HISTORY 2024-02-06 [Steffen] used stugs, changed winding 0 !HISTORY 2025-09-24 [Blechtaler] subfiled, removed t-junctions
Show contents
0 // top 1 16 0 -4 0 0 0 1 0 1 0 1 0 0 connect4.dat 1 16 0 -4 0 6 0 0 0 4 0 0 0 6 4-4cyli.dat 0 BFC INVERTNEXT 1 16 0 -4 0 4 0 0 0 4 0 0 0 4 4-4cyli.dat 1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat 1 16 0 0 0 4 0 0 0 1 0 0 0 4 4-4edge.dat 1 16 0 0 0 30 0 0 0 1 0 0 0 50 rect.dat 2 24 40 1 -60 40 1 60 2 24 -40 1 -60 -40 1 60 4 16 40 1 60 30 0 50 30 0 -50 40 1 -60 4 16 -40 1 60 -30 0 50 30 0 50 40 1 60 4 16 -40 1 -60 -30 0 -50 -30 0 50 -40 1 60 4 16 40 1 -60 30 0 -50 -30 0 -50 -40 1 -60 2 24 30 0 -50 40 1 -60 2 24 30 0 50 40 1 60 2 24 -30 0 50 -40 1 60 2 24 -30 0 -50 -40 1 -60 0 BFC INVERTNEXT 1 16 0 8.5 -80 40 0 0 0 7.5 0 0 0 20 box2-5.dat 0 BFC INVERTNEXT 1 16 0 8.5 80 40 0 0 0 7.5 0 0 0 -20 box2-5.dat 1 16 0 16 -80 0 0 1 0 1 0 -1 0 0 stugel-2x2.dat 1 16 -30 16 -80 0 0 1 0 1 0 -1 0 0 stug-1x2.dat 1 16 30 16 -80 0 0 1 0 1 0 -1 0 0 stug-1x2.dat 1 16 -20 16 80 0 0 1 0 1 0 -1 0 0 stug-2x2.dat 1 16 20 16 80 0 0 1 0 1 0 -1 0 0 stug-2x2.dat 0 // sides 3 16 40 1 -60 40 36 0 40 1 60 3 16 -40 1 60 -40 36 0 -40 1 -60 4 16 -40 16 -100 -24 48 -100 24 48 -100 40 16 -100 4 16 -40 16 100 40 16 100 24 48 100 -24 48 100 1 16 0 51 100 24 0 0 0 0 3 0 -1 0 rect3.dat 1 16 0 51 -100 24 0 0 0 0 3 0 1 0 rect3.dat 0 // in+underside 0 BFC INVERTNEXT 1 16 0 20 0 36 0 0 0 -15 0 0 0 56 box3u4a.dat 0 BFC INVERTNEXT 1 16 0 37 -76 36 0 0 0 -17 0 0 0 -20 box2-5.dat 0 BFC INVERTNEXT 1 16 0 37 76 -36 0 0 0 -17 0 0 0 20 box2-5.dat 4 16 -36 54 -96 36 54 -96 24 54 -100 -24 54 -100 4 16 36 54 96 -36 54 96 -24 54 100 24 54 100 3 16 -36 36 0 -36 5 56 -36 5 -56 3 16 36 36 0 36 5 -56 36 5 56 0 // quarters 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2894s01.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\2894s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\2894s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\2894s01.dat
Status:
Not releaseable Needs More Votes (F) Needs More Votes (F)
This part has the following automated holds from the Parts Tracker
Current Votes:

None

Official parents and subparts
Part Events:
Archived Part Events:
Steffen [Steffen]
Senior Part Reviewer
initially submitted the part.
2024-02-10 21:32:15
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2024-02-26 15:57:45
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2025-07-23 13:59:59
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Hold.
2025-07-23 17:46:54
why is there a full edge at the bottom of the outer brackets?
also has lotsa t-junk
Rene Rechthaler [Blechtaler]
Part Header Editor
submitted a new version of the part.
2025-09-24 15:06:00
removed the edge, also subfiled and fixed t-junk
(should the wheel cutouts also get added? anyone with a broken/opened motor?)
Creative Commons Attribution License information

This part is copyright © Donald Sutter
Licensed under CC BY 4.0

Edits:
LDraw.org Parts Tracker, Steffen, Rene Rechthaler,
