File Detail parts/s/105645s01.dat

Unofficial File parts/s/105645s01.dat

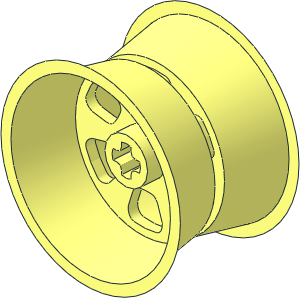

~Wheel 22 x 50 with Integral Smooth Racing Tyre Rim

File Header:

0 ~Wheel 22 x 50 with Integral Smooth Racing Tyre Rim
0 Name: s\105645s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\105645s03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\105645s03.dat
1 16 0 0 0 0.5 -0.86603 0 0.86603 0.5 0 0 0 1 s\105645s03.dat
1 16 0 0 0 -0.5 -0.86603 0 -0.86603 0.5 0 0 0 1 s\105645s03.dat
1 16 0 0 0 -0.5 -0.86603 0 0.86603 -0.5 0 0 0 1 s\105645s03.dat
1 16 0 0 0 0.5 -0.86603 0 -0.86603 -0.5 0 0 0 1 s\105645s03.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\105645s03.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\105645s03.dat
1 16 0 0 0 -0.5 0.86603 0 -0.86603 -0.5 0 0 0 1 s\105645s03.dat
1 16 0 0 0 0.5 0.86603 0 0.86603 -0.5 0 0 0 1 s\105645s03.dat
1 16 0 0 0 0.5 0.86603 0 -0.86603 0.5 0 0 0 1 s\105645s03.dat
1 16 0 0 0 -0.5 0.86603 0 0.86603 0.5 0 0 0 1 s\105645s03.dat
1 16 0 0 -2 0 0 9 9 0 0 0 -8 0 4-4cylo.dat
1 16 0 0 -10 0 0 3 3 0 0 0 1 0 4-4ring2.dat
1 16 0 0 2 0 0 9 9 0 0 0 8 0 4-4cylo.dat
1 16 0 0 10 0 0 3 3 0 0 0 -1 0 4-4ring2.dat
1 16 0 0 -10 1 0 0 0 0 -1 0 20 0 axlehole.dat
1 16 0 0 -10 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 0 10 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 0 -25 0 0 4.2 4.2 0 0 0 1 0 48\4-4ring8.dat
0 BFC INVERTNEXT
1 16 0 0 -25 0 0 4.2 4.2 0 0 0 23 0 48\4-4con7.dat
0 BFC INVERTNEXT
1 16 0 0 25 0 0 4.2 4.2 0 0 0 -23 0 48\4-4con7.dat
1 16 0 0 25 0 0 4.2 4.2 0 0 0 -1 0 48\4-4ring8.dat
1 16 0 0 -25 0 0 33.6 33.6 0 0 0 1 0 48\4-4edge.dat
1 16 0 0 -25 0 0 37.8 37.8 0 0 0 1 0 48\4-4edge.dat
1 16 0 0 25 0 0 33.6 33.6 0 0 0 -1 0 48\4-4edge.dat
1 16 0 0 25 0 0 37.8 37.8 0 0 0 -1 0 48\4-4edge.dat

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/105645s03.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
Cheenzo	Certify

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2024-03-13 19:12:56

Steffen [Steffen]

posted a vote of Hold.

2024-03-14 10:05:54

I think this should be a ~Part and not a Subpart :/

Steffen [Steffen]

cancelled their vote.

2024-03-14 15:04:34

removing hold: Philo told me at 105645p01.dat that this is 1 portion of a double-injection mould

Philippe Hurbain [Philo]

submitted a new version of the part.

2025-07-01 08:45:08

Modified to account for patterned and wide versions

Vincent Messenet [Cheenzo]

posted a vote of Certify.

2025-07-26 09:56:03
