File Detail parts/u9588.dat

Unofficial File parts/u9588.dat

Part Attributes:

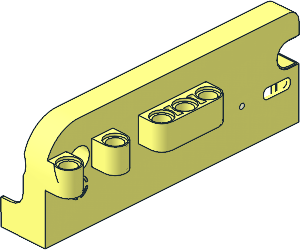

~Electric Powered Up Hub with 3 Integrated Motors and 6 Lights Case Side 1 (Needs Work)

File Header:

0 ~Electric Powered Up Hub with  3 Integrated Motors and  6 Lights Case Side  1 (Needs Work)
0 Name: u9588.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-10-08 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-10-17 [Philo] File preparation for LDraw Parts Tracker

Show contents

0 // Needs Work: Internal skin/details not modeled

1 16 -11 20 -80 0 0 -1 0 -1 0 -1 0 0 s\u9586s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9588s01.dat
0 BFC INVERTNEXT
1 16 -11 20 60 0 -3 0 0 0 2 2 0 0 4-4cylo.dat
1 16 -11 20 60 0 -1 0 0 0 2 2 0 0 4-4ndis.dat
1 47 -12 20 60 0 -1 0 0 0 2 2 0 0 4-4disc.dat
1 47 -12 20 60 0 -1 0 0 0 2 2 0 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 -11 19.1 98.2 0 -3 0 0 0 -3.28125 3.28125 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -11 20.9 98.2 0 -3 0 0 0 3.28125 3.28125 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -11 19.1 81.8 0 -3 0 0 0 -3.28125 -3.28125 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -11 20.9 81.8 0 -3 0 0 0 3.28125 -3.28125 0 0 1-4cylo.dat
1 16 -12.5 20 78.5188 1.5 0 0 0 0 0.9 0 -1 0 rect1.dat
1 16 -12.5 15.8188 90 1.5 0 0 0 -1 0 0 0 8.2 rect1.dat
1 16 -12.5 24.1813 90 1.5 0 0 0 1 0 0 0 8.2 rect1.dat
1 16 -12.5 20 101.4813 1.5 0 0 0 0 0.9 0 1 0 rect1.dat
1 16 -11 19.1 98.2 0 -1 0 0 0 -3.28125 3.28125 0 0 1-4ndis.dat
1 16 -11 20.9 98.2 0 -1 0 0 0 3.28125 3.28125 0 0 1-4ndis.dat
1 16 -11 19.1 81.8 0 -1 0 0 0 -3.28125 -3.28125 0 0 1-4ndis.dat
1 16 -11 20.9 81.8 0 -1 0 0 0 3.28125 -3.28125 0 0 1-4ndis.dat
4 16 -11 15.8188 101.4813 -11 10 109 -11 10 100 -11 15.8188 98.2
4 16 -11 15.8188 98.2 -11 10 100 -11 10 90 -11 15.8188 81.8
3 16 -11 10 90 -11 15.8188 78.5188 -11 15.8188 81.8
3 16 -11 10 109 -11 15.8188 101.4813 -11 19.1 101.4813
3 16 -11 51 109 -11 20.9 101.4813 -11 24.1813 101.4813
3 16 -11 24.1813 101.4813 -11 24.1813 98.2 -11 51 109
3 16 -11 51 109 -11 24.1813 81.8 -11 24.1813 78.5188
4 16 -11 10 109 -11 19.1 101.4813 -11 20.9 101.4813 -11 51 109
3 16 -11 51 109 -11 24.1813 98.2 -11 24.1813 81.8
4 16 -11 10 90 -11 18 58 -11 18 62 -11 15.8188 78.5188
4 16 -11 15.8188 78.5188 -11 18 62 -11 20 62 -11 19.1 78.5188
4 16 -11 20 62 -11 22 62 -11 24.1813 78.5188 -11 20.9 78.5188
3 16 -11 19.1 78.5188 -11 20 62 -11 20.9 78.5188
4 16 -11 24.1813 78.5188 -11 22 62 -11 22 58 -11 51 109
3 16 -11 18 58 -11 10 90 -11 28 -72
3 16 -11 18 58 -11 28 -72 -11 22 58
3 16 -11 22 58 -11 28 -72 -11 51 109
1 62 -14 20 60 0 -1 0 0 0 2 2 0 0 4-4disc.dat
1 62 -14 20 60 0 -1 0 0 0 2 2 0 0 4-4edge.dat

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/u9586s02.dat (Needs More Votes)
parts/s/u9588s01.dat (Needs More Votes)
parts/s/u9586s01.dat (Needs More Votes)
p/48/3-16ring14.dat (Awaiting Admin Review)

Current Votes:

None

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2024-10-19 09:54:13

Philippe Hurbain [Philo]

submitted a new version of the part.

2024-10-25 07:09:13

Corrected charging LED color.
