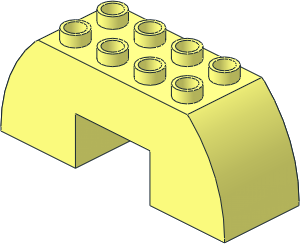

Duplo Arch 2 x 6 x 2 Curved Double with 2 x 2 Cutout on Bottom

File Header:

0 Duplo Arch  2 x  6 x  2 Curved Double with  2 x  2 Cutout on Bottom
0 Name: 11197.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\11197s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\11197s01.dat

0 // top
1 16 40 0 0 -1 0 0 0 2.75 0 0 0 -1 stug7-2x2.dat
1 16 -40 0 0 -1 0 0 0 2.75 0 0 0 -1 stug7-2x2.dat
1 16 0 0 0 -80 0 0 0 1 0 0 0 -40 rect.dat

0 // middle box
0 BFC INVERTNEXT
1 16 0 48 0 0 0 -40 0 -44 0 -36 0 0 box5-2p.dat

0 // middle tube
1 16 0 4 0 -1 0 0 0 -10 0 0 0 -1 stud8.dat

0 // middle bottom
4 16 40 48 40 40 48 36 -40 48 36 -40 48 40
2 24 40 48 40 -40 48 40
4 16 -40 48 -36 40 48 -36 40 48 -40 -40 48 -40
2 24 40 48 -40 -40 48 -40

0 // back face
4 16 80 0 -40 -80 0 -40 -40 48 -40 40 48 -40
4 16 -80 0 -40 -82.8017 2.1983 -40 -40 96 -40 -40 48 -40
4 16 -120 92 -40 -120 96 -40 -40 96 -40 -82.8017 2.1983 -40
4 16 80 0 -40 40 48 -40 40 96 -40 82.8017 2.1983 -40
4 16 120 92 -40 82.8017 2.1983 -40 40 96 -40 120 96 -40
1 16 7 92 -40 -127 0 0 0 0 -127 0 1 0 48\1-8chrd.dat
1 16 -7 92 -40 127 0 0 0 0 -127 0 1 0 48\1-8chrd.dat

0 // front face
4 16 -40 48 40 -80 0 40 80 0 40 40 48 40
4 16 -40 96 40 -82.8017 2.1983 40 -80 0 40 -40 48 40
4 16 -40 96 40 -120 96 40 -120 92 40 -82.8017 2.1983 40
4 16 40 96 40 40 48 40 80 0 40 82.8017 2.1983 40
4 16 40 96 40 82.8017 2.1983 40 120 92 40 120 96 40
1 16 7 92 40 -127 0 0 0 0 -127 0 -1 0 48\1-8chrd.dat
1 16 -7 92 40 127 0 0 0 0 -127 0 -1 0 48\1-8chrd.dat

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/11197s01.dat (Needs More Votes)

Current Votes:

User	Vote
Holly-Wood	Certify

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2024-11-01 17:13:06

Peter Blomberg [WUIt]

submitted a new version of the part.

2024-12-20 04:35:46

Reduced file size by halving subfile.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2025-01-01 17:18:03

* Wrong orientation. See:

https://library.ldraw.org/parts/23696

Peter Blomberg [WUIt]

made the following comment.

2025-03-05 22:26:16

I'm not so sure. Please see discussion forum thread https://forums.ldraw.org/thread-28480-post-55455.html

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-03-31 00:51:05

Updated orientation. Move also back face to main file.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2025-04-10 09:17:55

I beg you pardon holding this part again. I have to admit that your initial orientation was right. This has much more in common with the other brick or:

https://library.ldraw.org/parts/14979

than the slops. I would also consider this a some sort of arc:

https://forums.ldraw.org/thread-28741-post-57011.html#pid57011

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-04-11 05:46:07

Reverted orientation and updated description. Arch now mentioned in the description.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-04-11 09:21:26

Peter Blomberg [WUIt]

edited the part header.

2025-04-30 20:48:01

Header Edits

description:
Duplo Arch 2 x 6 x 2 Curved Double with 2 x 2 Cutout on Bottom
to
Duplo Arch 2 x 6 x 2 Curved Double with 2 x 2 Cutout on Bottom

Comment:
Added spaces in description
