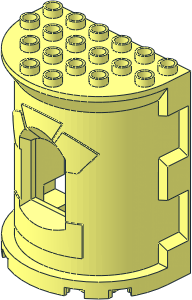

0 Duplo Building Wall 4 x 6 x 6 Curved Turret - Castle
0 Name: 52024.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Castle
Show contents
0 // surfaces shared between mirrored subparts
4 16 -2 288 -44 2 288 -44 2 288 -76 -2 288 -76
3 16 0 288 -80 -2 288 -76 2 288 -76
4 16 2 288 -44 -2 288 -44 -40 288 -40 40 288 -40
1 16 0 276 -40 40 0 0 0 0 12 0 -1 0 rect.dat
4 16 -120 0 80 120 0 80 116 4 80 -116 4 80
3 16 40 264 -40 -40 264 -40 0 264 -60
1 16 0 0 60 120 0 0 0 1 0 0 0 20 rect3.dat
1 16 0 4 60 116 0 0 0 -1 0 0 0 20 rect3.dat
3 16 -20 0 -30 0 0 -80 20 0 -30
4 16 -70 0 20 -20 0 -30 20 0 -30 70 0 20
4 16 -70 0 20 70 0 20 120 0 40 -120 0 40
3 16 0 4 -76 -116 4 40 116 4 40
0 // halves
1 16 0 264 0 1 0 0 0 1 0 0 0 1 s\52024s01.dat
1 16 0 264 0 -1 0 0 0 1 0 0 0 1 s\52024s01.dat
0 // studs on top
1 16 0 0 60 1 0 0 0 2.75 0 0 0 -1 stug7-1x6.dat
1 16 0 0 20 1 0 0 0 2.75 0 0 0 -1 stug7-1x6.dat
1 16 0 0 -20 1 0 0 0 2.75 0 0 0 -1 stug7-1x4.dat
1 16 0 0 -60 1 0 0 0 2.75 0 0 0 -1 stug7-1x2.dat
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
The window ornaments became very ugly with 48-part prisms, so I made the outer cylinder as 84-part. A 96-part would have yielded too small quads.
Fixed origin
2024-11-17 10:58:44
is the orientation correct? or should the "window" go to the front?
like this: https://library.ldraw.org/parts/3877
like this: https://library.ldraw.org/parts/3877
Inlined unique subparts (s04 and s05). Corrected some cond lines. Subparts s03 and s02 will be reused in part 25025. Renamed s06 to s01.
Will correct orientation so that window is in front instead of back.
Rotated so that window is in front.
Still missing many condlines. In and outside of the window, and on inside around the window.
When you use the word Glue, I guess you don't actually mean that anything is glued?
Or is this part made from 2 moulds glued together?
When you use the word Glue, I guess you don't actually mean that anything is glued?
Or is this part made from 2 moulds glued together?
2024-11-20 07:02:34
In this case, 'glue' means quads or triangles which are shared between the two mirrored subparts and thus cannot be part of either. I'll change the wording in the next version.
Thanks for pointing out where the condlines are missing.
Thanks for pointing out where the condlines are missing.
Added condlines on outside curved ornament sides and inside cone above window. Rephrased the word 'glue'.
Do cylinders (or other curved surfaces) need condlines on the inside? I cannot imagine any camera angle in which such a condline would be seen.
Do cylinders (or other curved surfaces) need condlines on the inside? I cannot imagine any camera angle in which such a condline would be seen.
Even if the condline itself will not be seen, it will improve the rendering of the curved surface. Please add them.
There are some bfc errors on the bottom structure. I see four red surfaces.
There are some bfc errors on the bottom structure. I see four red surfaces.
Flipped subpart s02 as suggested. Corrected some BFC errors (may be more). Corrected height of triangular box inside surfaces (recent addition).
Finished rotating s01 and parent part. Added inside cond lines to s01.
Finished rotating s01 and parent part. Added inside cond lines to s01.
Corrected BFC of two triangles shared by the bottom halves.
2025-08-15 09:18:04
Header Edits
description:
Duplo Wall 4 x 6 x 6 Curved Turret - Castle
to
Duplo Building Wall 4 x 6 x 6 Curved Turret - Castle
Creative Commons Attribution License information
This part is copyright © Peter Blomberg
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
