Unofficial File parts/561p01.dat
Part Attributes:
Base Part: 561.dat
File Header:

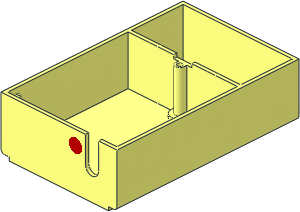

0 ~Electric 4.5V Battery Box 7 x 11 x 3 Type 1 Base with Red Dot Pattern
0 Name: 561p01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS electronic train, Set 138-1, whistle
0 !HISTORY 2025-01-05 [Blechtaler] closed the contact gap
Show contents
1 16 20 60 -90 1 0 0 0 -1 0 0 0 1 s\561s01.dat
1 16 -20 60 -90 1 0 0 0 -1 0 0 0 1 s\561s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\561s02.dat
1 16 35 56 41.5 5 0 0 0 -56 0 0 0 2 box3u8p.dat
1 16 -35 56 41.5 5 0 0 0 -56 0 0 0 2 box3u8p.dat
1 16 40 30 -110 -8 0 0 0 0 8 0 1 0 2-4ndis.dat
1 16 40 30 -106 -8 0 0 0 0 8 0 -1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 40 30 -110 -8 0 0 0 0 8 0 4 0 2-4cylo.dat
0 // Print
1 4 20 16 -110 8 0 0 0 0 8 0 1 0 4-4disc.dat
1 16 20 16 -110 8 0 0 0 0 8 0 1 0 4-4ndis.dat
4 16 20 8 -110 32 0 -110 -70 0 -110 12 8 -110
3 16 20 8 -110 28 8 -110 32 0 -110
4 16 32 30 -110 32 0 -110 28 8 -110 28 16 -110
4 16 32 38 -110 32 30 -110 28 16 -110 28 24 -110
3 16 32 38 -110 28 24 -110 20 24 -110
4 16 -70 56 -110 32 38 -110 20 24 -110 12 24 -110
4 16 12 16 -110 -70 0 -110 -70 56 -110 12 24 -110
3 16 -70 0 -110 12 16 -110 12 8 -110
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
subfiled for pattern
2024-11-25 19:38:37
do i need the assembly too?
2024-12-03 17:58:59
2024-12-08 12:48:09
subfiled the contact cutout
(only the newer boxes have it)
(only the newer boxes have it)
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
