Unofficial File parts/u9041.dat
Part Attributes:
File Header:

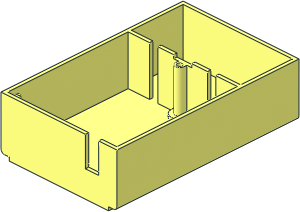

0 ~Electric 4.5V Battery Box 7 x 11 x 3.333 Type 2 Base
0 Name: u9041.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2011-07-25 [PTadmin] Official Update 2011-01
0 !HISTORY 2024-11-24 [Blechtaler] complete rework, subfiled
0 !HISTORY 2025-01-05 [Blechtaler] subfiled the contact gap
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\561s02.dat
0 BFC INVERTNEXT
1 16 35 0 41.5 0 0 5 0 56 0 2 0 0 box3u4p.dat
0 BFC INVERTNEXT
1 16 -35 0 41.5 0 0 5 0 56 0 2 0 0 box3u4p.dat
0 BFC INVERTNEXT
1 16 40 30 -108 0 0 8 0 4 0 2 0 0 box3u4a.dat
4 16 -70 0 -110 -70 56 -110 32 34 -110 32 30 -110
3 16 -70 56 -110 32 38 -110 32 34 -110
3 16 32 0 -110 -70 0 -110 32 30 -110
3 16 32 34 -110 32 38 -110 40 38 -110
4 16 48 38 -110 48 34 -110 32 34 -110 40 38 -110
4 16 32 34 -106 48 34 -106 48 38 -106 40 38 -106
3 16 32 34 -106 40 38 -106 32 38 -106
4 16 10 56 -100 30 56 -100 30 56 -80 10 56 -80
4 16 -30 56 -80 -30 56 -100 -10 56 -100 -10 56 -80
4 16 30 60 -100 10 60 -100 10 60 -80 30 60 -80
4 16 -10 60 -80 -10 60 -100 -30 60 -100 -30 60 -80
1 16 20 60 -90 0 0 1 0 -1 0 1 0 0 stud4.dat
1 16 -20 60 -90 0 0 1 0 -1 0 1 0 0 stud4.dat
1 16 0 60 -70 0 0 1 0 -1 0 1 0 0 stud4.dat
1 16 0 60 -70 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 0 60 -50 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 0 60 -30 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 0 60 -10 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 0 60 10 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 0 60 70 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 0 60 90 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 52 60 30 -4 0 0 0 1 0 0 0 1.5 box3u5p.dat
1 16 48 60 30 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 32 60 30 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 30 60 30 2 0 0 0 1 0 0 0 1.5 box3u8p.dat
1 16 28 60 30 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 12 60 30 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 9 60 30 0 0 -3 0 1 0 1.5 0 0 box4-4a.dat
1 16 -9 60 30 0 0 3 0 1 0 1.5 0 0 box4-4a.dat
1 16 -12 60 30 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -28 60 30 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -30 60 30 2 0 0 0 1 0 0 0 1.5 box3u8p.dat
1 16 -32 60 30 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -48 60 30 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -52 60 30 4 0 0 0 1 0 0 0 1.5 box3u5p.dat
1 16 52 60 50 -4 0 0 0 1 0 0 0 1.5 box3u5p.dat
1 16 48 60 50 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 32 60 50 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 30 60 50 2 0 0 0 1 0 0 0 1.5 box3u8p.dat
1 16 28 60 50 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 12 60 50 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 0 60 50 12 0 0 0 1 0 0 0 1.5 box3u8p.dat
1 16 -12 60 50 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -28 60 50 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -30 60 50 2 0 0 0 1 0 0 0 1.5 box3u8p.dat
1 16 -32 60 50 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -48 60 50 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -52 60 50 4 0 0 0 1 0 0 0 1.5 box3u5p.dat
Status:
Needs More Votes (F)
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
subfiled for pattern
realized that there is in fact a version with square end
2024-12-08 12:48:33
subfiled the contact cutout
(only the newer boxes have it)
(only the newer boxes have it)
Creative Commons Attribution License information
This part is copyright © Michael Heidemann
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Rene Rechthaler,
