Unofficial File parts/u9040.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

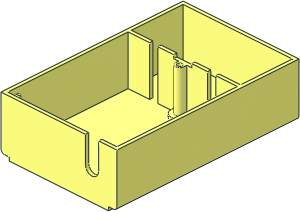

0 ~Electric 4.5V Battery Box 7 x 11 x 3.333 Type 1 Base
0 Name: u9040.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Electric
0 !HISTORY 2011-07-25 [PTadmin] Official Update 2011-01
0 !HISTORY 2024-11-24 [Blechtaler] complete rework, subfiled
0 !HISTORY 2025-01-05 [Blechtaler] subfiled the contact gapShow file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\561s02.dat
0 BFC INVERTNEXT
1 16 35 0 41.5 0 0 5 0 56 0 2 0 0 box3u4p.dat
0 BFC INVERTNEXT
1 16 -35 0 41.5 0 0 5 0 56 0 2 0 0 box3u4p.dat
1 16 40 30 -110 -8 0 0 0 0 8 0 1 0 2-4ndis.dat
1 16 40 30 -106 -8 0 0 0 0 8 0 -1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 40 30 -110 -8 0 0 0 0 8 0 4 0 2-4cylo.dat
4 16 -70 0 -110 -70 56 -110 32 38 -110 32 30 -110
3 16 32 0 -110 -70 0 -110 32 30 -110
4 16 10 56 -100 30 56 -100 30 56 -80 10 56 -80
4 16 -30 56 -80 -30 56 -100 -10 56 -100 -10 56 -80
4 16 30 60 -100 10 60 -100 10 60 -80 30 60 -80
4 16 -10 60 -80 -10 60 -100 -30 60 -100 -30 60 -80
1 16 20 60 -90 0 0 1 0 -1 0 1 0 0 stud4.dat
1 16 -20 60 -90 0 0 1 0 -1 0 1 0 0 stud4.dat
1 16 0 60 -70 0 0 1 0 -1 0 1 0 0 stud4.dat
1 16 0 60 -70 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 0 60 -50 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 0 60 -30 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 0 60 -10 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 0 60 10 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 0 60 70 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 0 60 90 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 52 60 30 -4 0 0 0 1 0 0 0 1.5 box3u5p.dat
1 16 48 60 30 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 32 60 30 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 30 60 30 2 0 0 0 1 0 0 0 1.5 box3u8p.dat
1 16 28 60 30 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 12 60 30 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 9 60 30 0 0 -3 0 1 0 1.5 0 0 box4-4a.dat
1 16 -9 60 30 0 0 3 0 1 0 1.5 0 0 box4-4a.dat
1 16 -12 60 30 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -28 60 30 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -30 60 30 2 0 0 0 1 0 0 0 1.5 box3u8p.dat
1 16 -32 60 30 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -48 60 30 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -52 60 30 4 0 0 0 1 0 0 0 1.5 box3u5p.dat
1 16 52 60 50 -4 0 0 0 1 0 0 0 1.5 box3u5p.dat
1 16 48 60 50 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 32 60 50 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 30 60 50 2 0 0 0 1 0 0 0 1.5 box3u8p.dat
1 16 28 60 50 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 12 60 50 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 0 60 50 12 0 0 0 1 0 0 0 1.5 box3u8p.dat
1 16 -12 60 50 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -28 60 50 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -30 60 50 2 0 0 0 1 0 0 0 1.5 box3u8p.dat
1 16 -32 60 50 -1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -48 60 50 1.5 0 0 0 1 0 0 0 1.5 boxjcyl4.dat
1 16 -52 60 50 4 0 0 0 1 0 0 0 1.5 box3u5p.datStatus
Needs 2 More Votes (F)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Rene Rechthaler [Blechtaler]
initially submitted the part.
2024-12-03 19:38:28
with common subfile
Magnus Forsberg [MagFors]
posted a vote of Certify
2024-12-08 12:48:22
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2025-01-05 17:09:38
subfiled the contact cutout
(only the newer boxes have it)
(only the newer boxes have it)
