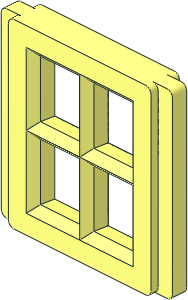

Mursten Window Pane 1 x 2 x 2
File Header:
0 Mursten Window Pane 1 x 2 x 2 0 Name: u8016.dat 0 Author: J.C. Tchang [tchang] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !CATEGORY Window 0 !KEYWORDS Automatic Binding Brick, BrickLink bwindow01 0 !KEYWORDS Rebrickable brickslot0002 0 !HISTORY 2019-09-09 [PTadmin] Official Update 2019-02 0 !HISTORY 2025-01-04 [Plastikean] Rounded corners, BFC CCW
Show contents
1 16 -20 24 0 0 -4 0 22.5 0 0 0 0 2 box3u8p.dat 1 16 -20 24 -3 0 1 0 22.5 0 0 0 0 -1 rect2p.dat 1 16 -20 24 3 0 1 0 -22.5 0 0 0 0 1 rect2p.dat 1 16 20 24 0 0 4 0 22.5 0 0 0 0 2 box3u8p.dat 1 16 20 24 3 0 -1 0 22.5 0 0 0 0 1 rect2p.dat 1 16 20 24 -3 0 -1 0 -22.5 0 0 0 0 -1 rect2p.dat 1 16 18.5 46.5 0 1 0 0 0 1 0 0 0 1 s\u8016s02.dat 1 16 -18.5 46.5 0 -1 0 0 0 1 0 0 0 1 s\u8016s02.dat 4 16 18.5 48 -4 20 46.5 -4 -20 46.5 -4 -18.5 48 -4 3 16 -18.5 48 4 18.5 48 4 18.5 48 2 4 16 18.5 48 -2 -18.5 48 2 -18.5 48 4 18.5 48 2 4 16 -18.5 48 2 18.5 48 -2 18.5 48 -4 -18.5 48 -2 3 16 -18.5 48 -2 18.5 48 -4 -18.5 48 -4 4 16 -20 46.5 4 20 46.5 4 18.5 48 4 -18.5 48 4 2 24 -18.5 48 -4 18.5 48 -4 2 24 -18.5 48 4 18.5 48 4 1 16 -18.5 1.5 0 -1 0 0 0 -1 0 0 0 1 s\u8016s02.dat 1 16 18.5 1.5 0 1 0 0 0 -1 0 0 0 1 s\u8016s02.dat 4 16 -20 1.5 -4 20 1.5 -4 18.5 0 -4 -18.5 0 -4 3 16 18.5 0 4 -18.5 0 4 18.5 0 2 4 16 -18.5 0 4 -18.5 0 2 18.5 0 -2 18.5 0 2 4 16 18.5 0 -4 18.5 0 -2 -18.5 0 2 -18.5 0 -2 3 16 18.5 0 -4 -18.5 0 -2 -18.5 0 -4 4 16 18.5 0 4 20 1.5 4 -20 1.5 4 -18.5 0 4 2 24 -18.5 0 -4 18.5 0 -4 2 24 -18.5 0 4 18.5 0 4 4 16 15 5 -4 20 1.5 -4 -20 1.5 -4 -15 5 -4 4 16 -15 43 -4 -20 46.5 -4 20 46.5 -4 15 43 -4 4 16 15 43 -4 20 46.5 -4 20 1.5 -4 15 5 -4 4 16 -15 5 -4 -20 1.5 -4 -20 46.5 -4 -15 43 -4 4 16 -15 5 4 -20 1.5 4 20 1.5 4 15 5 4 4 16 15 43 4 20 46.5 4 -20 46.5 4 -15 43 4 4 16 -15 43 4 -20 46.5 4 -20 1.5 4 -15 5 4 4 16 15 5 4 20 1.5 4 20 46.5 4 15 43 4 1 16 -7.5 14.5 0 1 0 0 0 1 0 0 0 1 s\u8016s01.dat 1 16 7.5 14.5 0 1 0 0 0 1 0 0 0 1 s\u8016s01.dat 1 16 -7.5 33.5 0 1 0 0 0 1 0 0 0 1 s\u8016s01.dat 1 16 7.5 33.5 0 1 0 0 0 1 0 0 0 1 s\u8016s01.dat
Status:
Not releaseable Needs More Votes (CF) Needs More Votes (CF)
This part has the following automated holds from the Parts Tracker
Current Votes:
User Vote
MagFors Certify
Official parents and subparts
Part Events:
Archived Part Events:
N. W. Perry [Plastikean]
Part Reviewer
initially submitted the part.
2025-01-07 19:41:50
The ABB windows are not front-back symmetrical. The panes have one side that is "sharper" or "deeper" while the other is more "flat" or "shallow". See the unique marbled window from these photos (examples can also be found for each window size):
https://flic.kr/p/nx7JBY
https://flic.kr/p/nqjPCf
https://flic.kr/p/nqk3go
This fix also adds rounded corners and BFC CCW compliance.
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2025-01-08 17:39:09
Creative Commons Attribution License information

This part is copyright © J.C. Tchang
Licensed under CC BY 4.0

Edits:
LDraw.org Parts Tracker, N. W. Perry,
