Unofficial File parts/3483.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

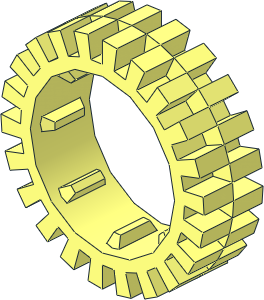

0 Tyre 7/ 50 x 17 Offset Tread
0 Name: 3483.dat
0 Author: James Jessiman
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Tyre
0 !KEYWORDS Brickowl 716673, Freestyle, Technic
0 !HISTORY 1998-06-20 [PTadmin] Official Update 1998-06
0 !HISTORY 2003-01-28 [sbliss] Completed header; BFC'ed; eliminated gaps
0 !HISTORY 2003-08-01 [PTadmin] Official Update 2003-02
0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2014-03-10 [cwdee] Change description
0 !HISTORY 2014-06-21 [PTadmin] Official Update 2014-01
0 !HISTORY 2025-02-10 [Blechtaler] subfiled the Tread, used prims for the centerShow file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3483s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 -1 s\3483s01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\3483s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\3483s01.dat
2 24 0 -31 0 0 -25 0
2 24 31 0 0 25 0 0
2 24 0 31 0 0 25 0
2 24 -31 0 0 -25 0 0
0 BFC INVERTNEXT
1 16 0 0 -9 22 0 0 0 0 22 0 18 0 4-4cylo.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3634s03.dat
1 16 0 0 0 0.7071 0.7071 0 -0.7071 0.7071 0 0 0 1 s\3634s03.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 1 s\3634s03.dat
1 16 0 0 0 -0.7071 0.7071 0 -0.7071 -0.7071 0 0 0 1 s\3634s03.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\3634s03.dat
1 16 0 0 0 -0.7071 -0.7071 0 0.7071 -0.7071 0 0 0 1 s\3634s03.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 s\3634s03.dat
1 16 0 0 0 0.7071 -0.7071 0 0.7071 0.7071 0 0 0 1 s\3634s03.datStatus
Needs 1 More Vote (CF)
Current Votes:
Peter Blomberg [WUIt]
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Rene Rechthaler [Blechtaler]
initially submitted the part.
2025-02-10 11:22:37
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2025-02-11 11:37:55
rearranged the rects to avoid duplicating edges
Magnus Forsberg [MagFors]
posted a vote of Hold
2025-02-12 19:13:13
It's now missing some edge lines in the middle, top and bottom.
(Might be hidden under the XYZ-axis arrows in your viewer.)
(Might be hidden under the XYZ-axis arrows in your viewer.)
Magnus Forsberg [MagFors]
cancelled their vote.
2025-02-12 19:19:19
They are added here in this file. Why?
Magnus Forsberg [MagFors]
made the following comment.
2025-02-12 19:23:55
I see it now. They need to be here.
Rene Rechthaler [Blechtaler]
made the following comment.
2025-02-12 20:02:46
they are here because they are exactly on the border
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2025-03-03 11:31:04
with the teeth from 3634
Peter Blomberg [WUIt]
made the following comment.
2025-11-16 16:41:14
Edger wants to add 16 edge lines, but the locations already have edges, so it might be a question of rounding and/or rotation.
Peter Blomberg [WUIt]
posted a vote of Certify
2025-11-20 13:24:03
Magnus Forsberg [MagFors]
edited the part header.
2026-01-20 16:10:42
Header Edits
description:
Tyre 7/ 56 x 17 Offset Tread
to
Tyre 7/ 50 x 17 Offset Tread
Corrected dimension description
(now the inside is the same as the rims, but inverted)
