File Detail parts/s/30648s01.dat

Unofficial File parts/s/30648s01.dat

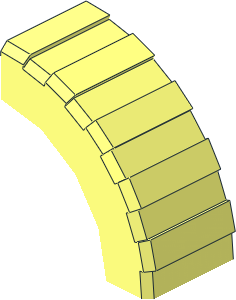

~Tyre 14/ 25 x 17 Shallow Staggered Treads - Eighth

File Header:

0 ~Tyre 14/ 25 x 17 Shallow Staggered Treads - Eighth
0 Name: s\30648s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2012-06-30 [Steffen] BFCed, removed duplicate line
0 !HISTORY 2012-07-04 [MagFors] Added cond-lines
0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
0 !HISTORY 2025-02-20 [Blechtaler] complete rewrite, original by [amclaren]

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30648s02.dat

1 16 0 -29.625 -7.875 0 1 0 0 0 -.375 7.875 0 0 rect2p.dat
1 16 4.6335 -29.2605 -7.875 0 0 -.0585 0 -1 .3705 7.875 0 0 rect2p.dat
1 16 9.154 -28.1765 -7.875 0 0 .116 0 1 -.3565 7.875 0 0 rect2p.dat
1 16 13.45 -26.396 -7.875 0 0 -.17 0 -1 .334 7.875 0 0 rect2p.dat
1 16 17.4135 -23.9665 -7.875 0 0 .2205 0 1 -.3035 7.875 0 0 rect2p.dat
1 16 20.948 -20.948 -7.875 0 0 -.265 0 -1 .265 7.875 0 0 rect2p.dat
1 16 23.9665 -17.4135 -7.875 .3035 0 0 -.2205 1 0 0 0 7.875 rect3.dat
1 16 26.396 -13.45 -7.875 -.334 0 0 .17 -1 0 0 0 7.875 rect3.dat
1 16 28.1765 -9.154 -7.875 .3565 0 0 -.116 1 0 0 0 7.875 rect3.dat
1 16 29.2605 -4.6335 -7.875 -.3705 0 0 .0585 -1 0 0 0 7.875 rect3.dat
1 16 2.346 -29.8155 -7.875 -2.346 0 0 -.1845 1 0 0 0 7.875 rect2p.dat
1 16 6.8065 -28.355 -7.875 -2.2315 0 0 -.535 1 0 0 0 7.875 rect2p.dat
1 16 11.445 -27.6315 -7.875 -2.175 0 0 -.9015 1 0 0 0 7.875 rect2p.dat
1 16 15.2365 -24.8625 -7.875 1.9565 0 0 1.1995 1 0 0 0 7.875 rect2p.dat
1 16 19.4235 -22.7415 -7.875 -1.7895 0 0 -1.5285 1 0 0 0 7.875 rect2p.dat
1 16 22.173 -18.938 -7.875 1.49 0 0 1.745 1 0 0 0 7.875 rect2p.dat
1 16 25.5 -15.627 -7.875 1.23 0 0 2.007 1 0 0 0 7.875 rect2p.dat
1 16 26.941 -11.159 -7.875 .879 0 0 2.121 1 0 0 0 7.875 rect2p.dat
1 16 29.082 -6.981 -7.875 .549 0 0 2.289 1 0 0 0 7.875 rect2p.dat
1 16 29.07 -2.2875 -7.875 .18 0 0 2.2875 1 0 0 0 7.875 rect2p.dat

4 16 4.575 -28.89 0 0 -29.25 0 0 -30 0 4.692 -29.631 0
4 16 13.28 -26.062 0 9.038 -27.82 0 9.27 -28.533 0 13.62 -26.73 0
4 16 20.683 -20.683 0 17.193 -23.663 0 17.634 -24.27 0 21.213 -21.213 0
4 16 26.062 -13.28 0 23.663 -17.193 0 24.27 -17.634 0 26.73 -13.62 0
4 16 28.89 -4.575 0 27.82 -9.038 0 28.533 -9.27 0 29.631 -4.692 0

Status:

Needs More Votes (F)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/30648s02.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Archived Part Events:

None

Rene Rechthaler [Blechtaler]

initially submitted the part.

2025-02-20 17:42:53

conplete rework to get rid of the cc2.0
the inside is now made of prims

Rene Rechthaler [Blechtaler]

made the following comment.

2025-03-05 22:10:05

am I allowed to make it 1LDU thinner (to match the rims)?
the sides should be flush to the rim...

Rene Rechthaler [Blechtaler]

submitted a new version of the part.

2025-03-08 17:23:35

with new subfiles
