Unofficial File parts/2346b.dat
Part Attributes:
File Header:

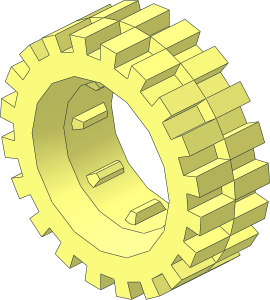

0 Tyre 10/ 60 x 17 Offset Tread
0 Name: 2346b.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 30.4 x 10.8
Show contents
0 // Nomenclature: width_(mm)/profile_as_%age_of_width x rim_diameter_(mm)
1 16 0 0 -4 1 0 0 0 1 0 0 0 1 s\2346bs01.dat
1 16 0 0 -4 0 -1 0 -1 0 0 0 0 -1 s\2346bs01.dat
1 16 0 0 -4 0 -1 0 1 0 0 0 0 1 s\2346bs01.dat
1 16 0 0 -4 1 0 0 0 -1 0 0 0 -1 s\2346bs01.dat
1 16 0 0 -4 -1 0 0 0 -1 0 0 0 1 s\2346bs01.dat
1 16 0 0 -4 0 1 0 1 0 0 0 0 -1 s\2346bs01.dat
1 16 0 0 -4 0 1 0 -1 0 0 0 0 1 s\2346bs01.dat
1 16 0 0 -4 -1 0 0 0 1 0 0 0 -1 s\2346bs01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2346bs02.dat
1 16 0 0 0 0 -1 0 -1 0 0 0 0 1 s\2346bs02.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 s\2346bs02.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\2346bs02.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\2346bs02.dat
1 16 0 0 0 0 1 0 1 0 0 0 0 1 s\2346bs02.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 1 s\2346bs02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\2346bs02.dat
2 24 0 -33 -4 0 -38 -4
2 24 23.334 -23.334 -4 26.87 -26.87 -4
2 24 33 0 -4 38 0 -4
2 24 23.334 23.334 -4 26.87 26.87 -4
2 24 0 33 -4 0 38 -4
2 24 -23.334 23.334 -4 -26.87 26.87 -4
2 24 -33 0 -4 -38 0 -4
2 24 -23.334 -23.334 -4 -26.87 -26.87 -4
1 16 0 0 -17 26 0 0 0 0 26 0 1 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 -17 2 0 0 0 0 2 0 4 0 4-4con12.dat
0 BFC INVERTNEXT
1 16 0 0 -13 2 0 0 0 0 2 0 4 0 4-4con11.dat
0 BFC INVERTNEXT
1 16 0 0 -9 22 0 0 0 0 22 0 18 0 4-4cylo.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3634s03.dat
1 16 0 0 0 0.7071 0.7071 0 -0.7071 0.7071 0 0 0 1 s\3634s03.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 1 s\3634s03.dat
1 16 0 0 0 -0.7071 0.7071 0 -0.7071 -0.7071 0 0 0 1 s\3634s03.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\3634s03.dat
1 16 0 0 0 -0.7071 -0.7071 0 0.7071 -0.7071 0 0 0 1 s\3634s03.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 s\3634s03.dat
1 16 0 0 0 0.7071 -0.7071 0 0.7071 0.7071 0 0 0 1 s\3634s03.dat
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
2025-02-26 11:22:52
outer dimensions are now like 56897 (R38, W26), which is much closer to the real part than the old 2346 (R35, W30)
also fitted to match the rim family (is the inside ring ok or should it use the 8 ridges?)
also fitted to match the rim family (is the inside ring ok or should it use the 8 ridges?)
2025-02-26 20:04:33
Is that even the same tyre?
2025-02-26 20:23:50
no, complete rework (the original part is just very wrong...)
2025-02-27 16:58:43
We need to consider the descriptions on all these tyre+rim combinations.
Is "12/ 50 x 16 " still a match to the real part?
Is "12/ 50 x 16 " still a match to the real part?
2025-02-27 17:16:40
Outer dimensions are D30x10,5mm/R38, W26 (same as 56897, but I dont have that)
for the standard D17x7mm rims (should be R21 instead of 22 LDU but I dont want to correct the whole family)
number 2346 is embossed on it, one of the few rubber parts with number
for the standard D17x7mm rims (should be R21 instead of 22 LDU but I dont want to correct the whole family)
number 2346 is embossed on it, one of the few rubber parts with number
2025-02-27 17:38:38
should I reuse s\3634a.dat here? the inside doesnt use the continuous rib like the old ones
with the teeth from 3634
2025-03-04 21:15:00
"parts/2346a.dat" to "parts/2346b.dat"
2025-03-04 21:16:15
When the first version turns out to be wrong, the second should be called b.
Header Edits
keywords:
to
30.4 x 10.8
added tire size
2026-01-20 15:35:28
Header Edits
description:
Tyre 12/ 50 x 16 Offset Tread
to
Tyre 10/ 60 x 17 Offset Tread
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
should I keep the history of the old part?
