Unofficial File parts/s/7101s01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

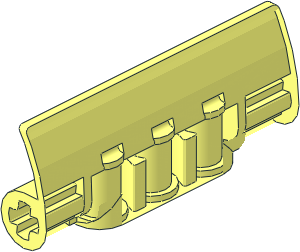

0 ~Technic Panel Curved 5 x 2 x 1 without Top and Front
0 Name: s\7101s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCWShow file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7101s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\7101s02.dat
1 16 -9 1 0 0 1 0 0 0 -9 -20 0 0 rect2p.dat
3 16 -6 -8 0 -9 -8 20 -9 -8 -20
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 connhol3.dat
3 16 6.4673 -10 2.6789 7 -10 0 6.4673 -10 -2.6789
4 16 5.4369 -10 4.2207 6.4673 -10 2.6789 6.4673 -10 -2.6789 5.4369 -10 -4.2207
1 16 4.62655 -13 0 0 0 .12655 0 1 0 -4.2207 0 0 rect3.dat
1 16 4.5 -11.5 -4.2207 0 0 -1.5 1.5 0 0 0 8.4414 0 2-4cylo.dat
1 16 4.96845 -10 0 -.46845 0 0 0 -1 0 0 0 -4.2207 rect2p.dat
4 16 4.7531 -13 4.2207 4.7531 -13 -4.2207 3.848 -16.971 -50 3.848 -16.971 50
2 24 9 10 -20 9 10 20
0 // Curved Pane
1 16 2.1015 -21.0335 0 1.7465 0 0 4.0625 -1 0 0 0 -50 rect2p.dat
1 16 -.641 -26.7235 0 -.996 0 0 -1.6275 -1 0 0 0 50 rect2p.dat
5 24 3.848 -16.971 50 3.848 -16.971 -50 5.6648 -9 -50 .355 -25.096 -50
5 24 .355 -25.096 50 .355 -25.096 -50 3.848 -16.971 -50 -1.637 -28.351 -50
5 24 8.336 -8.558 50 8.336 -8.558 -50 9 0 -50 6.365 -16.971 -50
5 24 6.365 -16.971 -50 6.365 -16.971 50 8.336 -8.558 50 3.121 -25.096 50
5 24 3.121 -25.096 50 3.121 -25.096 -50 6.365 -16.971 -50 1.228 -28.351 -50
5 24 9 0 -50 9 0 50 8.3151 3.4443 50 8.336 -8.558 50
0 // Curved End
4 16 1.228 -28.351 50 .449 -29.69 48.022 .449 -29.69 -48.022 1.228 -28.351 -50
1 16 -.9835 -29.69 0 0 0 -1.4325 0 1 0 48.022 0 0 rect2p.dat
4 16 -2.416 -29.69 -48.022 -2.416 -29.69 48.022 -1.637 -28.351 50 -1.637 -28.351 -50
5 24 -1.637 -28.351 -50 -1.637 -28.351 50 .355 -25.096 50 -2.416 -29.69 -48.022Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Gerald Lasser [GeraldLasser]
initially submitted the part.
2025-03-02 16:14:51
Gerald Lasser [GeraldLasser]
submitted a new version of the part (all votes reset).
2025-03-02 16:16:18
missed an edge
Philippe Hurbain [Philo]
made the following comment.
2025-03-02 18:10:24
"without Top and Front" ?
Philippe Hurbain [Philo]
edited the part header.
2025-03-02 18:11:12
Header Edits
description:
~Technic Panel Curved 5 x 2 x 1 without Top and front
to
~Technic Panel Curved 5 x 2 x 1 without Top and Front
Philippe Hurbain [Philo]
made the following comment.
2025-03-21 15:40:59
- Edger2 finds a bunch more condlines (no big deal, concave area anyway)
5 24 5.6648 -9 23.8797 5.6648 -9 32 3.848 -16.971 50 5.6648 -8 23.8797
5 24 -1.637 -28.351 -50 -1.637 -28.351 50 .355 -25.096 50 -2.416 -29.69 -48.022
5 24 5.6648 -9 3.8797 5.6648 -9 16.1203 5.6648 -8 3.8797 5.4369 -10 15.7793
5 24 5.6648 -8 -29 5.6648 -9 -32 5.6648 -9 -23.8797 6 0 -29
5 24 5.6648 -8 29 5.6648 -9 32 6 0 29 5.6648 -9 23.8797
5 24 5.6648 -9 -3.8797 5.6648 -9 -16.1203 5.6648 -8 -3.8797 5.4369 -10 -15.7793
5 24 5.6648 -9 -32 5.6648 -9 -23.8797 5.6648 -8 -23.8797 3.848 -16.971 -50
- Still wondering about naming (only front missing?)
5 24 5.6648 -9 23.8797 5.6648 -9 32 3.848 -16.971 50 5.6648 -8 23.8797
5 24 -1.637 -28.351 -50 -1.637 -28.351 50 .355 -25.096 50 -2.416 -29.69 -48.022
5 24 5.6648 -9 3.8797 5.6648 -9 16.1203 5.6648 -8 3.8797 5.4369 -10 15.7793
5 24 5.6648 -8 -29 5.6648 -9 -32 5.6648 -9 -23.8797 6 0 -29
5 24 5.6648 -8 29 5.6648 -9 32 6 0 29 5.6648 -9 23.8797
5 24 5.6648 -9 -3.8797 5.6648 -9 -16.1203 5.6648 -8 -3.8797 5.4369 -10 -15.7793
5 24 5.6648 -9 -32 5.6648 -9 -23.8797 5.6648 -8 -23.8797 3.848 -16.971 -50
- Still wondering about naming (only front missing?)
Philippe Hurbain [Philo]
posted a vote of Hold
2025-03-22 15:56:59
(Increasing to hold in case you missed the review)
Gerald Lasser [GeraldLasser]
made the following comment.
2025-03-22 16:30:04
yes, better hold.
THe namign is adopted from the 3L Panel
THe namign is adopted from the 3L Panel
Philippe Hurbain [Philo]
made the following comment.
2025-03-22 16:58:04
...but I don't understand it better for the 3L :D
Massimo Maso [Sirio]
posted a vote of Hold
2025-07-22 16:28:06
It seems like that's now missing only:
5 24 -1.637 -28.351 -50 -1.637 -28.351 50 .355 -25.096 50 -2.416 -29.69 -48.022
5 24 -1.637 -28.351 -50 -1.637 -28.351 50 .355 -25.096 50 -2.416 -29.69 -48.022
Gerald Lasser [GeraldLasser]
submitted a new version of the part (all votes reset).
2025-07-22 21:34:53
bit of reorganisation
Magnus Forsberg [MagFors]
edited the part header.
2026-08-11 18:24:13
Header Edits
description:
~Technic Panel Curved 5 x 2 x 1 without Top and front
to
~Technic Panel Curved 5 x 2 x 1 without Top and Front
