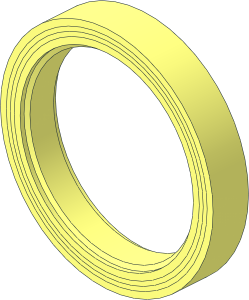

0 Tyre 7/ 50 x 36 with Flat Tread
0 Name: u9193.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 43.2, classic
0 !CMDLINE -c375
Show contents
0 // Nomenclature: width_(mm)/profile_as_%age_of_width x rim_diameter_(mm)
1 16 0 0 -9 54 0 0 0 0 54 0 18 0 48\4-4cylo.dat
1 16 0 0 -9 5.5 0 0 0 0 5.5 0 1 0 48\4-4ring8.dat
1 16 0 0 -9 4.5 0 0 0 0 4.5 0 1 0 48\4-4ring11.dat
1 16 0 0 9 5.5 0 0 0 0 5.5 0 -1 0 48\4-4ring8.dat
1 16 0 0 9 4.5 0 0 0 0 4.5 0 -1 0 48\4-4ring11.dat
1 16 0 0 9 47 0 0 0 0 47 0 1 0 48\4-4edge.dat
1 16 0 0 -9 47 0 0 0 0 47 0 1 0 48\4-4edge.dat
1 16 0 0 9 49 0 0 0 0 49 0 1 0 48\4-4edge.dat
1 16 0 0 -9 49 0 0 0 0 49 0 1 0 48\4-4edge.dat
1 16 0 0 9 51 0 0 0 0 51 0 1 0 48\4-4edge.dat
1 16 0 0 -9 51 0 0 0 0 51 0 1 0 48\4-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 -6 42 0 0 0 0 42 0 12 0 48\4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 7 2 0 0 0 0 2 0 -1 0 48\4-4con21.dat
0 BFC INVERTNEXT
1 16 0 0 -7 2 0 0 0 0 2 0 1 0 48\4-4con21.dat
0 BFC INVERTNEXT
1 16 0 0 7 44 0 0 0 0 44 0 2 0 48\4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -7 44 0 0 0 0 44 0 -2 0 48\4-4cylo.dat
Status:
Errors Found (HHN)
Current Votes:
| User | Vote |
|---|---|
| GeraldLasser | Hold |
| MagFors | Hold |
Official parents and subparts
Part Events:
Rene Rechthaler [Blechtaler]
initially submitted the part.
2025-03-05 20:30:04
differentiated and fixed the two variants of 36.dat
Rene Rechthaler [Blechtaler]
edited the part header.
2025-03-19 21:47:48
Header Edits
keywords:
classic
to
classic, 43.2
added diameter
Gerald Lasser [GeraldLasser]
posted a vote of Hold
2025-03-20 12:34:13
If this is reworked, then I would prefer to have the sidewall relief modeled and not only as (invisible) edgelines.
Could be doen with some cones IMHO
Could be doen with some cones IMHO
Magnus Forsberg [MagFors]
made the following comment.
2025-03-20 12:42:02
Obsolete 36.dat, or make Moved to-files?
Rene Rechthaler [Blechtaler]
made the following comment.
2025-03-20 20:34:57
ripples would be possible (needs lots of new cones), but unnecessary (too small)
idk if obsolete or moved-to, its a part split into variants
idk if obsolete or moved-to, its a part split into variants
Magnus Forsberg [MagFors]
posted a vote of Hold
2025-03-21 15:30:39
Updating without a suggested plan for the official plan is not good.
We need to handle the old 36.dat. Obsolete it, or make a Moved to-file?
Since there is a change in the outer diameter we need to obsolete the old file.
Please upload an obsoleted 36.dat
We need to handle the old 36.dat. Obsolete it, or make a Moved to-file?
Since there is a change in the outer diameter we need to obsolete the old file.
Please upload an obsoleted 36.dat
Jeff Jones [notmaster]
made the following comment.
2025-03-21 15:48:47
moved to
Rene Rechthaler [Blechtaler]
made the following comment.
2025-03-21 16:34:45
cones or cylo+ring like 3139b?
https://library.ldraw.org/parts/37251
geometrically ideal would be a mixed-mode torus, but that would be overkill on poly count...
https://library.ldraw.org/parts/37251
geometrically ideal would be a mixed-mode torus, but that would be overkill on poly count...
Rene Rechthaler [Blechtaler]
made the following comment.
2025-03-21 17:00:31
i am not sure if the 36.dat is really wrong...
the air / foam tyres are smaller than the solid rubber ones.
the 36.dat fits quite well for the black air tyres, this u9193 is the grey latex rubber and the u9194 is the solid black rubber.
counts more like "variants"
the air / foam tyres are smaller than the solid rubber ones.
the 36.dat fits quite well for the black air tyres, this u9193 is the grey latex rubber and the u9194 is the solid black rubber.
counts more like "variants"
