File Header:

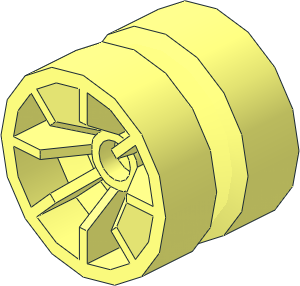

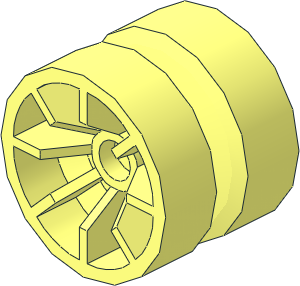

0 Wheel Rim 14 x 18 with  8 Spokes
0 Name: 51377.dat
0 Author: Donald Sutter [technog]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2012-07-31 [MagFors] Retitled, corrected file ending, added cond-lines
0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
0 !HISTORY 2025-03-07 [Blechtaler] made outside standard res again (to fit the other rims)
