File Detail parts/s/89201s01.dat

Unofficial File parts/s/89201s01.dat

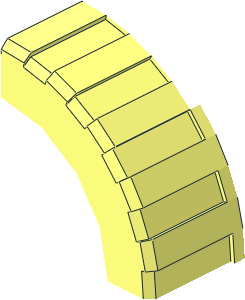

~Tyre 14/ 25 x 17 Shallow Staggered Treads with Middle Band - Eighth

File Header:

0 ~Tyre 14/ 25 x 17 Shallow Staggered Treads with Middle Band - Eighth
0 Name: s\89201s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2013-02-22 {LEGO Digital Designer} Original part shape
0 !HISTORY 2013-02-22 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
0 !HISTORY 2025-03-08 [Blechtaler] reworked with better subfiles+prims

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30648s02.dat
1 16 0 -29.625 -8.375 0 1 0 .375 0 0 0 0 7.375 rect3.dat
1 16 4.6335 -29.2605 -8.375 -.0585 0 0 .3705 -1 0 0 0 7.375 rect3.dat
1 16 9.154 -28.1765 -8.375 .116 0 0 -.3565 1 0 0 0 7.375 rect3.dat
1 16 13.45 -26.396 -8.375 -.17 0 0 .334 -1 0 0 0 7.375 rect3.dat
1 16 17.4135 -23.9665 -8.375 .2205 0 0 -.3035 1 0 0 0 7.375 rect3.dat
1 16 20.948 -20.948 -8.375 -.265 0 0 .265 -1 0 0 0 7.375 rect3.dat
1 16 23.9665 -17.4135 -8.375 .3035 0 0 -.2205 1 0 0 0 7.375 rect3.dat
1 16 26.396 -13.45 -8.375 -.334 0 0 .17 -1 0 0 0 7.375 rect3.dat
1 16 28.1765 -9.154 -8.375 .3565 0 0 -.116 1 0 0 0 7.375 rect3.dat
1 16 29.2605 -4.6335 -8.375 -.3705 0 0 .0585 -1 0 0 0 7.375 rect3.dat
1 16 2.346 -29.8155 -8.375 0 0 2.346 0 1 .1845 -7.375 0 0 rect1.dat
1 16 6.8065 -28.355 -8.375 -2.2315 0 0 -.535 1 0 0 0 7.375 rect2p.dat
1 16 11.445 -27.6315 -8.375 0 0 2.175 0 1 .9015 -7.375 0 0 rect1.dat
1 16 15.2365 -24.8625 -8.375 1.9565 0 0 1.1995 1 0 0 0 7.375 rect2p.dat
1 16 19.4235 -22.7415 -8.375 0 0 1.7895 0 1 1.5285 -7.375 0 0 rect1.dat
1 16 22.173 -18.938 -8.375 1.49 0 0 1.745 1 0 0 0 7.375 rect2p.dat
1 16 25.5 -15.627 -8.375 0 0 1.23 0 1 2.007 -7.375 0 0 rect1.dat
1 16 26.941 -11.159 -8.375 .879 0 0 2.121 1 0 0 0 7.375 rect2p.dat
1 16 29.082 -6.981 -8.375 0 0 .549 0 1 2.289 -7.375 0 0 rect1.dat
1 16 29.07 -2.2875 -8.375 .18 0 0 2.2875 1 0 0 0 7.375 rect2p.dat

4 16 28.89 -4.575 -1 29.25 0 -1 30 0 -1 29.631 -4.692 -1
4 16 26.062 -13.28 -1 27.82 -9.038 -1 28.533 -9.27 -1 26.73 -13.62 -1
4 16 20.683 -20.683 -1 23.663 -17.193 -1 24.27 -17.634 -1 21.213 -21.213 -1
4 16 13.28 -26.062 -1 17.193 -23.663 -1 17.634 -24.27 -1 13.62 -26.73 -1
4 16 4.575 -28.89 -1 9.038 -27.82 -1 9.27 -28.533 -1 4.692 -29.631 -1

1 16 29.8155 -2.346 0 0 0 .1845 0 1 2.346 -1 0 0 rect1.dat
1 16 29.082 -6.981 0 0 0 -.549 0 1 -2.289 1 0 0 rect1.dat
1 16 27.6315 -11.445 0 0 0 .9015 0 1 2.175 -1 0 0 rect1.dat
1 16 25.5 -15.627 0 0 0 -1.23 0 1 -2.007 1 0 0 rect1.dat
1 16 22.7415 -19.4235 0 0 0 1.5285 0 1 1.7895 -1 0 0 rect1.dat
5 24 29.631 -4.692 1 29.631 -4.692 -1 30 0 -1 28.533 -9.27 1
5 24 28.533 -9.27 1 28.533 -9.27 -1 29.631 -4.692 -1 26.73 -13.62 1
5 24 26.73 -13.62 -1 26.73 -13.62 1 28.533 -9.27 -1 24.27 -17.634 1
5 24 24.27 -17.634 1 24.27 -17.634 -1 21.213 -21.213 1 26.73 -13.62 -1

Status:

Needs More Votes (F)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/30648s02.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Archived Part Events:

None

Rene Rechthaler [Blechtaler]

initially submitted the part.

2025-03-08 17:24:06

with new common subfiles
