File Detail parts/6432.dat

Unofficial File parts/6432.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

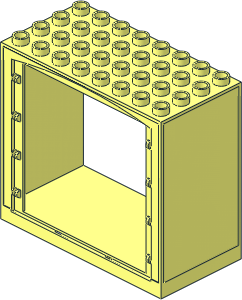

Duplo Building Wall 4 x 8 x 6 with Open Back and Double Door Opening

File Header:

0 Duplo Building Wall 4 x 8 x 6 with Open Back and Double Door Opening
0 Name: 6432.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Place Door with 1 2 135.5 144 -75.5 -1 0 0 0 -1 0 0 0 1 87321.dat
0 !HELP Place Door with 1 14 -135.5 144 -75.5 1 0 0 0 1 0 0 0 1 87321.dat

0 BFC CERTIFY CCW

Show contents

0 // top
1 16 0 0 0 0 0 160 0 1 0 -80 0 0 rect.dat
1 16 80 0 0 1 0 0 0 2.75 0 0 0 -1 stug7-4x4.dat
1 16 -80 0 0 1 0 0 0 2.75 0 0 0 -1 stug7-4x4.dat

0 // mirrored halves
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6432s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\6432s01.dat

0 // back
4 16 160 0 80 155 5 80 -155 5 80 -160 0 80
4 16 -155 264 80 155 264 80 160 288 80 -160 288 80

0 // front outer frame
1 16 0 144 -80 160 0 0 0 0 144 0 1 0 recte3.dat
4 16 -155 5 -80 155 5 -80 160 0 -80 -160 0 -80
4 16 160 288 -80 139.5 268 -80 -139.5 268 -80 -160 288 -80

0 // front thin indent
0 BFC INVERTNEXT
1 16 0 264 -79.5 0 0 155 0 -259 0 .5 0 0 box3u2p.dat
4 16 139.5 7 -79 155 5 -79 -155 5 -79 -139.5 7 -79

0 // front thick indent
1 16 0 268 -76.5 139.5 0 0 0 1 0 0 0 -3.5 recte3.dat
1 16 0 268 -74.5 44 0 0 0 1 0 0 0 1.5 rect3.dat
4 16 -56 268 -76 -139.5 268 -80 139.5 268 -80 56 268 -76

0 // front hinge surface
3 16 123 22 -73 0 7 -73 -123 22 -73
4 16 123 264 -73 -123 264 -73 -139.5 268 -73 139.5 268 -73

0 // front innermost frame
0 BFC INVERTNEXT
1 16 0 264 -71 0 0 123 0 -242 0 2 0 0 box3u2p.dat
1 16 0 264 -71 0 0 123 0 1 0 -2 0 0 rect1.dat

0 // back side of front
4 16 123 22 -69 -123 22 -69 -112.156 6.3817 -69 112.156 6.3817 -69
4 16 112.156 5 -69 112.156 6.3817 -69 -112.156 6.3817 -69 -112.156 5 -69
2 24 112.156 5 -69 -112.156 5 -69

0 // inside
0 BFC INVERTNEXT
1 16 0 264 2.5 0 0 155 0 -259 0 77.5 0 0 box3u2p.dat
4 16 155 264 80 -155 264 80 -123 264 -69 123 264 -69
2 24 155 264 80 -155 264 80

0 // bottom hem
4 16 -160 288 -80 -156 288 -76 156 288 -76 160 288 -80
4 16 156 288 76 -156 288 76 -160 288 80 160 288 80
2 24 156 288 -76 -156 288 -76
2 24 160 288 80 -160 288 80

0 // bottom box bottom
4 16 -144 268 -68 -156 268 76 156 268 76 144 268 -68
1 16 0 269 -72 44 0 0 0 1 0 0 0 4 box2-5.dat

0 // bottom box sides
0 BFC INVERTNEXT
1 16 0 278 -76 0 0 156 10 0 0 0 152 0 box3u2p.dat
4 16 144 270 -76 156 288 -76 -156 288 -76 -144 270 -76

0 // bottom studs and reinforcements
1 16 0 268 0 0 0 1 0 -4 0 1 0 0 stud8.dat

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/6432s01.dat (Needs More Votes)

Current Votes:

User	Vote
RainbowDolphin	Certify

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2025-04-06 09:08:23

Duplo hinges according to https://forums.ldraw.org/thread-28747-post-56962.html

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-07-22 13:04:26

Takeshi Takahashi [RainbowDolphin]

made the following comment.

2025-07-22 13:07:20

Are the dimensions 4 x 8 x 5?

Magnus Forsberg [MagFors]

edited the part header.

2025-07-22 13:32:47

Header Edits

description:
Duplo Double Door Frame 4 x 8 x 10
to
Duplo Double Door Frame 4 x 8 x 6

Magnus Forsberg [MagFors]

edited the part header.

2025-07-22 22:44:30

Header Edits

help:
0 !HELP Place Door with 1 2 135.5 144 -75.5 -1 0 0 0 1 0 0 0 1 87321.dat 0 !HELP Place Door with 1 14 -135.5 144 -75.5 1 0 0 0 1 0 0 0 1 87321.dat
to
0 !HELP Place Door with 1 2 135.5 144 -75.5 -1 0 0 0 -1 0 0 0 1 87321.dat 0 !HELP Place Door with 1 14 -135.5 144 -75.5 1 0 0 0 1 0 0 0 1 87321.dat

Magnus Forsberg [MagFors]

made the following comment.

2025-07-22 22:45:15

Corrected Help info.
Don't mirror parts. Rotate them.

Peter Blomberg [WUIt]

made the following comment.

2025-07-23 03:58:03

The physical part is 4 x 8 x 6. It is intended to be a garage, so it is one higher than most non-double doors.

Magnus Forsberg [MagFors]

made the following comment.

2025-07-23 07:22:53

There is a very similar part called 6431, "Duplo Building Wall 4 x 8 x 6 with Open Back and Door and Window Opening"
Maybe this one should have a fitting description?

Magnus Forsberg [MagFors]

edited the part header.

2025-07-23 11:57:28

Header Edits

description:
Duplo Double Door Frame 4 x 8 x 6
to
Duplo Building Wall 4 x 8 x 6 with Open Back and Double Door Opening
