Unofficial File parts/271.dat
Part Attributes:
File Header:

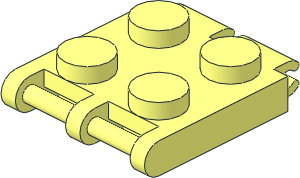

0 Plate 2 x 2 with Hinges
0 Name: 271.dat
0 Author: Niels Karsdorp [nielsk]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS bracelet, BrickLink 312c, chain, jewlery, Rebrickable 312c, Scala
0 !KEYWORDS wristband, wristlet
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2025-04-15 [Blechtaler] reworked, made CCW, fixed gaps and t-junk
Show contents
0 // Left round front
1 16 -20 4 -20 0 1 0 4 0 0 0 0 -4 2-4chrd.dat
1 16 -20 4 -20 0 4 0 4 0 0 0 0 -4 2-4cylo.dat
1 16 -16 4 -20 0 -1 0 4 0 0 0 0 -4 2-4chrd.dat
2 24 -16 0 -20 -16 0 -16
2 24 -16 8 -20 -16 8 -12
3 16 -20 0 -20 -16 0 -20 -16 0 -16
3 16 -16 8 -20 -20 8 -20 -16 8 -12
4 16 -16 4 -16 -16 0 -16 -16 0 -20 -16 8 -20
4 16 -16 8 -12 -16 4 -12 -16 4 -16 -16 8 -20
0 // Center round front
1 16 -2 4 -20 0 1 0 4 0 0 0 0 -4 2-4chrd.dat
1 16 -2 4 -20 0 4 0 4 0 0 0 0 -4 2-4cylo.dat
1 16 2 4 -20 0 -1 0 4 0 0 0 0 -4 2-4chrd.dat
1 16 0 0 -18 0 0 2 0 1 0 2 0 0 rect2p.dat
1 16 0 8 -16 0 0 2 0 -1 0 4 0 0 rect2p.dat
4 16 -2 0 -16 -2 4 -16 -2 8 -20 -2 0 -20
4 16 -2 4 -12 -2 8 -12 -2 8 -20 -2 4 -16
4 16 2 4 -16 2 0 -16 2 0 -20 2 8 -20
4 16 2 8 -12 2 4 -12 2 4 -16 2 8 -20
0 // Right round front
1 16 20 4 -20 0 -1 0 -4 0 0 0 0 -4 2-4chrd.dat
1 16 16 4 -20 0 4 0 4 0 0 0 0 -4 2-4cylo.dat
1 16 16 4 -20 0 1 0 4 0 0 0 0 -4 2-4chrd.dat
2 24 16 0 -20 16 0 -16
2 24 16 8 -20 16 8 -12
3 16 16 0 -16 16 0 -20 20 0 -20
3 16 20 8 -20 16 8 -20 16 8 -12
4 16 16 0 -16 16 4 -16 16 8 -20 16 0 -20
4 16 16 4 -12 16 8 -12 16 8 -20 16 4 -16
0 // Top
4 16 -20 0 -20 -16 0 -16 -16 0 16 -20 0 16
4 16 -2 0 16 -16 0 16 -16 0 -16 -2 0 -16
4 16 2 0 16 -2 0 16 -2 0 -16 2 0 -16
4 16 16 0 16 2 0 16 2 0 -16 16 0 -16
4 16 16 0 16 16 0 -16 20 0 -20 20 0 16
0 // Studs
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 stug-2x2.dat
0 // Sides
1 16 -20 4 -2 0 1 0 0 0 4 18 0 0 rect2p.dat
1 16 20 4 -2 0 -1 0 0 0 4 18 0 0 rect2p.dat
0 // Front faces
1 16 -9 2 -16 7 0 0 0 0 2 0 1 0 rect.dat
1 16 -9 4 -14 0 0 7 0 -1 0 2 0 0 rect2p.dat
1 16 -9 6 -12 7 0 0 0 0 2 0 1 0 rect.dat
1 16 9 2 -16 7 0 0 0 0 2 0 1 0 rect.dat
1 16 9 4 -14 0 0 7 0 -1 0 2 0 0 rect2p.dat
1 16 9 6 -12 7 0 0 0 0 2 0 1 0 rect.dat
0 // Front bars
1 16 -2 4 -20 0 -14 0 2 0 0 0 0 2 4-4cylo.dat
1 16 2 4 -20 0 14 0 2 0 0 0 0 2 4-4cylo.dat
0 // Bottom
4 16 -16 8 -12 -20 8 -20 -20 8 16 -16 8 16
4 16 -2 8 -12 -16 8 -12 -16 8 16 -2 8 16
4 16 2 8 -12 -2 8 -12 -2 8 16 2 8 16
4 16 16 8 -12 2 8 -12 2 8 16 16 8 16
4 16 16 8 -12 16 8 16 20 8 16 20 8 -20
0 // Rear sides
1 16 18 4 16 2 0 0 0 0 4 0 -1 0 rect.dat
1 16 0 4 16 2 0 0 0 0 4 0 -1 0 rect.dat
1 16 -18 4 16 2 0 0 0 0 4 0 -1 0 rect.dat
0 // Left Clip
1 16 -9 0 18 0 0 7 0 1 0 2 0 0 rect2p.dat
1 16 -9 8 18 0 0 7 0 -1 0 2 0 0 rect2p.dat
0 BFC INVERTNEXT
1 16 -2 4 20 0 -14 0 2 0 0 0 0 -2 2-4cylo.dat
1 16 -2 4 20 0 -1 0 2 0 0 0 0 -2 2-4ndis.dat
1 16 -16 4 20 0 1 0 2 0 0 0 0 -2 2-4ndis.dat
4 16 -2 0 16 -2 2 18 -2 2 20 -2 0 20
4 16 -2 4 18 -2 2 18 -2 0 16 -2 8 16
3 16 -2 4 18 -2 8 16 -2 6 18
4 16 -2 6 20 -2 6 18 -2 8 16 -2 8 20
4 16 -16 2 20 -16 2 18 -16 0 16 -16 0 20
4 16 -16 8 16 -16 0 16 -16 2 18 -16 4 18
3 16 -16 8 16 -16 4 18 -16 6 18
4 16 -16 6 20 -16 8 20 -16 8 16 -16 6 18
1 16 -2 4 20 0 -14 0 4 0 0 0 0 4 1-8cylo.dat
1 16 -2 4 20 0 -14 0 -4 0 0 0 0 4 1-8cylo.dat
0 BFC INVERTNEXT
1 16 -2 4 20 0 -14 0 2 0 0 0 0 2 1-8cylo.dat
0 BFC INVERTNEXT
1 16 -2 4 20 0 -14 0 -2 0 0 0 0 2 1-8cylo.dat
1 16 -2 4 20 0 -1 0 2 0 0 0 0 2 1-8ring1.dat
1 16 -2 4 20 0 -1 0 -2 0 0 0 0 2 1-8ring1.dat
1 16 -16 4 20 0 1 0 2 0 0 0 0 2 1-8ring1.dat
1 16 -16 4 20 0 1 0 -2 0 0 0 0 2 1-8ring1.dat
1 16 -2 1.8787 22.1213 0 -14 0 -.7071 0 .7071 .7071 0 .7071 2-4cylo.dat
1 16 -2 1.8787 22.1213 0 -1 0 -.7071 0 .7071 .7071 0 .7071 2-4chrd.dat
1 16 -16 1.8787 22.1213 0 1 0 -.7071 0 .7071 .7071 0 .7071 2-4chrd.dat
1 16 -2 6.1213 22.1213 0 -14 0 -.7071 0 -.7071 -.7071 0 .7071 2-4cylo.dat
1 16 -2 6.1213 22.1213 0 -1 0 -.7071 0 -.7071 -.7071 0 .7071 2-4chrd.dat
1 16 -16 6.1213 22.1213 0 1 0 -.7071 0 -.7071 -.7071 0 .7071 2-4chrd.dat
0 // Right Clip
1 16 9 0 18 0 0 -7 0 1 0 2 0 0 rect2p.dat
1 16 9 8 18 0 0 -7 0 -1 0 2 0 0 rect2p.dat
0 BFC INVERTNEXT
1 16 2 4 20 0 14 0 2 0 0 0 0 -2 2-4cylo.dat
1 16 2 4 20 0 1 0 2 0 0 0 0 -2 2-4ndis.dat
1 16 16 4 20 0 -1 0 2 0 0 0 0 -2 2-4ndis.dat
4 16 2 2 20 2 2 18 2 0 16 2 0 20
4 16 2 0 16 2 2 18 2 4 18 2 8 16
3 16 2 8 16 2 4 18 2 6 18
4 16 2 8 16 2 6 18 2 6 20 2 8 20
4 16 16 0 16 16 2 18 16 2 20 16 0 20
4 16 16 2 18 16 0 16 16 8 16 16 4 18
3 16 16 4 18 16 8 16 16 6 18
4 16 16 8 16 16 8 20 16 6 20 16 6 18
1 16 2 4 20 0 14 0 4 0 0 0 0 4 1-8cylo.dat
1 16 2 4 20 0 14 0 -4 0 0 0 0 4 1-8cylo.dat
0 BFC INVERTNEXT
1 16 2 4 20 0 14 0 2 0 0 0 0 2 1-8cylo.dat
0 BFC INVERTNEXT
1 16 2 4 20 0 14 0 -2 0 0 0 0 2 1-8cylo.dat
1 16 2 4 20 0 1 0 2 0 0 0 0 2 1-8ring1.dat
1 16 2 4 20 0 1 0 -2 0 0 0 0 2 1-8ring1.dat
1 16 16 4 20 0 -1 0 2 0 0 0 0 2 1-8ring1.dat
1 16 16 4 20 0 -1 0 -2 0 0 0 0 2 1-8ring1.dat
1 16 2 1.8787 22.1213 0 14 0 -.7071 0 .7071 .7071 0 .7071 2-4cylo.dat
1 16 2 1.8787 22.1213 0 1 0 -.7071 0 .7071 .7071 0 .7071 2-4chrd.dat
1 16 16 1.8787 22.1213 0 -1 0 -.7071 0 .7071 .7071 0 .7071 2-4chrd.dat
1 16 2 6.1213 22.1213 0 14 0 -.7071 0 -.7071 -.7071 0 .7071 2-4cylo.dat
1 16 2 6.1213 22.1213 0 1 0 -.7071 0 -.7071 -.7071 0 .7071 2-4chrd.dat
1 16 16 6.1213 22.1213 0 -1 0 -.7071 0 -.7071 -.7071 0 .7071 2-4chrd.dat
