Unofficial File parts/s/6309s02.dat
File Header:

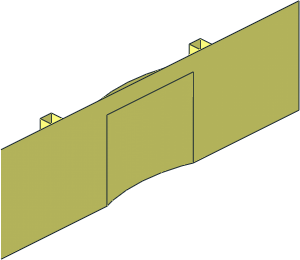

0 ~Duplo Tile 2 x 2 x 0.5 - Quarter
0 Name: s\6309s02.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-04-30 [WUIt] Subparted from 6309 by Chris Dee [cwdee], used prims, removed T-junctions
Show contents
0 // inside
1 16 36 4 0 1 0 0 0 7 0 0 0 1 s\6309s03.dat
1 16 34 4 20 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
1 16 34 4 -20 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
0 // bottom
1 16 74 24 0 -36 0 0 0 -1 0 0 0 36 48\1-24tndis.dat
4 16 36 24 11.595 36 24 36 40 24 40 40 24 11.595
4 16 40 24 -40 36 24 -36 36 24 -11.595 40 24 -11.595
4 16 36 24 11.595 40 24 11.595 39.2276 24 9.3168 38 24 9.3168
4 16 36 24 11.595 38 24 9.3168 38 24 0 36 24 0
1 16 74 24 0 -36 0 0 0 -1 0 0 0 -36 48\1-24tndis.dat
4 16 39.2276 24 -9.3168 40 24 -11.595 36 24 -11.595 38 24 -9.3168
4 16 38 24 0 38 24 -9.3168 36 24 -11.595 36 24 0
0 // outside
0 BFC INVERTNEXT
1 16 40 24 0 1 0 0 0 -10 0 0 0 1 s\6309s03.dat
4 16 40 0 40 40 0 -40 40 4 -11.595 40 4 11.595
4 16 40 24 11.595 40 24 40 40 0 40 40 4 11.595
4 16 40 24 -40 40 24 -11.595 40 4 -11.595 40 0 -40
2 24 40 0 40 40 0 -40
2 24 40 0 40 40 24 40
2 24 40 24 40 40 24 11.595
2 24 40 24 -40 40 24 -11.595
