File Detail parts/s/98224s01.dat

Unofficial File parts/s/98224s01.dat

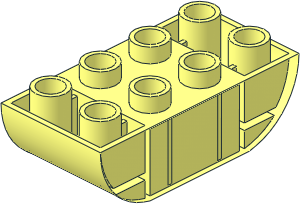

~Duplo Brick 2 x 4 with Curved Bottom without Front Surface

File Header:

0 ~Duplo Brick  2 x  4 with Curved Bottom without Front Surface
0 Name: s\98224s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
0 !HISTORY 2025-05-01 [WUIt] Rotated parent part, corrected slope curvature

Show contents

1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\98252bs01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\98252bs01.dat

2 24 -40 48 40 -40 48 -40
4 16 -40 0 40 -40 0 -40 40 0 -40 40 0 40
1 16 0 4 0 0 0 -1 0 -10 0 1 0 0 stud8.dat
1 16 -20 4 34 -1.5 0 0 0 43 0 0 0 -2 box4-1.dat
1 16 34 4 20 0 0 -2 0 43 0 1.5 0 0 box4-1.dat
1 16 34 4 -20 0 0 -2 0 43 0 1.5 0 0 box4-1.dat
1 16 -34 4 20 0 0 2 0 43 0 1.5 0 0 box4-1.dat
1 16 -34 4 -20 0 0 2 0 43 0 1.5 0 0 box4-1.dat
1 16 20 4 -34 1.5 0 0 0 43 0 0 0 2 box4-1.dat
1 16 20 4 34 -1.5 0 0 0 43 0 0 0 -2 box4-1.dat
1 16 -20 4 -34 1.5 0 0 0 43 0 0 0 2 box4-1.dat
0 BFC INVERTNEXT
1 16 0 48 0 0 0 -36 0 -44 0 36 0 0 box5.dat
4 16 -40 48 40 -36 48 36 -36 48 -36 -40 48 -40
4 16 40 48 -40 36 48 -36 36 48 36 40 48 40
4 16 -40 48 -40 -40 0 -80 -40 0 80 -40 48 40
2 24 40 48 -40 40 48 40
2 24 -40 0 80 -40 0 -80
2 24 40 0 -80 40 0 80

1 16 -40 0 -33 0 1 0 0 0 48.3 -47 0 0 48\1-8chrd.dat
3 16 -40 38.3212 -61.6136 -40 34.1529 -66.2337 -40 41.8278 -56.5
4 16 -40 46.653 -45.1636 -40 44.6244 -50.9869 -40 41.8278 -56.5 -40 48 -40
4 16 -40 48 -40 -40 41.8278 -56.5 -40 34.1529 -66.2337 -40 0 -80

1 16 -40 0 33 0 1 0 0 0 48.3 47 0 0 48\1-8chrd.dat
3 16 -40 34.1529 66.2337 -40 38.3212 61.6136 -40 41.8278 56.5
4 16 -40 41.8278 56.5 -40 44.6244 50.9869 -40 46.653 45.1636 -40 48 40
4 16 -40 34.1529 66.2337 -40 41.8278 56.5 -40 48 40 -40 0 80

Status:

Needs More Votes (F)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/98252bs01.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Archived Part Events:

None

Peter Blomberg [WUIt]

initially submitted the part.

2025-05-01 16:48:42
