Unofficial File parts/s/31165s02.dat
File Header:

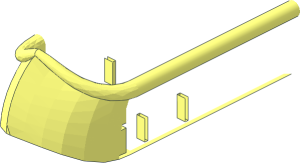

0 ~Duplo Canoe 2 x 8 - Half
0 Name: s\31165s02.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // top common
4 16 15.308 0 -116.956 40 0 -80 -40 0 -80 -15.308 0 -116.956
3 16 15.308 0 -116.956 -15.308 0 -116.956 0 0 -124
2 24 0 -57.4 -124 0 0 -124
0 // bottom common
4 16 44 24 -80 40 24 -76 40 24 76 44 24 80
4 16 40 24 -80 -40 24 -80 -40 24 -76 40 24 -76
0 // railing
1 16 46.25 -30 -80 -6.25 0 0 0 0 -6.25 0 160 0 3-4cyli.dat
4 16 44 -23.75 80 46.25 -23.75 80 46.25 -23.75 -80 44 -23.75 -80
0 // outside half
2 24 0 -57.4 -124 0 -60.9715 -125.2131
2 24 44 24 80 44 24 -80
2 24 44 -23.75 -80 44 -23.75 80
0 // bottom half
2 24 0 4 -128.4 0 -50 -128.4
1 16 0 14 -80 0 0 40 10 0 0 0 1 0 rect.dat
1 16 0 4 -85.5 0 0 40 0 -1 0 5.5 0 0 rect2p.dat
3 16 40 4 -91 0 4 -128.4 -40 4 -91
0 // quarters
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\31165s03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\31165s03.dat
0 // nose
3 16 0 -14.4 -158.4 -2.1 -6 -157 2.1 -6 -157
3 16 2.1 -6 -157 -2.1 -6 -157 0 -1.9 -150
2 24 -2.1 -6 -157 2.1 -6 -157
2 24 0 -50 -128.4 0 -26 -150
2 24 0 -26 -150 0 -1.9 -150
2 24 0 -58.8 -130.4 0 -56.8 -134
2 24 0 -51.3 -140.3 0 -45 -145.8
2 24 0 -61 -130.4 0 -59.9 -130.6
2 24 0 -38 -150.4 0 -30.5 -154.1
2 24 0 -22.6 -156.8 0 -14.4 -158.4
2 24 0 -45 -145.8 0 -38 -150.4
2 24 0 -61.9 -125.8 0 -62.5 -126.7
2 24 0 -30.5 -154.1 0 -22.6 -156.8
2 24 0 -62.5 -126.7 0 -62.7 -127.8
2 24 0 -57.4 -124 0 -61 -125.2
2 24 0 -62.5 -128.9 0 -61.9 -129.8
2 24 0 -61.9 -129.8 0 -61 -130.4
2 24 0 -61 -125.2 0 -61.9 -125.8
2 24 0 -59.9 -130.6 0 -58.8 -130.4
2 24 0 -62.7 -127.8 0 -62.5 -128.9
2 24 0 -56.8 -134 0 -51.3 -140.3
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2025-05-08 13:28:25
2025-10-04 12:54:34
Rounded vertexes and inlined orphan edge-prims.
2025-10-08 06:12:38
* T-junk:
2 24 0 0 -124 15.308 0 -116.956
2 24 0 0 -124 -15.308 0 -116.956
* Rects
2 24 0 0 -124 15.308 0 -116.956
2 24 0 0 -124 -15.308 0 -116.956
* Rects
2025-10-08 10:53:10
Removed T-junc by editing subfile
2025-10-09 11:53:43
* Looks good beside the rects
Creative Commons Attribution License information
This part is copyright © Peter Blomberg
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
* T-junk:
2 25 15.308 0 -116.956 0 0 -124
2 25 -15.308 0 -116.956 0 0 -124
* Rects
