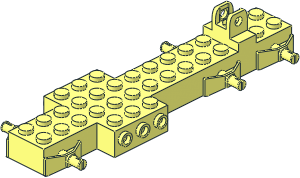

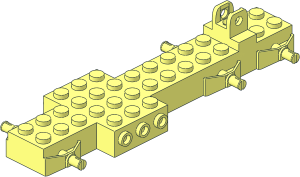

Car Base 4 x 14 x 1 with Tow Ball Socket

File Header:

0 Car Base  4 x 14 x  1 with Tow Ball Socket
0 Name: 30842.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2018-01-28 {LEGO Digital Designer} Original part shape
0 !HISTORY 2025-05-04 [Sirio] File preparation for LDraw Parts Tracker

Show contents

0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30842s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30842s01.dat
1 16 0 -20 90 1 0 0 0 1 0 0 0 1 s\30842s03.dat
0 // Primitives
1 16 0 -9 90 2.5 0 0 0 -1 0 0 0 6 rect.dat
1 16 0 0 120 0 0 -1 0 1 0 1 0 0 stug-2x2.dat
1 16 -10 0 30 0 0 -1 0 1 0 1 0 0 stug-1x5.dat
1 16 10 0 30 0 0 -1 0 1 0 1 0 0 stug-1x5.dat
1 16 -30 0 -50 0 0 -1 0 1 0 1 0 0 stug-1x3.dat
1 16 -10 0 -50 0 0 -1 0 1 0 1 0 0 stug-1x3.dat
1 16 10 0 -50 0 0 -1 0 1 0 1 0 0 stug-1x3.dat
1 16 30 0 -50 0 0 -1 0 1 0 1 0 0 stug-1x3.dat
1 16 -10 0 -110 0 0 -1 0 1 0 1 0 0 stug-1x3.dat
1 16 10 0 -110 0 0 -1 0 1 0 1 0 0 stug-1x3.dat
1 16 0 0 30 20 0 0 0 1 0 0 0 50 rect3.dat
1 16 0 4 120 20 0 0 0 -4 0 0 0 20 box2-7.dat
1 16 0 4 -110 20 0 0 0 -4 0 0 0 -30 box2-7.dat
1 16 0 4 120 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 0 4 60 1 0 0 0 -5 0 0 0 1 stud4a.dat
1 16 0 4 40 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 0 4 20 1 0 0 0 -5 0 0 0 1 stud4a.dat
1 16 0 4 0 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 0 4 -20 1 0 0 0 -5 0 0 0 1 stud4a.dat
1 16 0 4 -40 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 0 4 -60 1 0 0 0 -5 0 0 0 1 stud4a.dat
1 16 0 4 -80 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 0 4 -100 1 0 0 0 -5 0 0 0 1 stud4a.dat
1 16 0 4 60 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 4 20 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 4 -20 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 4 -60 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 4 -100 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 4 -120 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -40 10 -50 0 1 0 1 0 0 0 0 -1 stug2-3x1.dat
1 16 40 10 -50 0 -1 0 1 0 0 0 0 1 stug2-3x1.dat
0 BFC INVERTNEXT
1 16 0 14 98.5 17 0 0 0 0 -10 0 2.5 0 box2-5.dat
0 BFC INVERTNEXT
1 16 0 14 81.5 17 0 0 0 0 -10 0 -2.5 0 box2-5.dat
0 BFC INVERTNEXT
1 16 0 24 120 16 0 0 0 -20 0 0 0 16 box5.dat
0 // Faces
4 16 -20 0 -20 -20 0 -80 20 0 -80 20 0 -20
4 16 -23 24 -140 -16 24 -136 16 24 -136 23 24 -140
4 16 -20 8 -140 -23 24 -140 23 24 -140 20 8 -140
4 16 -20 0 100 -10 -8 100 10 -8 100 20 0 100
4 16 -20 24 140 -20 8 140 20 8 140 20 24 140
4 16 20 24 140 16 24 136 -16 24 136 -20 24 140
4 16 -20 0 80 20 0 80 10 -8 80 -10 -8 80
4 16 16 4 76 -16 4 76 -16 24 76 16 24 76
4 16 -16 24 76 -17 24 79 17 24 79 16 24 76
4 16 16 24 104 17 24 101 -17 24 101 -16 24 104
4 16 6 -4 96 2.5 -9 96 -2.5 -9 96 -6 -4 96
4 16 6 -4 84 -6 -4 84 -2.5 -9 84 2.5 -9 84
4 16 17 4 96 6 -4 96 -6 -4 96 -17 4 96
4 16 17 4 84 -17 4 84 -6 -4 84 6 -4 84
4 16 16 4 -99 -16 4 -99 -16 4 -76 16 4 -76
4 16 16 4 -71 16 4 -76 -16 4 -76 -16 4 -71
4 16 -16 4 -71 -16 4 -69 16 4 -69 16 4 -71
4 16 16 4 -69 -16 4 -69 -16 4 -51 16 4 -51
4 16 16 4 -49 16 4 -51 -16 4 -51 -16 4 -49
4 16 -16 4 -49 -16 4 -31 16 4 -31 16 4 -49
4 16 16 4 -29 16 4 -31 -16 4 -31 -16 4 -29
4 16 -16 4 -29 -16 4 -24 16 4 -24 16 4 -29
4 16 16 4 -21 16 4 -24 -16 4 -24 -16 4 -21
4 16 8 4 -101 -8 4 -101 -8 4 -99 8 4 -99
4 16 8 4 -21 -8 4 -21 -8 4 -19 8 4 -19
4 16 16 24 -136 -16 24 -136 -16 4 -136 16 4 -136
4 16 16 4 -101 16 4 -136 -16 4 -136 -16 4 -101
4 16 16 4 -19 -16 4 -19 -16 4 76 16 4 76
0 // Edges
2 24 20 0 100 -20 0 100
2 24 16 4 76 -16 4 76
2 24 16 4 -136 -16 4 -136
2 24 20 24 140 -20 24 140
2 24 16 24 76 -16 24 76
2 24 16 24 -136 -16 24 -136
2 24 23 24 -140 -23 24 -140

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/30842s03.dat (Errors Found)
parts/s/30842s01.dat (Needs More Votes)
parts/s/30842s02.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Massimo Maso [Sirio]

initially submitted the part.

2025-05-09 20:40:22

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2025-05-09 21:11:12

overlaps at the bottom studs

Massimo Maso [Sirio]

submitted a new version of the part.

2025-05-10 21:57:48

Rather than there was an overlap in bottom studs, some edge lines were missing.
Now I have added them and it should be corrected.

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2025-05-10 22:04:37

nope still overlap (go to random color mode)

Rene Rechthaler [Blechtaler]

made the following comment.

2025-05-11 08:12:05

these
1 16 0 18 60 1 0 0 0 -1.5 0 0 0 1 stud4a.dat
1 16 0 18 20 1 0 0 0 -1.5 0 0 0 1 stud4a.dat
1 16 0 18 -20 1 0 0 0 -1.5 0 0 0 1 stud4a.dat
1 16 0 18 -60 1 0 0 0 -1.5 0 0 0 1 stud4a.dat
1 16 0 18 -100 1 0 0 0 -1.5 0 0 0 1 stud4a.dat
can definitely get deleted.
the rest of them should be all stud4 (not stud4a)
->if there is a small edge inside, it isnt that bad...

Massimo Maso [Sirio]

submitted a new version of the part.

2025-05-11 08:32:18

You're right. Fixed now.
