Unofficial File parts/u9231.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

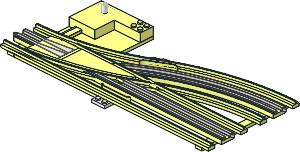

0 ~Train Track 12V Tapered Point Left Manual (Straight) (Obsolete)
0 Name: u9231.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Obsolete
0 !CMDLINE -c1
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2025-05-18 [Blechtaler] Obsoleted due to bad geometry, use u9231bShow file code:
0 // Needs Work: This assembly does not yet reference the point's moving rail
0 // part. It has to be added in its proper position, and the
0 // position of the actuator adjusted accordingly.
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9220.dat
1 15 0 16 0 0 0 1 0 1 0 -1 0 0 u9033.dat
1 16 -180 16 180 1 0 0 0 1 0 0 0 1 u9222.dat
1 16 -180 -8 180 1 0 0 0 1 0 0 0 1 u9224.dat
1 79 -240 -28 180 1 0 0 0 1 0 0 0 1 u9226.datStatus
Needs 2 More Votes (F)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Rene Rechthaler [Blechtaler]
initially submitted the part.
2025-05-18 13:16:53
obsoleted and replaced
