Unofficial File parts/45522.dat
Part Attributes:
File Header:

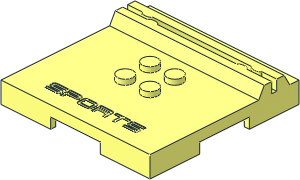

0 Plate 6 x 6 x 0.667 with 4 Studs and Card-holder - "SPORTS"
0 Name: 45522.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !KEYWORDS basketball, Collector, sport
0 !HISTORY 2024-08-27 [GeraldLasser] Completely re-written to optimize Prims and remove overlaps, original by John Riley [jriley]
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
0 !HISTORY 2025-03-26 [OrionP] Fix incorrect color usage
0 !HISTORY 2025-03-30 [OrionP] Official Update 2025-03
0 !HISTORY 2025-05-26 [notmaster] updated for rewritten subfile, removed overlapping quad
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\45522s01.dat
3 16 -60 0 27.5 -36.75 0 -40 -34.75 0 -40
3 16 -60 0 27.5 -34.75 0 -40 -25.75 0 -40
3 16 -60 0 27.5 -25.75 0 -40 -24.25 0 -40
3 16 -60 0 27.5 -24.25 0 -40 -15.25 0 -40
3 16 -60 0 27.5 -15.25 0 -40 -13.25 0 -40
3 16 -60 0 27.5 -13.25 0 -40 -11.75 0 -40
3 16 -60 0 27.5 -11.75 0 -40 -9.75 0 -40
3 16 -60 0 27.5 -9.75 0 -40 -2.75 0 -40
3 16 -60 0 27.5 -2.75 0 -40 -.75 0 -40
4 16 -.75 0 -40 .75 0 -40 60 0 27.5 -60 0 27.5
3 16 60 0 27.5 .75 0 -40 9.75 0 -40
3 16 60 0 27.5 9.75 0 -40 11.75 0 -40
3 16 60 0 27.5 11.75 0 -40 13.25 0 -40
3 16 60 0 27.5 13.25 0 -40 17.75 0 -40
3 16 60 0 27.5 17.75 0 -40 19.75 0 -40
3 16 60 0 27.5 19.75 0 -40 24.25 0 -40
3 16 60 0 27.5 24.25 0 -40 25.75 0 -40
3 16 60 0 27.5 25.75 0 -40 27.75 0 -40
3 16 60 0 27.5 27.75 0 -40 36.75 0 -40
4 16 60 0 27.5 36.75 0 -40 36.75 0 -42 60 0 -60
3 16 60 0 -60 36.75 0 -42 36.75 0 -43
3 16 60 0 -60 36.75 0 -45 36.75 0 -46
3 16 60 0 -60 36.75 0 -46 36.75 0 -48
3 16 60 0 -60 36.75 0 -48 34.75 0 -48
3 16 60 0 -60 34.75 0 -48 25.75 0 -48
3 16 60 0 -60 25.75 0 -48 19.75 0 -48
3 16 60 0 -60 19.75 0 -48 17.75 0 -48
3 16 60 0 -60 17.75 0 -48 11.75 0 -48
3 16 60 0 -60 11.75 0 -48 9.75 0 -48
4 16 9.75 0 -48 2.75 0 -48 -60 0 -60 60 0 -60
3 16 -60 0 -60 2.75 0 -48 .75 0 -48
3 16 -60 0 -60 .75 0 -48 -.75 0 -48
3 16 -60 0 -60 -.75 0 -48 -2.75 0 -48
3 16 -60 0 -60 -2.75 0 -48 -9.75 0 -48
3 16 -60 0 -60 -9.75 0 -48 -11.75 0 -48
3 16 -60 0 -60 -11.75 0 -48 -22.25 0 -48
3 16 -22.25 0 -48 -24.25 0 -48 -60 0 -60
3 16 -60 0 -60 -24.25 0 -48 -25.75 0 -48
3 16 -60 0 -60 -25.75 0 -48 -27.75 0 -48
3 16 -60 0 -60 -27.75 0 -48 -36.75 0 -48
3 16 -36.75 0 -40 -60 0 27.5 -36.75 0 -42
3 16 -36.75 0 -42 -60 0 27.5 -36.75 0 -43
4 16 -36.75 0 -43 -60 0 27.5 -60 0 -60 -36.75 0 -45
3 16 -36.75 0 -45 -60 0 -60 -36.75 0 -46
3 16 -36.75 0 -48 -36.75 0 -46 -60 0 -60
0 // Letter S
0 BFC INVERTNEXT
1 16 -34.75 .5 -42 0 0 -2 0 -.5 0 2 0 0 1-4cylo.dat
1 16 -34.75 .5 -42 0 0 -2 0 1 0 2 0 0 1-4chrd.dat
1 16 -34.75 0 -42 0 0 -2 0 1 0 2 0 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -30.25 0 -41 0 0 4.5 0 .5 0 -1 0 0 box4-4a.dat
1 16 -34.75 0 -43 -2 0 0 0 1 0 0 0 -2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -34.75 .5 -43 -2 0 0 0 -.5 0 0 0 -2 1-4cylo.dat
1 16 -34.75 .5 -43 -2 0 0 0 1 0 0 0 -2 1-4chrd.dat
1 16 -35.75 .5 -42.5 -1 0 0 0 -.5 0 0 0 -.5 box3u6.dat
0 BFC INVERTNEXT
1 16 -31.25 0 -44 -3.5 0 0 0 .5 0 0 0 -1 box3u8p.dat
1 16 -27.75 0 -45 2 0 0 0 1 0 0 0 2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -27.75 .5 -45 2 0 0 0 -.5 0 0 0 2 1-4cylo.dat
1 16 -27.75 .5 -45 2 0 0 0 1 0 0 0 2 1-4chrd.dat
0 BFC INVERTNEXT
1 16 -27.75 .5 -46 0 0 2 0 -.5 0 -2 0 0 1-4cylo.dat
1 16 -27.75 .5 -46 0 0 2 0 1 0 -2 0 0 1-4chrd.dat
1 16 -27.75 0 -46 0 0 2 0 1 0 -2 0 0 1-4ndis.dat
1 16 -26.75 .5 -45.5 1 0 0 0 -.5 0 0 0 -.5 box3u6.dat
0 BFC INVERTNEXT
1 16 -32.25 0 -47 0 0 -4.5 0 .5 0 1 0 0 box4-4a.dat
4 16 -34.75 0 -42 -27.75 0 -43 -25.75 0 -43 -25.75 0 -42
3 16 -34.75 0 -43 -27.75 0 -43 -34.75 0 -42
4 16 -27.75 0 -46 -34.75 0 -45 -36.75 0 -45 -36.75 0 -46
3 16 -34.75 0 -45 -27.75 0 -46 -27.75 0 -45
4 16 -24.25 0 -42 -24.25 0 -40 -25.75 0 -40 -25.75 0 -42
4 16 -24.25 0 -42 -25.75 0 -42 -25.75 0 -43 -24.25 0 -43
4 16 -24.25 0 -43 -25.75 0 -43 -25.75 0 -45 -24.25 0 -45
4 16 -24.25 0 -45 -25.75 0 -45 -25.75 0 -46 -24.25 0 -48
3 16 -25.75 0 -46 -25.75 0 -48 -24.25 0 -48
0 // Letter P
1 16 -15.25 .5 -42 2 0 0 0 1 0 0 0 2 1-4edge.dat
1 16 -15.25 0 -42 2 0 0 0 1 0 0 0 2 1-4edge.dat
1 16 -15.25 0 -42 2 0 0 0 1 0 0 0 2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -15.25 .5 -42 2 0 0 0 -.5 0 0 0 2 1-4cyli.dat
1 16 -15.25 .5 -42 2 0 0 0 1 0 0 0 2 1-4chrd.dat
0 BFC INVERTNEXT
1 16 -19.75 0 -41 0 0 -4.5 0 .5 0 1 0 0 box4-4a.dat
2 24 -15.25 0 -42 -15.25 .5 -42
2 24 -15.25 0 -43 -15.25 .5 -43
0 BFC INVERTNEXT
1 16 -15.25 .5 -43 0 0 2 0 -.5 0 -2 0 0 1-4cylo.dat
1 16 -15.25 .5 -43 0 0 2 0 1 0 -2 0 0 1-4chrd.dat
1 16 -15.25 0 -43 0 0 2 0 1 0 -2 0 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -14.25 0 -42.5 0 0 -1 0 .5 0 .5 0 0 box3u8p.dat
0 BFC INVERTNEXT
1 16 -18.75 0 -44 -3.5 0 0 0 .5 0 0 0 -1 box3u8p.dat
0 BFC INVERTNEXT
1 16 -23.25 0 -46.5 -1 0 0 0 .5 0 0 0 -1.5 box4-4a.dat
0 BFC INVERTNEXT
1 16 -23.25 .25 -44 -1 0 0 0 .25 0 0 0 1 box3-7a.dat
2 24 -22.25 0 -45 -22.25 .5 -45
3 16 -22.25 0 -43 -15.25 0 -43 -15.25 0 -42
4 16 -15.25 0 -42 -24.25 0 -42 -24.25 0 -43 -22.25 0 -43
3 16 -15.25 0 -45 -22.25 0 -45 -22.25 0 -48
4 16 -22.25 0 -48 -11.75 0 -48 -13.25 0 -45 -15.25 0 -45
4 16 -11.75 0 -42 -11.75 0 -40 -13.25 0 -40 -13.25 0 -42
4 16 -13.25 0 -42 -13.25 0 -43 -11.75 0 -46 -11.75 0 -42
4 16 -11.75 0 -48 -11.75 0 -46 -13.25 0 -43 -13.25 0 -45
0 // Letter O
0 BFC INVERTNEXT
1 16 -6.25 .25 -41 -3.5 0 0 0 .25 0 0 0 1 box2-9p.dat
0 BFC INVERTNEXT
1 16 -9.75 .5 -42 0 0 -2 0 -.5 0 2 0 0 1-4cylo.dat
1 16 -9.75 .5 -42 0 0 -2 0 1 0 2 0 0 1-4chrd.dat
1 16 -9.75 0 -42 0 0 -2 0 1 0 2 0 0 1-4ndis.dat
1 16 -2.75 0 -42 2 0 0 0 1 0 0 0 2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -2.75 .5 -42 2 0 0 0 -.5 0 0 0 2 1-4cylo.dat
1 16 -2.75 .5 -42 2 0 0 0 1 0 0 0 2 1-4chrd.dat
0 BFC INVERTNEXT
1 16 -1.75 .25 -44 0 0 1 0 .25 0 2 0 0 box2-9p.dat
0 BFC INVERTNEXT
1 16 -10.75 .25 -44 0 0 -1 0 .25 0 2 0 0 box2-9p.dat
0 BFC INVERTNEXT
1 16 -6.25 .25 -47 3.5 0 0 0 .25 0 0 0 -1 box2-9p.dat
0 BFC INVERTNEXT
1 16 -2.75 .5 -46 0 0 2 0 -.5 0 -2 0 0 1-4cylo.dat
1 16 -2.75 .5 -46 0 0 2 0 1 0 -2 0 0 1-4chrd.dat
1 16 -2.75 0 -46 0 0 2 0 1 0 -2 0 0 1-4ndis.dat
1 16 -9.75 0 -46 -2 0 0 0 1 0 0 0 -2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -9.75 .5 -46 -2 0 0 0 -.5 0 0 0 -2 1-4cylo.dat
1 16 -9.75 .5 -46 -2 0 0 0 1 0 0 0 -2 1-4chrd.dat
1 16 -6.25 .5 -44 3.5 0 0 0 -.5 0 0 0 2 box5-4a.dat
4 16 .75 0 -40 -.75 0 -40 -.75 0 -42 .75 0 -42
4 16 .75 0 -43 .75 0 -42 -.75 0 -42 -.75 0 -46
4 16 .75 0 -48 .75 0 -43 -.75 0 -46 -.75 0 -48
0 // Letter R
0 BFC INVERTNEXT
1 16 5.25 .25 -41 0 0 -4.5 0 .25 0 1 0 0 box3-7a.dat
1 16 9.75 .5 -42 0 0 2 0 1 0 2 0 0 3-8chrd.dat
0 BFC INVERTNEXT
1 16 9.75 .5 -42 0 0 2 0 -.5 0 2 0 0 3-8cylo.dat
1 16 5.25 .5 -42.5 0 0 4.5 0 -.5 0 .5 0 0 box4-4a.dat
1 16 9.75 0 -42 2 0 0 0 1 0 0 0 2 1-4ndis.dat
1 16 9.75 0 -42 2 0 0 0 1 0 0 0 -2 1-8tndis.dat
1 16 11.1642 .25 -43.5 0 1 0 .25 0 0 0 0 .0858 rect.dat
0 BFC INVERTNEXT
1 16 9.75 0 -45 2 0 0 0 .5 0 0 0 2 1-8cylo.dat
1 16 9.75 .5 -45 2 0 0 0 1 0 0 0 2 1-8disc.dat
1 16 9.75 0 -45 2 0 0 0 1 0 0 0 2 1-8tndis.dat
0 BFC INVERTNEXT
1 16 10.75 .25 -46.5 1 0 0 0 .25 0 0 0 -1.5 box3-7a.dat
1 16 6.25 .5 -46.5 -3.5 0 0 0 -.5 0 0 0 1.5 box4-4a.dat
0 BFC INVERTNEXT
1 16 1.75 .25 -45.5 0 -1 0 -.25 0 0 0 0 -2.5 box2-7.dat
4 16 .75 .5 -43 .75 .5 -48 2.75 .5 -48 2.75 .5 -45
4 16 2.75 .5 -45 9.75 .5 -45 9.75 .5 -43 .75 .5 -43
4 16 9.75 .5 -43 9.75 .5 -45 11.1642 .5 -43.5858 11.1642 .5 -43.4142
3 16 9.75 .5 -42 9.75 .5 -43 11.1642 .5 -43.4142
4 16 11.75 0 -43.4142 11.1642 0 -43.4142 11.1642 0 -43.5858 11.75 0 -43.5858
4 16 13.25 0 -42 13.25 0 -40 11.75 0 -40 11.75 0 -42
3 16 13.25 0 -42 11.75 0 -42 11.75 0 -43.4142
3 16 13.25 0 -42 11.75 0 -43.4142 11.75 0 -43.5858
4 16 11.75 0 -43.5858 11.75 0 -45 17.75 0 -42 13.25 0 -42
4 16 11.75 0 -48 17.75 0 -48 17.75 0 -42 11.75 0 -45
0 // Letter T
0 BFC INVERTNEXT
1 16 15.5 0 -41 0 0 -2.25 0 .5 0 1 0 0 box4-4a.dat
0 BFC INVERTNEXT
1 16 22 0 -41 0 0 2.25 0 .5 0 -1 0 0 box4-4a.dat
0 BFC INVERTNEXT
1 16 18.75 .25 -42 -1 0 0 0 0 .25 0 -6 0 box4-2p.dat
1 16 18.75 .25 -40 1 0 0 0 0 -.25 0 1 0 rect2p.dat
4 16 19.75 .5 -40 17.75 .5 -40 17.75 .5 -42 19.75 .5 -42
4 16 25.75 0 -42 25.75 0 -40 24.25 0 -40 24.25 0 -42
4 16 19.75 0 -42 19.75 0 -48 25.75 0 -48 25.75 0 -46
4 16 19.75 0 -42 25.75 0 -46 25.75 0 -45 24.25 0 -42
3 16 25.75 0 -42 24.25 0 -42 25.75 0 -43
3 16 25.75 0 -43 24.25 0 -42 25.75 0 -45
0 // Letter S
0 BFC INVERTNEXT
1 16 27.75 .5 -42 0 0 -2 0 -.5 0 2 0 0 1-4cylo.dat
1 16 27.75 .5 -42 0 0 -2 0 1 0 2 0 0 1-4chrd.dat
1 16 27.75 0 -42 0 0 -2 0 1 0 2 0 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 32.25 0 -41 0 0 4.5 0 .5 0 -1 0 0 box4-4a.dat
1 16 27.75 0 -43 -2 0 0 0 1 0 0 0 -2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 27.75 .5 -43 -2 0 0 0 -.5 0 0 0 -2 1-4cylo.dat
1 16 27.75 .5 -43 -2 0 0 0 1 0 0 0 -2 1-4chrd.dat
1 16 26.75 .5 -42.5 -1 0 0 0 -.5 0 0 0 -.5 box3u6.dat
0 BFC INVERTNEXT
1 16 31.25 0 -44 -3.5 0 0 0 .5 0 0 0 -1 box3u8p.dat
1 16 34.75 0 -45 2 0 0 0 1 0 0 0 2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 34.75 .5 -45 2 0 0 0 -.5 0 0 0 2 1-4cylo.dat
1 16 34.75 .5 -45 2 0 0 0 1 0 0 0 2 1-4chrd.dat
0 BFC INVERTNEXT
1 16 34.75 .5 -46 0 0 2 0 -.5 0 -2 0 0 1-4cylo.dat
1 16 34.75 .5 -46 0 0 2 0 1 0 -2 0 0 1-4chrd.dat
1 16 34.75 0 -46 0 0 2 0 1 0 -2 0 0 1-4ndis.dat
1 16 35.75 .5 -45.5 1 0 0 0 -.5 0 0 0 -.5 box3u6.dat
0 BFC INVERTNEXT
1 16 30.25 0 -47 0 0 -4.5 0 .5 0 1 0 0 box4-4a.dat
4 16 27.75 0 -42 34.75 0 -43 36.75 0 -43 36.75 0 -42
3 16 27.75 0 -43 34.75 0 -43 27.75 0 -42
4 16 34.75 0 -46 27.75 0 -45 25.75 0 -45 25.75 0 -46
3 16 27.75 0 -45 34.75 0 -46 34.75 0 -45
3 16 36.75 0 -43 36.75 0 -45 60 0 -60
2 24 .75 .5 -43 .75 0 -43
2 24 .75 0 -42 .75 .5 -42
3 16 9.75 .5 -40 9.75 .5 -42 11.1642 .5 -43.4142
3 16 -34.75 .5 -42 -34.75 .5 -40 -36.75 .5 -42
3 16 -34.75 .5 -43 -36.75 .5 -43 -34.75 .5 -45
3 16 -27.75 .5 -43 -27.75 .5 -45 -25.75 .5 -45
3 16 -27.75 .5 -46 -27.75 .5 -48 -25.75 .5 -46
3 16 -15.25 .5 -40 -15.25 .5 -42 -13.25 .5 -42
3 16 -13.25 .5 -43 -15.25 .5 -43 -15.25 .5 -45
3 16 -9.75 .5 -40 -11.75 .5 -42 -9.75 .5 -42
3 16 -2.75 .5 -40 -2.75 .5 -42 -.75 .5 -42
3 16 -9.75 .5 -46 -11.75 .5 -46 -9.75 .5 -48
3 16 -2.75 .5 -46 -2.75 .5 -48 -.75 .5 -46
3 16 27.75 .5 -40 25.75 .5 -42 27.75 .5 -42
3 16 27.75 .5 -43 25.75 .5 -43 27.75 .5 -45
3 16 34.75 .5 -43 34.75 .5 -45 36.75 .5 -45
3 16 34.75 .5 -46 34.75 .5 -48 36.75 .5 -46
Status:
Needs More Votes (F)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
None
2025-05-26 14:17:50
could use chrd to reduce vertices
Edge line on bottom of R shouldn't be there.
2025-05-26 15:39:55
Same for left side.
2025-05-26 17:00:01
only some cylc should be replaced with cylo+chrd, mostly in the S
2025-05-26 18:57:27
2025-05-26 19:10:50
you missed the suggestion...
the idea was to get rid of the small box prims at the rounded ends of the S
additional center vertex at the front to improve triangulation?
the idea was to get rid of the small box prims at the rounded ends of the S
additional center vertex at the front to improve triangulation?
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
Jeff Jones,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
