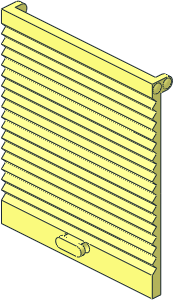

Door 1 x 4 x 4 Lift
File Header:
0 Door 1 x 4 x 4 Lift 0 Name: 6155.dat 0 Author: Philippe Hurbain [Philo] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02 0 !HISTORY 2025-06-05 [GeraldLasser] Reworked, shortened top and made slightly narrower, Added Bumps
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6155s02.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\6155s02.dat 0 // Centre Area 1 16 0 1.25 -6 35.5 0 0 0 2.75 -1 0 0 -1 box2-5.dat 1 16 0 7 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-7.dat 1 16 0 11 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-5.dat 1 16 0 15 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-7.dat 1 16 0 19 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-5.dat 1 16 0 23 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-7.dat 1 16 0 27 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-5.dat 1 16 0 31 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-7.dat 1 16 0 35 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-5.dat 1 16 0 39 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-7.dat 1 16 0 43 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-5.dat 1 16 0 47 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-7.dat 1 16 0 51 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-5.dat 1 16 0 55 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-7.dat 1 16 0 59 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-5.dat 1 16 0 63 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-7.dat 1 16 0 67 -5 35.5 0 0 0 1 -1 0 -1 -1 box2-5.dat 1 16 0 80 -5 35.5 0 0 0 -1 0 0 0 2 rect.dat 4 16 4 75 -7 -4 75 -7 -35.5 80 -7 35.5 80 -7 1 16 0 75 -8 -4 0 0 0 -1 0 0 0 1 rect3.dat 1 16 0 73 -9 -4 0 0 0 0 -2 0 -2 0 box3u10p.dat 1 16 0 71 -8 -4 0 0 0 1 0 0 0 1 rect3.dat 4 16 -4 71 -7 4 71 -7 36 69 -5 -36 69 -5 0 // Back Side 4 16 -2 75 -3 2 75 -3 35.5 80 -3 -35.5 80 -3 4 16 2 73 -3 2 75 -3 -2 75 -3 -2 73 -3 4 16 2 73 -3 -2 73 -3 -2 71 -3 2 71 -3 4 16 2 71 -3 -2 71 -3 -33 2.5 -3 33 2.5 -3 1 16 0 0 -3 -33 0 0 0 0 -2.5 0 -1 0 rect3.dat 4 16 33 -2.5 -3 -33 -2.5 -3 -35.5 -2.5 -7 35.5 -2.5 -7
Status:
Not releaseable Needs 2 More Votes (F) Needs 2 More Votes (F)
This part has the following automated holds from the Parts Tracker
Current Votes:

None

Official parents and subparts
Part Events:
Archived Part Events:
Gerald Lasser [GeraldLasser]
Part Library Admin
initially submitted the part.
2025-06-05 19:46:51
Added glass holder holes to 6154 and added 40527 for door only version
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2025-06-05 19:51:35
currently no Obsoleting is required.

However this one has a bad origin, the origin should better be at the front dimple, as the back dimple is used to fix the door in the position.

Should we change the origin? that would make it a "b" version...
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2025-06-05 20:18:09
Imho obsoleting should be avoided as much as possible...
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-06-05 20:27:37
front bump is the hinge -> should be origin -> obsolete
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2025-06-05 20:53:58
No overall mechanical change -> no obsoleting.
Magnus Forsberg [MagFors]
Part Library Admin
edited the part header.
2025-06-05 20:56:33
Header Edits

history:
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2025-06-05 [GeraldLasser] Reworked, shoretned top and made slightly narrowwer, Added Bumps
to
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2025-06-05 [GeraldLasser] Reworked, shortned top and made slightly narrower, Added Bumps

Comment:
Corrected spelling
Magnus Forsberg [MagFors]
Part Library Admin
edited the part header.
2025-06-05 20:58:00
Header Edits

history:
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2025-06-05 [GeraldLasser] Reworked, shortned top and made slightly narrower, Added Bumps
to
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2025-06-05 [GeraldLasser] Reworked, shortened top and made slightly narrower, Added Bumps

Comment:
Again
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-06-05 21:15:24
but moving the origin is a reason, and the origin should be at the hinge...
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2025-06-05 21:20:13
I agree with Philo, we should avoid obsoleting, but here the rotation point is "off grid", at z=-4.75.
Hard to set even with LDCad. I think we should obsolete.
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2025-06-05 22:25:43
I am also very much against obsoleting as it gets the overall references mixed up, but the rotation point is the most compelling reason here.
Peter Blomberg [WUIt]
Part Header Editor
made the following comment.
2025-10-31 01:37:23
I'm not giving certify until the origin has been fixed.
