File Detail parts/1941.dat

Unofficial File parts/1941.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

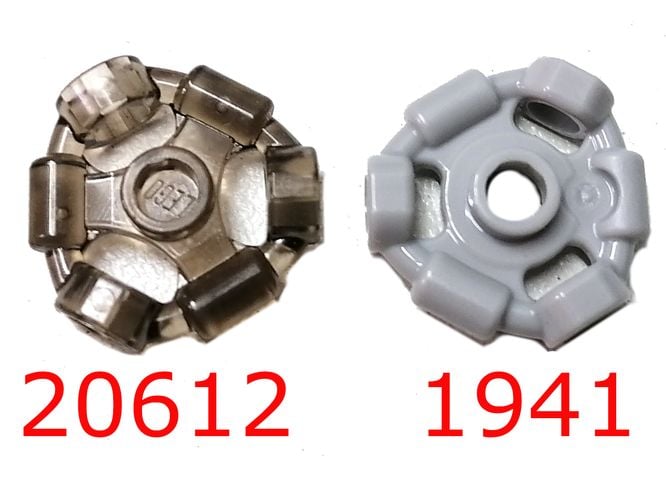

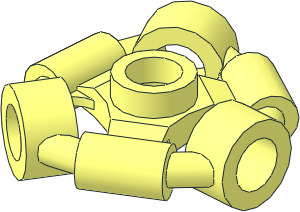

Holder Ring with 3 Bars and 3 Bar Tubes - Open Stud

File Header:

0 Holder Ring with  3 Bars and  3 Bar Tubes - Open Stud
0 Name: 1941.dat
0 Author: Franklin W. Cain [fwcain]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Holes at Y=2, X=19.2
0 !HELP Bars at Y=2, Z=14.4

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Accessory

0 !KEYWORDS Brickowl 1068423, Hexagon, Triangle

0 !HISTORY 2025-06-06 [fwcain] Adapted from 20612
0 !HISTORY 2025-09-11 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-12-06 [MagFors] File preparation for LDraw Parts Tracker
