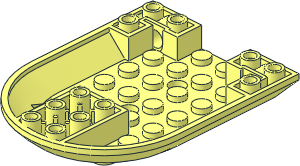

0 Plane Bottom 6 x 8 x 1 with Two Holes
0 Name: 5123.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\5123s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\5123s01.dat
1 16 0 20 40 1 0 0 0 -1 0 0 0 -1 stud4h.dat
1 16 0 20 60 1 0 0 0 -1 0 0 0 -1 stud4.dat
1 16 0 20 0 1 0 0 0 -1 0 0 0 -1 stud4h.dat
1 16 0 20 -40 1 0 0 0 -1 0 0 0 -1 stud4a.dat
1 16 0 20 -40 8 0 0 0 -1 0 0 0 -8 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 20 -40 6 0 0 0 -12 0 0 0 -6 4-4cyli.dat
1 16 0 16 -40 9 0 0 0 -8 0 0 0 -9 4-4cylo.dat
1 16 0 8 -40 6 0 0 0 -1 0 0 0 -6 4-4edge.dat
1 16 0 8 -40 3 0 0 0 1 0 0 0 -3 4-4ring2.dat
1 16 0 20 -20 1 0 0 0 -1 0 0 0 -1 stud4.dat
1 16 0 20 20 1 0 0 0 -1 0 0 0 -1 stud4.dat
3 16 -20 16 80 0 16 66 20 16 80
4 16 -20 16 80 20 16 80 40 24 80 -40 24 80
3 16 23.0616 20 76 0 20 68 -23.0616 20 76
4 16 37 24 76 23.0616 20 76 -23.0616 20 76 -37 24 76
4 16 37 24 76 -37 24 76 -40 24 80 40 24 80
3 16 20 16 -20 0 16 -6 -20 16 -20
1 16 0 8 -20 0 0 -20 8 0 0 0 -1 0 rect.dat
4 16 17 0 -23 20 0 -20 -20 0 -20 -17 0 -23
1 16 0 8 -23 0 0 -17 -8 0 0 0 1 0 rect.dat
3 16 -17 16 -23 0 16 -31 17 16 -23
2 24 20 16 80 -20 16 80
2 24 40 24 80 -40 24 80
2 24 37 24 76 -37 24 76
2 24 -23.0616 20 76 23.0616 20 76
1 16 -30 16 10 0 0 -1 0 1 0 1 0 0 stug-1x5.dat
1 16 -10 16 30 0 0 -1 0 1 0 1 0 0 stug-1x5.dat
1 16 10 16 30 0 0 -1 0 1 0 1 0 0 stug-1x5.dat
1 16 30 16 10 0 0 -1 0 1 0 1 0 0 stug-1x5.dat
5 24 20 3 -72.2236 20 0 -20 20 9.5 -65.4084 19.9731 0 -72.2327
5 24 -20 3 -72.2236 -20 0 -20 -20 9.5 -65.4084 -19.9731 0 -72.2327
5 24 0 4 -80 0 9.393 -75.109 -7.83 4 -79.484 7.83 4 -79.484
5 24 0 15.408 -68.315 0 20 -60 -5.3505 20 -59.6474 5.3505 20 -59.6474
5 24 0 12.75 -65.5 0 3 -76 -7.308 3 -75.5184 7.308 3 -75.5184
5 24 17 0 -23 17 3 -73.2405 17 16 -55.2945 16.9741 0 -73.2493
5 24 14.4928 3 -74.0904 14.4928 0 -74.0904 7.308 3 -75.5184 16.9741 0 -73.2493
5 24 0 16 -59 0 12.75 -65.5 -6.0356 12.75 -65.07 6.0356 12.75 -65.07
5 24 0 9.393 -75.109 0 15.408 -68.315 -7.575 15.393 -67.702 7.575 15.393 -67.702
5 24 7.308 0 -75.5184 7.308 3 -75.5184 0 3 -76 14.4928 0 -74.0904
5 24 -14.4928 0 -74.0904 -14.4928 3 -74.0904 -7.308 3 -75.5184 -16.9741 0 -73.2493
5 24 0 3 -76 0 0 -76 7.308 0 -75.5184 -7.308 0 -75.5184
5 24 -7.308 3 -75.5184 -7.308 0 -75.5184 0 3 -76 -14.4928 0 -74.0904
5 24 -17 0 -23 -17 3 -73.2405 -17 16 -55.2945 -16.9741 0 -73.2493
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
2025-06-07 16:15:41
2025-07-30 07:02:25
This part appears in MLCad (and probably also in LDview) with holes where you can see through the bottom. It is a pretty common part since it is in the top 1500 most common parts from sets this year (2025). I would love to see it fixed.
2025-07-30 11:20:29
Don't get it.
What do you think needs to be fixed?
What do you think needs to be fixed?
2025-07-30 14:01:45
AFAIK The part has all the holes, did you check the 3D view? Click on the part image
2025-07-30 14:49:28
I can't see anything really wrong either, except that the front stud holes are missing an edge line
(1 16 10 16 -50 4 0 0 0 1 0 0 0 4 4-4edge.dat and 1 16 10 16 -30 4 0 0 0 1 0 0 0 4 4-4edge.dat in s01)
(1 16 10 16 -50 4 0 0 0 1 0 0 0 4 4-4edge.dat and 1 16 10 16 -30 4 0 0 0 1 0 0 0 4 4-4edge.dat in s01)
2025-07-31 03:58:32
When I load the file in MLCad, I get the error "File s\5117s03.dat not found! Continue loading?" If I press yes, I also see the error "File s\5124s02.dat not found! Continue loading?"
To double check that this issue is not on my side, I have:
1. Re-installed the 2025-07 version of the "Complete LDraw.org Library Windows installer (LDrawParts.exe)".
2. Downloaded the latest unofficial parts (https://library.ldraw.org/library/unofficial/ldrawunf.zip) and extracted them to "C:\Users\Public\Documents\LDraw\Unofficial"
3. File > Scan Parts in MLCad.
To double check that this issue is not on my side, I have:
1. Re-installed the 2025-07 version of the "Complete LDraw.org Library Windows installer (LDrawParts.exe)".
2. Downloaded the latest unofficial parts (https://library.ldraw.org/library/unofficial/ldrawunf.zip) and extracted them to "C:\Users\Public\Documents\LDraw\Unofficial"
3. File > Scan Parts in MLCad.
2025-07-31 04:01:14
you can see how it renders with the missing files at: https://brickarchitect.com/content/temp/5123_rendering_error.png
2025-07-31 06:23:48
Looks like you need to update your official library.
Do you have parts 5117 and 5124? These, and their subfiles are official, and the subfiles are used by 5123.
Do you have parts 5117 and 5124? These, and their subfiles are official, and the subfiles are used by 5123.
2025-07-31 07:26:46
Thank you Magnus. I do not know why these are missing since I keep my libraries up to date and just installed the 2025-07 version of the "Complete LDraw.org Library Windows installer" earlier today, but I will try a full uninstall/reinstall tomorrow.
2025-07-31 08:00:48
I can see both s\5117s03.dat and s\5124s02.dat in the latest COMPLETE.ZIP
2025-07-31 10:08:57
did you try the "download zip file" at the top of this page? that should contain all subparts and prims needed...
