Unofficial File parts/7302.dat
Part Attributes:
File Header:

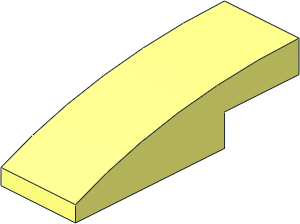

0 Slope Brick Curved 3 x 1
0 Name: 7302.dat
0 Author: Jeff Jones [notmaster]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7302s01.dat
1 16 10 40.972 30 0 -20 0 -28.972 0 -28.972 -60 0 60 48\1-8cyli.dat
Status:
Awaiting Admin Review (CCN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| GeraldLasser | Certify |
| Cheenzo | Certify |
Official parents and subparts
Part Events:
2025-06-28 13:56:01
gridpos shall be like 50590, 61678
should the sides get subparted?
i dont think the origin should be floating above... (should be flush to the topmost point)
why the difference in the decimals here? 48.972 -28.9719
why the difference in the decimals here? 48.972 -28.9719
2025-07-01 19:11:32
That's what I actually meant, 0 on the top of the part, like the others
2025-07-06 12:24:03
no, not at the end, centered to the outer borders at the same level as now
decimals still different: .972 .9719
decimals still different: .972 .9719
2025-07-07 21:49:27
2025-07-07 22:26:18
2025-07-10 12:03:55
If you use rect1 here include the two edges to form a rect3
1 16 0 6 -2 0 0 6 -2 -1 0 8 0 0 rect1.dat
2 24 -6 8 -10 -6 4 6
2 24 6 8 -10 6 4 6
->
1 16 0 6 -2 -6 0 0 0 -1 -2 0 0 8 rect3.dat
or even include
1 16 0 10 6 0 0 6 6 0 0 0 1 0 rect2p.dat
to form:
0 BFC INVERTNEXT
1 10 0 12 -2 -6 0 0 0 -6 -2 0 0 8 box2-7.dat
Merge those:
3 16 -10 12 -30 -10 8 10 -10 16 10
3 16 -10 12 -30 -10 16 10 -10 16 -30
3 16 10 8 10 10 12 -30 10 16 10
3 16 10 16 10 10 12 -30 10 16 -30
to
4 16 -10 8 10 -10 16 10 -10 16 -30 -10 12 -30
4 16 10 16 -30 10 16 10 10 8 10 10 12 -30
1 16 0 6 -2 0 0 6 -2 -1 0 8 0 0 rect1.dat
2 24 -6 8 -10 -6 4 6
2 24 6 8 -10 6 4 6
->
1 16 0 6 -2 -6 0 0 0 -1 -2 0 0 8 rect3.dat
or even include
1 16 0 10 6 0 0 6 6 0 0 0 1 0 rect2p.dat
to form:
0 BFC INVERTNEXT
1 10 0 12 -2 -6 0 0 0 -6 -2 0 0 8 box2-7.dat
Merge those:
3 16 -10 12 -30 -10 8 10 -10 16 10
3 16 -10 12 -30 -10 16 10 -10 16 -30
3 16 10 8 10 10 12 -30 10 16 10
3 16 10 16 10 10 12 -30 10 16 -30
to
4 16 -10 8 10 -10 16 10 -10 16 -30 -10 12 -30
4 16 10 16 -30 10 16 10 10 8 10 10 12 -30
2025-07-10 12:05:39
2025-07-11 16:34:32
2025-09-18 16:32:25
You need to change the description to distinguish it from 50950.
Maybe; Slope Brick Curved 3 x 1 x 0.667
Maybe; Slope Brick Curved 3 x 1 x 0.667
