Unofficial File parts/32124.dat
View official version of part
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

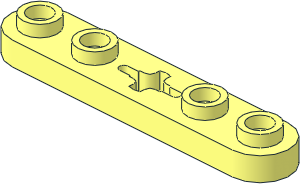

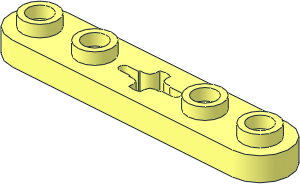

Technic Rotor 2 Blade with 4 Studs
File Header:
0 Technic Rotor 2 Blade with 4 Studs 0 Name: 32124.dat 0 Author: Rene Rechthaler [Blechtaler] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS plate 1 x 5 0 !HISTORY 1998-09-15 [PTadmin] Official Update 1998-08 0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement 0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01 0 !HISTORY 2008-07-07 [guyvivan] Made BFC compliant (2004-07-20) 0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02 0 !HISTORY 2025-07-05 [Jaco] Add keyword 0 !HISTORY 2025-07-07 [Blechtaler] complete rework, original by [El-Lutzo] 0 !HISTORY 2025-07-07 [Blechtaler] added axle slots
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32124s01.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\32124s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\32124s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32124s01.dat 1 16 0 0 0 0 0 1 0 8 0 1 0 0 axlehol5.dat 0 // round ends 1 16 40 8 0 0 0 2 0 -1 0 2 0 0 2-4ring3.dat 1 16 40 8 0 0 0 2 0 -1 0 2 0 0 2-4ring4.dat 1 16 -40 8 0 0 0 -2 0 -1 0 2 0 0 2-4ring3.dat 1 16 -40 8 0 0 0 -2 0 -1 0 2 0 0 2-4ring4.dat 0 BFC INVERTNEXT 1 16 40 4 0 0 0 6 0 4 0 6 0 0 2-4cylo.dat 1 16 40 0 0 0 0 10 0 8 0 10 0 0 2-4cylc.dat 1 16 40 4 0 0 0 6 0 -1 0 6 0 0 2-4chrd.dat 0 BFC INVERTNEXT 1 16 -40 4 0 0 0 -6 0 4 0 6 0 0 2-4cylo.dat 1 16 -40 0 0 0 0 -10 0 8 0 10 0 0 2-4cylc.dat 1 16 -40 4 0 0 0 -6 0 -1 0 6 0 0 2-4chrd.dat 0 // straight 1 16 30 0 0 1 0 0 0 1 0 0 0 1 stug2-1x2.dat 1 16 -30 0 0 1 0 0 0 1 0 0 0 1 stug2-1x2.dat 1 16 30 4 0 1 0 0 0 -1 0 0 0 1 stud3.dat 1 16 -30 4 0 1 0 0 0 -1 0 0 0 1 stud3.dat 1 16 0 4 10 40 0 0 0 0 4 0 -1 0 rect2p.dat 1 16 0 4 -10 -40 0 0 0 0 4 0 1 0 rect2p.dat 0 BFC INVERTNEXT 1 16 27 8 0 13 0 0 0 -4 0 0 0 6 box3u8p.dat 0 BFC INVERTNEXT 1 16 -27 8 0 13 0 0 0 -4 0 0 0 6 box3u8p.dat 1 16 12.5 4 0 0 0 1.5 0 4 0 6 0 0 box3u4p.dat 1 16 -12.5 4 0 0 0 1.5 0 4 0 6 0 0 box3u4p.dat
Status:
Not releaseable Needs 1 More Vote (CF) Needs 1 More Vote (CF)
This part has the following automated holds from the Parts Tracker
Current Votes:
User Vote
WUIt Certify
Official parents and subparts
Part Events:
Archived Part Events:
Jaco van der Molen [Jaco]
Part Reviewer
initially submitted the part.
2025-07-05 16:31:32
Add keywords
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Hold.
2025-07-05 17:05:25
whie it is up on the tracker, some errors could be fixed:
-the ring around the axlehole overlaps other faces
-some t-junk
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2025-07-05 20:58:18
Needs a complete rework due to 2.0 licence.
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-07-05 21:12:12
who wants to do that?
Jeff Jones [notmaster]
Part Author
made the following comment.
2025-07-05 21:27:00
anyone know the ldu of the box that contains axle
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-07-05 21:54:21
also misses the axle hole side slots
Gerald Lasser [GeraldLasser]
Part Library Admin
edited the part header.
2025-07-05 22:32:39
Header Edits

history:
0 !HISTORY 1998-09-15 [PTadmin] Official Update 1998-08
0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [guyvivan] Made BFC compliant (2004-07-20)
0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02
0 !HISTORY 2009-09-03 [Jaco] Add keyword
to
0 !HISTORY 1998-09-15 [PTadmin] Official Update 1998-08
0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [guyvivan] Made BFC compliant (2004-07-20)
0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02
0 !HISTORY 2025-07-05 [Jaco] Add keyword

Comment:
Corrected History date
Rene Rechthaler [Blechtaler]
Part Header Editor
submitted a new version of the part.
2025-07-07 15:42:15
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-07-07 15:47:17
copied the slot from the 3-blade rotor
Peter Blomberg [WUIt]
Part Header Editor
posted a vote of Hold.
2025-10-31 01:03:13
There seems to be some edge lines and cond lines missing.
2 4 5.6023 8 -2 5.6023 0 -2
5 24 -8.3151 4 3.4442 -8.3151 8 3.4442 -6.6071 8 6 -8.7017 8 1.5
2 24 -5.6023 0 2 -5.6023 8 2
5 24 -8.3151 4 -3.4442 -8.3151 8 -3.4442 -8.7017 8 -1.5 -6.6071 8 -6
5 24 8.3151 4 -3.4442 8.3151 8 -3.4442 6.6071 8 -6 8.7017 8 -1.5
2 24 5.6023 0 2 5.6023 8 2
2 24 -5.6023 0 -2 -5.6023 8 -2
5 24 8.3151 4 3.4442 8.3151 8 3.4442 6.6071 8 6 8.7017 8 1.5
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-10-31 12:09:46
fixed in the quarter subpart
Peter Blomberg [WUIt]
Part Header Editor
cancelled their vote.
2025-10-31 16:16:38
Peter Blomberg [WUIt]
Part Header Editor
posted a vote of Certify.
2025-10-31 16:23:48
