Unofficial File parts/s/6694s01.dat
File Header:

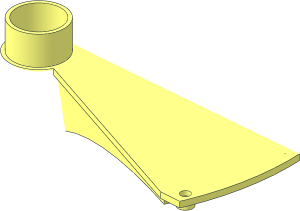

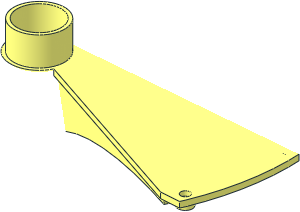

0 ~Scala Staircase - Middle and Bottom Step Common Geometry
0 Name: s\6694s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6693s01.dat
0 // Centre for Stacking
1 16 0 -25 0 1 0 0 0 1 0 0 0 1 48\4-4ring19.dat
1 16 0 -25 0 2 0 0 0 1 0 0 0 2 48\4-4ring10.dat
1 16 0 0 0 22 0 0 0 -25 0 0 0 22 48\4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 0 19 0 0 0 -25 0 0 0 19 48\4-4cylo.dat
1 16 8 0 8 3 0 0 0 1 0 0 0 3 4-4ndis.dat
1 16 0 0 0 0 0 -19 0 1 0 19 0 0 48\2-4chrd.dat
1 16 0 0 0 0 0 19 0 1 0 -19 0 0 48\1-4chrd.dat
1 16 0 0 0 0 0 19 0 1 0 19 0 0 48\1-8chrd.dat
1 16 0 0 0 19 0 0 0 1 0 0 0 19 48\1-8chrd.dat
3 16 5 0 11 0 0 19 5 0 8
4 16 5 0 8 0 0 19 0 0 -19 5 0 5
3 16 8 0 5 5 0 5 0 0 -19
4 16 8 0 5 0 0 -19 19 0 0 11 0 5
3 16 11 0 5 19 0 0 11 0 8
4 16 13.4349 0 13.4349 11 0 11 11 0 8 19 0 0
4 16 13.4349 0 13.4349 0 0 19 8 0 11 11 0 11
3 16 8 0 11 0 0 19 5 0 11
1 16 0 3 0 0 0 -22 0 -1 0 22 0 0 48\2-4chrd.dat
1 16 0 3 0 0 0 22 0 -1 0 -22 0 0 48\1-4chrd.dat
1 16 0 3 0 0 0 22 0 -1 0 22 0 0 48\1-8chrd.dat
1 16 0 3 0 22 0 0 0 -1 0 0 0 22 48\1-8chrd.dat
0 BFC INVERTNEXT
1 16 8 0 8 3 0 0 0 3 0 0 0 3 4-4cylo.dat
1 16 8 3 8 3 0 0 0 -1 0 0 0 3 4-4ndis.dat
4 16 8 3 5 11 3 5 22 3 0 0 3 -22
3 16 22 3 0 11 3 5 11 3 8
4 16 15.5562 3 15.5562 22 3 0 11 3 8 11 3 11
4 16 11 3 11 8 3 11 0 3 22 15.5562 3 15.5562
3 16 0 3 22 8 3 11 5 3 11
3 16 0 3 22 5 3 11 5 3 8
4 16 5 3 8 5 3 5 0 3 -22 0 3 22
3 16 5 3 5 8 3 5 0 3 -22
1 14 0 5 0 25 0 0 0 1 0 0 0 25 48\1-6edge.dat
1 14 0 5 0 25 0 0 0 1 0 0 0 -25 48\1-16edge.dat
0 // Adapter to Top Step and Step Top
1 16 0 0 0 0 0 -2 0 1 0 2 0 0 48\2-4ring11.dat
1 16 0 0 0 0 0 2 0 1 0 -2 0 0 48\3-16ring11.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 48\5-24ring24.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 48\1-4ring24.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 48\3-16ring24.dat
1 16 0 0 0 22 0 0 0 1 0 0 0 22 48\1-4ndis.dat
1 16 0 0 0 22 0 0 0 1 0 0 0 -22 48\1-16tang.dat
1 16 0 0 0 0 0 -25 0 1 0 -25 0 0 48\1-4edge.dat
1 16 0 0 0 0 0 25 0 1 0 -25 0 0 48\3-16edge.dat
3 16 22 0 -4.3758 20.3258 0 -8.4194 22.1736 0 -9.1848
3 16 22.1736 0 -9.1848 23.0975 0 -9.5675 22 0 -4.3758
4 16 23.0975 0 -9.5675 206.87855 0 19.01731 22 0 0 22 0 -4.3758
3 16 186.38359 0 -74 203.88359 0 -74 23.0975 0 -9.5675
3 16 203.88359 0 -74 194.26461 0 -66.37721 23.0975 0 -9.5675
4 16 22 0 22 22 0 0 206.87855 0 19.01731 215.46064 0 25
3 16 206.87855 0 19.01731 23.0975 0 -9.5675 194.26461 0 -66.37721
0 // Step Side
4 16 203.88359 0 -74 186.38359 0 -74 186.38359 5 -74 203.88359 5 -74
4 16 186.38359 5 -74 186.38359 0 -74 23.0975 0 -9.5675 23.0975 5 -9.5675
2 24 23.0975 0 -9.5675 186.38359 0 -74
2 24 23.0975 5 -9.5675 186.38359 5 -74
2 24 186.38359 0 -74 203.88359 0 -74
2 24 203.88359 5 -74 186.38359 5 -74
2 24 186.38359 0 -74 186.38359 5 -74
2 24 23.0975 0 -9.5675 23.0975 5 -9.5675
0 // Step Bottom
3 16 186.38359 5 -74 191.32484 5 -67.5949 203.88359 5 -74
4 16 197.46064 5 21 191.32484 5 -67.5949 186.38359 5 -74 23.0975 5 -9.5675
3 16 197.46064 5 21 23.0975 5 -9.5675 25 5 0
0 // Support Curved
3 16 23.90325 5 -7.19055 36.7755 40.5136 -12.26886 53.63398 32.8462 -18.91979
3 16 23.90325 5 -7.19055 53.63398 32.8462 -18.91979 72.83663 26.1148 -26.49553
3 16 23.90325 5 -7.19055 72.83663 26.1148 -26.49553 94.09042 20.452 -34.88048
3 16 23.90325 5 -7.19055 94.09042 20.452 -34.88048 117.00467 15.9358 -43.9205
3 16 23.90325 5 -7.19055 117.00467 15.9358 -43.9205 141.2082 12.6598 -53.46917
4 16 187.30123 5 -71.6745 23.90325 5 -7.19055 141.2082 12.6598 -53.46917 166.27127 10.6708 -63.35693
3 16 187.30123 10 -71.6745 187.30123 5 -71.6745 166.27127 10.6708 -63.35693
4 16 188.76945 5 -67.95371 187.30123 5 -71.6745 187.30123 10 -71.6745 188.76945 10 -67.95371
3 16 38.24345 40.5136 -8.54796 24.78655 5 -3.239 55.10193 32.8462 -15.19889
3 16 55.10193 32.8462 -15.19889 24.78655 5 -3.239 74.30458 26.1148 -22.77463
3 16 74.30458 26.1148 -22.77463 24.78655 5 -3.239 95.55837 20.452 -31.15958
3 16 95.55837 20.452 -31.15958 24.78655 5 -3.239 118.47262 15.9358 -40.1996
3 16 118.47262 15.9358 -40.1996 24.78655 5 -3.239 142.67615 12.6598 -49.74827
3 16 142.67615 12.6598 -49.74827 24.78655 5 -3.239 167.73922 10.6708 -59.63603
4 16 24.78655 5 -3.239 188.76945 5 -67.95371 188.76945 10 -67.95371 167.73922 10.6708 -59.63603
4 16 118.47262 15.9358 -40.1996 142.67615 12.6598 -49.74827 141.2082 12.6598 -53.46917 117.00467 15.9358 -43.9205
4 16 95.55837 20.452 -31.15958 118.47262 15.9358 -40.1996 117.00467 15.9358 -43.9205 94.09042 20.452 -34.88048
4 16 74.30458 26.1148 -22.77463 95.55837 20.452 -31.15958 94.09042 20.452 -34.88048 72.83663 26.1148 -26.49553
4 16 55.10193 32.8462 -15.19889 74.30458 26.1148 -22.77463 72.83663 26.1148 -26.49553 53.63398 32.8462 -18.91979
4 16 167.73922 10.6708 -59.63603 188.76945 10 -67.95371 187.30123 10 -71.6745 166.27127 10.6708 -63.35693
4 16 142.67615 12.6598 -49.74827 167.73922 10.6708 -59.63603 166.27127 10.6708 -63.35693 141.2082 12.6598 -53.46917
4 16 38.24345 40.5136 -8.54796 55.10193 32.8462 -15.19889 53.63398 32.8462 -18.91979 36.7755 40.5136 -12.26886
2 24 187.30123 5 -71.6745 188.76945 5 -67.95371
2 24 188.76945 5 -67.95371 24.78655 5 -3.239
2 24 187.30123 10 -71.6745 188.76945 10 -67.95371
2 24 38.24345 40.5136 -8.54796 55.10193 32.8462 -15.19889
2 24 55.10193 32.8462 -15.19889 74.30458 26.1148 -22.77463
2 24 74.30458 26.1148 -22.77463 95.55837 20.452 -31.15958
2 24 95.55837 20.452 -31.15958 118.47262 15.9358 -40.1996
2 24 118.47262 15.9358 -40.1996 142.67615 12.6598 -49.74827
2 24 142.67615 12.6598 -49.74827 167.73922 10.6708 -59.63603
2 24 167.73922 10.6708 -59.63603 188.76945 10 -67.95371
2 24 188.76945 10 -67.95371 188.76945 5 -67.95371
2 24 187.30123 5 -71.6745 187.30123 10 -71.6745
2 24 187.30123 10 -71.6745 166.27127 10.6708 -63.35693
2 24 166.27127 10.6708 -63.35693 141.2082 12.6598 -53.46917
2 24 141.2082 12.6598 -53.46917 117.00467 15.9358 -43.9205
2 24 117.00467 15.9358 -43.9205 94.09042 20.452 -34.88048
2 24 94.09042 20.452 -34.88048 72.83663 26.1148 -26.49553
2 24 72.83663 26.1148 -26.49553 53.63398 32.8462 -18.91979
2 24 53.63398 32.8462 -18.91979 36.7755 40.5136 -12.26886
5 24 74.30458 26.1148 -22.77463 72.83663 26.1148 -26.49553 95.55837 20.452 -31.15958 53.63398 32.8462 -18.91979
5 24 53.63398 32.8462 -18.91979 55.10193 32.8462 -15.19889 74.30458 26.1148 -22.77463 36.7755 40.5136 -12.26886
5 24 94.09042 20.452 -34.88048 95.55837 20.452 -31.15958 118.47262 15.9358 -40.1996 72.83663 26.1148 -26.49553
5 24 167.73922 10.6708 -59.63603 166.27127 10.6708 -63.35693 188.76945 10 -67.95371 141.2082 12.6598 -53.46917
5 24 142.67615 12.6598 -49.74827 141.2082 12.6598 -53.46917 117.00467 15.9358 -43.9205 167.73922 10.6708 -59.63603
5 24 117.00467 15.9358 -43.9205 118.47262 15.9358 -40.1996 142.67615 12.6598 -49.74827 94.09042 20.452 -34.88048
2 24 23.90325 5 -7.19055 187.30123 5 -71.6745
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Some weird parts :-)
Bad subfile number?
I thought I changed all references, but no...
2025-07-16 21:09:19
I feel sorry for them. Some sort of DIY flat pack.
https://lego.brickinstructions.com/lego_instructions/set/3290/Instructions
https://lego.brickinstructions.com/lego_instructions/set/3290/Instructions
2025-07-16 21:24:51
hillarious instructions :-D
2025-07-16 21:25:50
do we think we would get close to having the werid barbie like dolls from here on the tracker
