File Detail parts/s/19663s01.dat

Unofficial File parts/s/19663s01.dat

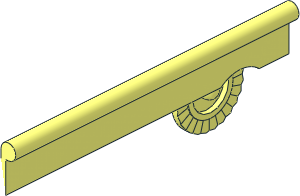

~Duplo Ladder 7 Rung with Locking Ring - Half

File Header:

0 ~Duplo Ladder 7 Rung with Locking Ring - Half
0 Name: s\19663s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\19663s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\19663s02.dat

1 16 48.25 -50 41.4 -6.25 0 0 0 0 -6.25 0 -240 0 3-4cylo.dat
2 24 46 -43.75 41.4 48.25 -43.75 41.4
1 16 48.25 -50 41.4 -6.25 0 0 0 0 -6.25 0 -1 0 3-4chrd.dat
3 16 46 -43.75 41.4 42 -50 41.4 48.25 -43.75 41.4
2 24 42 -43 41.4 42 -50 41.4
2 24 46 -19 41.4 46 -43.75 41.4
4 16 46 -19 41.4 42 -43 41.4 42 -50 41.4 46 -43.75 41.4
2 24 48.25 -43.75 -198.6 46 -43.75 -198.6
1 16 48.25 -50 -198.6 -6.25 0 0 0 0 -6.25 0 1 0 3-4chrd.dat
3 16 42 -50 -198.6 46 -43.75 -198.6 48.25 -43.75 -198.6
2 24 42 -50 -198.6 42 -43 -198.6
2 24 46 -43.75 -198.6 46 -19 -198.6
4 16 42 -50 -198.6 42 -43 -198.6 46 -19 -198.6 46 -43.75 -198.6
2 24 46 -43.75 41.4 46 -43.75 -198.6
4 16 46 -43.75 41.4 48.25 -43.75 41.4 48.25 -43.75 -198.6 46 -43.75 -198.6

4 16 46 -43.75 -198.6 46 -19 -198.6 46 -19 -41.4 46 -25 -15.22
4 16 46 -43.75 -198.6 46 -25 -15.22 46 -25 0 46 -43.75 41.4
3 16 46 -25 0 46 -25 15.22 46 -43.75 41.4
3 16 46 -43.75 41.4 46 -25 15.22 46 -19 41.4
2 24 46 -19 -41.4 46 -19 -198.6
3 16 42 -43 -194.4 42 -43 -198.6 42 -50 -198.6
3 16 42 -50 41.4 42 -43 41.4 42 -43 37.2
4 16 42 -50 41.4 42 -43 37.2 42 -43 -194.4 42 -50 -198.6

3 16 42 -19 -159.3 42 -19 -155.1 46 -19 -158.6
4 16 42 -19 -194.4 42 -19 -159.3 46 -19 -158.6 46 -19 -198.6
3 16 42 -19 -120 42 -19 -115.8 46 -19 -118.6
4 16 42 -19 -155.1 42 -19 -120 46 -19 -118.6 46 -19 -158.6
3 16 42 -19 -80.7 42 -19 -76.5 46 -19 -78.6
4 16 42 -19 -115.8 42 -19 -80.7 46 -19 -78.6 46 -19 -118.6
4 16 42 -19 -76.5 42 -19 -41.4 46 -19 -41.4 46 -19 -78.6

1 16 0 0 0 1 0 0 0 1 0 0 0 1 dhingepin1.dat
1 16 21 0 0 0 -1 0 0 0 19 -19 0 0 48\4-4aring.dat
1 16 21 0 0 0 1 0 19 0 0 0 0 -19 48\4-4edge.dat
1 16 21 0 0 0 -1.2 0 19 0 0 0 0 -19 48\4-4cyli.dat
1 16 19.8 0 0 0 1 0 -19 0 0 0 0 -19 48\1-8edge.dat
1 16 19.8 0 0 0 1 0 -19 0 0 0 0 19 48\1-8edge.dat

1 16 15.8 0 0 0 1 0 0 0 28 -28 0 0 2-4chrd.dat
3 16 15.8 0 28 15.8 0 -28 15.8 -29 0

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/19663s02.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2025-07-28 08:55:21
